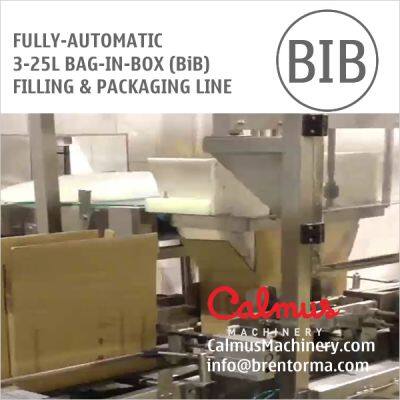

Fully-automatic Bag-in-Box (BiB) Filling and Carton Packaging Line
This Fully-automatic Bag-in-Box Filling and Packaging Line is especially designed for food packaging and widely used for packaging spring water, post mix syrup, edible oil and beverage. Certainly it also can be used for packaging liquid soap, motor oil, diesel exhaust fluid (AdBlue/DEF), engine coolant. Built in China, but at high quality level.
The filling and packaging line includes: Bag-in-Box Filling Machine, Carton Erector, Bag Inserter, Carton Sealer, Conveyors and other assistant equipment.
The whole line is fully-automatic. World famous brands of key components and many are imported. Made in China, but built at high quality level.
1. Fully-automatic Bag in Box Filling Machine
The Fully-automatic Bag in Box Filling Machine is especially for filling spouted bags with a wide range of liquids like drinking water, post mix syrup coke, edible oil and beverage. It features fully-automatic by employing PLC and touch screen control system. The whole process of continuous bags feed, decapping, vacuumization (optional), nitrogen injection (optional), filling, capping, cutting apart from continuous bags and transiting to the conveyor can be completed automatically, no human operation required.
This filling machine can cap various spigots including Vitop and Scholle's. It is designed with CIP (Clean in Place) function and pipeline connection. Grade 304 stainless steel body and 316L stainless steel fluid-contact parts.
Specifications:
Applicable bags: pre-cut continuous module or WEB type spouted bags, 2-25 litres.
Filling capacity:
450-510 bags/hour for 5 litres
360-400 bags/hour for 10 litres
250-270 bags/hour for 20 litres
Power: 1.0 kW
Compressed air: 6-8 bar, 500 NL/min
2. Hot Melt Glue Carton Erector (Erecting carton and sealing bottom)
Erecting capacity: 6-7 cartons/min
Coated carbon steel construction
Hot Melt Glue System: Nordson
3. Bag Inserter (Inserting filled bags in cartons)
Inserting capacity: 15 bags/min
Grade 304 stainless steel body
4. Hot Melt Glue Box Sealer (Closing and sealing top)
Sealing capacity: 10 cartons/min
Coated Carbon steel construction
Hot Melt Glue System: Nordson
5. Conveying Systems
Grade 304 stainless steel
>>
