Product Details
Product Description
Product Description
Delivery Time:500 pcs per month
Certification:ISO

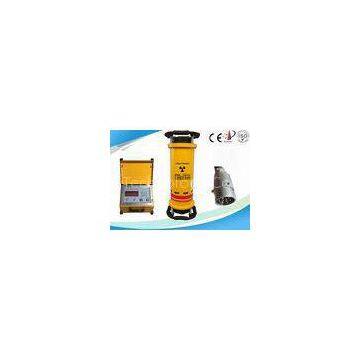

Ceramic Tube X Ray Non Destructive Radiography Testing Equipment High Frequency
Performance Features:
A. Controller
1. The special design of high frequency technology can avoid the interference by power spikes. Even though the voltage changes, it can still work.
2. Take the isolation technology of the low voltage and the high voltage to ensure the controller working steady.
3. Posses the reliable "time-delayed" function, suitable to operate in the open field.
4. High degree of automation with the function of trouble shooting and indication.
5. Controller adopts design of hardware with a wide operative range, having the advantage of long service and low failure rate.
6. Strictly comply with 1:1 working/resting regulation, eliminating the disoperation.
B. Generator
1. Safe and reliable generator adopts design of SF6 gaseous insulator, grounded-anode, and air fan cooling.
2. High purity and high density aluminum radiator is specially designed for our instrument, High temperature installation technology is adopted to improve 30% heat radiation.
3. The HV coils made by imported enamel wire are applied in the X-ray generator, so as to make the quality of the complete equipment improved a great deal.
Note:
1. XXG: With ceramic directional X-ray tube
2. XXGH: With ceramic flat target panoramic X-ray tube
3. XXGHZ: With ceramic conical target panoramic X-ray tube
Working Conditions
Work Environment
Cooling:air
Working method:force1:1
(AC)Input power:185~245V
Test Condition
Inspection material:A3 steel
focal length:600mm
Time of exposure:5min
Double intensifying screen:0.02mm
Negative:TianJin III
Density:≥1.8
Technical Characteristics
| Product Model | Voltage
(KV)
| Maximum
Rating
(kW)
| Focus size
(mm)
| Radiation Coverage | Max. Penetration A3 Steel (mm) | Generator Weight
(kg)
| Generator Dimensions
(mm)
|
| XXG-1605 | 30-160 | 1.8 | 1.5*1.5 | 40+5° | 20 | 20 | 220* 220* 560 |
| XXGH-1605P | 30-60 | 1.8 | 1.0*2.0 | 360*25 | 18 | 20 | 220* 220* 560 |
| XXGH-1605Z | 30-160 | 1.8 | 1.0*3.5 | 360*30 | 18 | 20 | 220* 220* 560 |
| XXG-2005 | 100-200 | 2 | 2.0× 2.0 | 40+5° | 30 | 20 | 200* 200* 600 |
| XXGH-2005P | 100-200 | 2 | 1.0*2.0 | 360*25 | 28 | 26 | 250* 250* 620 |
| XXGH-2005Z | 100-200 | 2 | 1.0*3.5 | 360*30 | 25 | 26 | 250* 250* 620 |
| XXG-2505 | 130-250 | 2.5 | 2.0*2.0 | 40+5° | 40 | 28 | 260*260*740 |
| XXGH-2505P | 130-250 | 2.5 | 1.0*2.2 | 360*25 | 35 | 28 | 260*260*740 |
| XXGH-2505Z | 130-250 | 2.5 | 1.0*5.0 | 360*30 | 35 | 28 | 260*260*740 |
| XXG-3005 | 150-300 | 3 | 2.5*2.5 | 40+5 | 50 | 34 | 320*320*820 |
| XXGH-3005P | 150-300 | 3 | 1.0*2.5 | 360*25 | 45 | 34 | 320*320*820 |
| XXGH-3005Z | 150-300 | 3 | 1.0*6.0 | 360*30 | 45 | 34 | 320*320*820 |
| XXG-3505 | 200-350 | 3.5 | 2.5*2.5 | 40+5 | 60 | 35 | 320*320*820 |
| XXGH-3505P | 200-350 | 3.5 | 1.0*2.5 | 360*25 | 55 | 35 | 320*320*820 |
| XXGH-3505Z | 200-350 | 3.5 | 1.0*6.0 | 360*30 | 55 | 35 | 320*320*820 |
Performance Index
1. Adopt the newest energy conversion, and rose to high-frequency operation, which make energy conversion rate improved by 30% compared with the traditional equipment, break through the traditional 1:1 working mode, no rest time requirement.
2. Low heat, continuous working does not affec
>>
