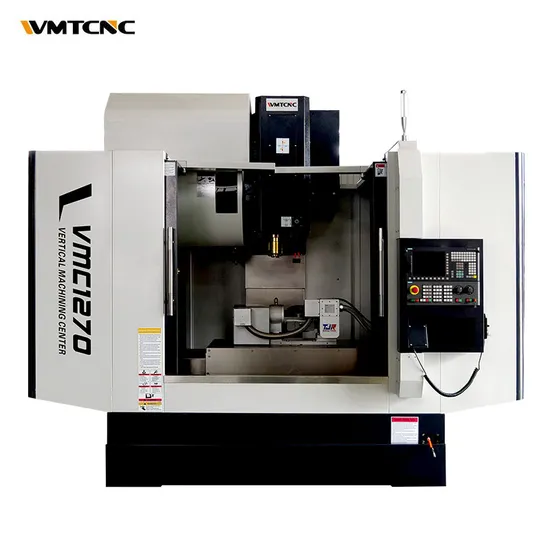

Basic customization VMC1270 5 axis vmc machine 5 axis cnc milling machine vertical machining center

Product Description

Product Description
VMC Vertical Machining Center VMC1270 Main Characteristics:
1. The major machine components apply finest gray cast iron which are of good shock resistance. All the casts have been done with aging treatment twice, in order to eliminate the internal residual stresses. So that, our machine can work with high rigidity and good shock resistance for heavy cutting and intermittent cutting.
2. Key components are designed with CAD software, in this way, the optimal structure can be analyzed out by computer, which ensure the good intensity, rigidity and thermal stability.
3. The joint face of components are manually polished well, which guarantees the effective contacting area.
4. CNC control system
The system has complete and reliable interlock, safety protection and fault diagnosis and alarm functions, equipped with RS232 standard and network communication interface, and computer program control and storage, can achieve DNC processing (according to the system has differences).

Travel
X-axis	1200mm
Y-axis	700mm
Z-axis	600mm
Spindle nose to table surface	110-710mm
Spindle axis to column surface	750mm
System
CNC system	GSK218 control system
Spindle
Spindle taper	BT40
Spindle speed	8000rpm
Spindle motor	11kw
Worktable
Table size	1300×700mm
Max.loading	1000kg
T-slot width	18-110mm
T-slot quantity	5
Tool magazine
Tool magazine capacity	Taiwan 24 tools disc magazine
Tool
Max. tool dia.	80/150mm
Max. tool length	200mm
Max. tool weight	8kg
Rapid movement
X,Y axis rapid movement rate	20000mm
Z axis rapid movement rate	18000mm
Cutting feed rate	1-10000mm/min
Accuracy
Position accuracy	±0.008mm
Repeat positioning accuracy	±0.003/300mm
Motor
X/Y/Z axis motor type	AC servo motor
Torque	22/22/22N.m
Power device	3-phase AC 380V±10%, 50Hz±10%
Capacity	20KVA
Coolant system
Capacity	200L
Cooling pump power	440W
Cooling pump flow	67L/min
Rated head	16m
Air supply
Using air pressure	0.6MPa
Dimension and weight
Dimensions	3700×2750×2800mm
Net weight	7500Kg

Detailed Photos
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
