Product Description
Product Description

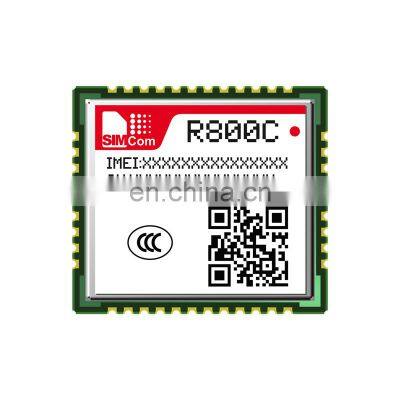

DescriptionGSM/GPRS ModuleR800C is a dual-band GSM/GPRS module that supports GPRS data transmission rate up to 85.6kbps, with powerful expansion capabilities and rich interfaces, including UART, USB2.0, GPIO, etc. This module provides great flexibility and easy integration capabilities for customers' applications.Product advantage● Very small size dual-band GSM/GPRS module● LCC package, compatible with SIM800C block package● Very low power consumption● Built-in TCP/UDP network protocolGeneral characteristics• Supported frequency band: 900/1800MHz• GPRS multi-slot class: 12/10• Size: 17.6*15.7*2.3mm• Weight: 1.3±0.1g• Supply voltage: 3.4 ~ 4.4V• Operating temperature: -40℃ ~85℃• GPRS mobile station class B• Meet GSM phase 2/2+ standard: Class 4 (2W @ 850/900MHz)– Class 4 (2W @ 900MHz)– Class 1 (1W @ 1800MHz)• Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT command set)• Low power consumptiondata transmission• GPRS class 12: Uplink/Downlink up to 85.6Kbps• Support PBCCH• Coding schemes CS 1, 2, 3, 4• PPP-stack• Support USSDSMS• Peer-to-peer MO and MT• SMS broadcast• Text and PDU modesSoftware features• 0710 MUX protocol• Built-in TCP/UDP protocol• FTP/HTTP/MQTT/NTP• Base Station Location*• SSL/TLS*• TTS*• EAT*hardware interface• Analog voice interface• Serial• SIM card (1.8V/3V)• Support RTC• Analog voice• ADC• GPIO• Antenna: GSMCertification• 3C/SRRC/NAL• CE/FCCWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
>>
