12% Discount Dolomite Stone Crusher Plant, Stone Crushing Line

Product Description

12% Discount Dolomite Stone Crusher Plant, Stone Crushing Line

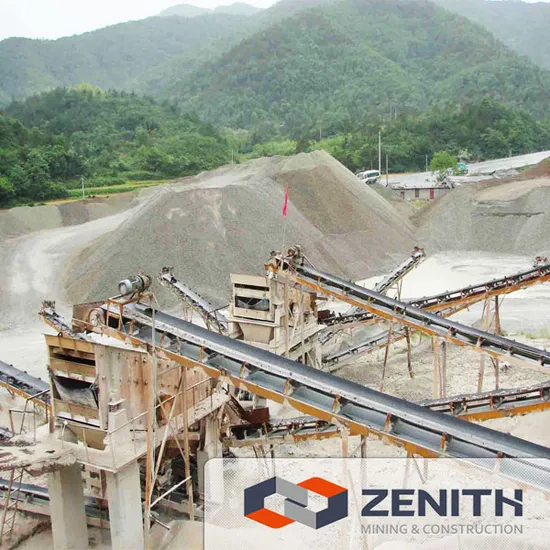

Stone Crusher Plant, Stone Crushing Line Introduction
Stone Crusher Plant, Stone Crushing Line means the whole production line that large stone materials are crushed granular shape by many crushing equipments. The crushed stone production line produced by our company can provide customers with many specifications, it has the characters of cover small area and fine finished product size, and it is convenient to operate because of it equipped with advanced electrical control operating system. In addition, according to customers' demand to material specification and stones purpose, we can combine different models together to meet various needs. We provide comprehensive service according to customers' production site and try our best to produce the best production line.
Stone Crusher Plant, Stone Crushing Line Features
1. The whole line is highly automatic, it can operate by itself except that open and close the machine need hand operation.
2. It is high efficiency, low consumption and high capacity.
3. The size of the finished products can be adjustable, high crushing ratio and energy saving.
4. The size of the finished products is even and good-shaped, they can meet requirement of highway construction.
Applicable scope
Stone Crusher Plant, Stone Crushing Line can be used to hard limestone, granite, basalt, river gravel, slag and other materials. It is widely used in highway, construction, chemical industries and so on. To meet customer's different demand, we can equip kinds of equipments according to different craftwork demand.
Stone Crusher Plant, Stone Crushing Line Main composition
Stone Crusher Plant, Stone Crushing Line consists of vibrating feeder, jaw crusher, impact crusher or cone crusher, vibrating screen and belt conveyor. We usually choose impact crusher for its good final products when the material is not very hard. But cone crusher is the best choice when material is harder. The final products of cone crusher are not as good as that of impact crusher, so we can equip a VSI sand making machine to plastic material if there is a higher demand about material.
Stone Crusher Plant, Stone Crushing Line Working process
Large materials are regularly conveyed into the jaw crusher for elementary crushing by vibrating feeder, and then the belt conveyor transfers the elementary products to impact crusher for secondary crush. The secondary product will be separated into stone of different sizes by the vibrating screen, the parts satisfying the needs will be sent the finished stockpile by belt conveyor. The parts not satisfying the needs will be returned to the impact crusher for further crush, thus forming a closed circuit. The size of the finished products can be combined and graded according to customer's demand; We can equip with dust removal equipment to protect the environment. This is the basic working process of Crushed stone production line.

NO.	Equipment	Model	Motor(KW)	Number
	Hopper	LC3000X4000		1
I	Vribrating Feeder	GZD1100X4200	15	1
II	Jaw Crusher	PE750x1060	110	1
III	Impact Crusher	PFW1315	160	1
IV	Vribrating Screen	3YK2160	30	1
Belt
NO.	Name	Length(m)	Power(KW)	Number
B1	B800	18	7.5	1
B2	B800	20	11	1
B3	B500	25	7.5	1
B4	B500	23	5.5	3
B5	B500	18	5.5	1

---
