Product Details
Product Description
Product Description

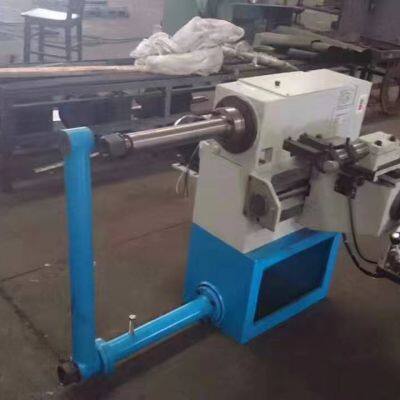

T8465 brake drum lathe detailed introduction
Brake drum and brake disc machine tool is a multifunctional machine tool for boring and repairing brake drum, brake disc and CAM expansion brake shoe friction surface. This machine tool is equipped with various types and specifications of fixtures to clamp brake components for boring and repairing. Can adapt to a variety of cars, trucks brake drum, brake disc and brake shoe boring repair requirements.
This machine tool is designed and manufactured for automobile transportation and automobile repair units, used in the maintenance and repair of vehicle brake components.
This machine tool has a variety of models, specifications, users can choose according to needs.
This machine tool has the advantages of simple operation, convenient maintenance and excellent processing efficiency. It is an ideal equipment.
Machine tool main technical specifications and parameters
1, boring brake drum diameter of ￠180 - ￠650mm
2, boring brake disc diameter ≤500 mm
3. Working stroke 250mm
4, spindle speed 30, 52, 85, rpm
5. Cutting capacity 0.16mm/ rpm
5. Motor 1.1/1400kw
6, the overall size of the machine (length × width × height) 800×875×1050mm
7. Power supply 380V
| BRAKE DRUM AND DISC LATHE | T8445/T8445A | T8465 |
| DRUM DIA | 180-450MM | 180-650MM |
| DISC DIA | 102-400MM | 102-520MM |
| CUTTING TRAVEL | 190MM | 265MM |
| SPINDLE SPEED | 20,52,85RPM | 20,52,85RPM |
| FEED SPEED | 0.16MM | 0.16MM |
| MAIN MOTOR | 1.1KW | 1.1KW |
| MACH WITH LIFTING UNIT | 1100*870*1000MM | 1580*1020*1050MM
1880*1020*1970MM |
| PACKING SIZE WITH LIFTING UNIT | 900*930*1100MM | 1020*1065*1100MM
1420*1065*1100MM |
| G WEIGHT /N.W | 350/290KG | 530/470KG |
1. "Replacement adapter" system eliminates the need for traditional bell clips and cones.
2. Continuously variable spindle and cross feed speed set for fast rough and fine finishing.
3. Precision double cutter and fast drum to rotor conversion help improve your service capability.
4. Dc motor designed to meet the requirements of industrial motion control.
5.Positive rake cutter tip angle provides for a one pass finish virtually every time,allowing you to complete your work fast.
>>
