Hmc630 High Quality Horizontal CNC Machining Center/Horizontal Machining Center with CE

Product Description

Product Description
Horizontal CNC Machining Center/Horizontal Machining Center



Technical parameters:

		HMC630	HMC630/1	HMC630/2	HMC630/3
		Single table	Double table	Continuous indexing single table	Continuous indexing double table

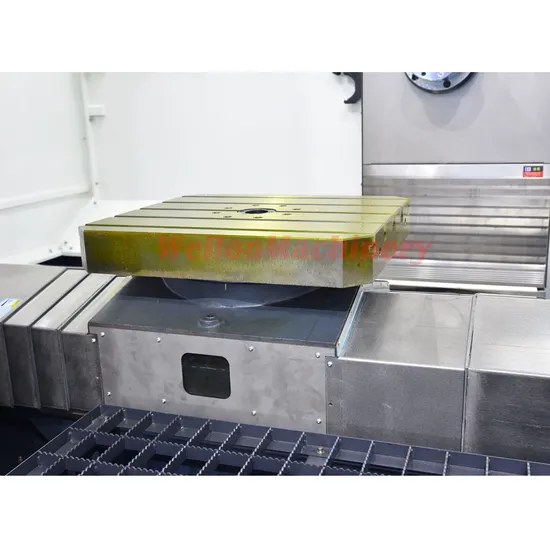

Worktable	Worktable size	630×700mm	630×700mm	630×700mm	630×700mm
	Worktable number	1	2	1	2
	Worktable indexing	1°X360	1°X360	0.001°	0.001°
	Worktable transmission	240	240	160	160
	changer worktable transmission	/	240	/	240
	Changer worktable structure	/	Rotary type	/	Rotary type
	Changer worktable time	/	24s	/	24s
	Worktable loading capacity	950kg	950kg	950kg	950kg
	Max. Swing diameter of workpiece	¢1100mm	¢820mm	¢1100mm	¢820mm
Travel	Worktable movement left and right(X Axis)	1050mm	1050mm	1050mm	1050mm
	Spindle head movement up and down(Y Axis)	750mm	750mm	750mm	750mm
	Column movement forward and backward (Z Axis)	900mm	900mm	900mm	900mm
	Distance from spindle center to worktable surface	120~870mm	0~750mm	120~870mm	0~750mm
	Distance from spindle nose to worktable center	130~1030mm	130~1030mm	130~1030mm	130~1030mm
Spindle	Max. Spindle speed	6000rpm	6000rpm	6000rpm	6000rpm
	Spindle taper	BT50-190	BT50-190	BT50-190	BT50-190
	ATC	24 (30/40)	24 (30/40)	24 (30/40)	24 (30/40)
Motor	Spindle motor	15kw	15kw	15kw	15kw
	X,Y,Z axis servo motor	22/30/30 Nm	22/30/30 Nm	22/30/30 Nm	22/30/30 Nm
	B axis servo motor	8 Nm	8 Nm	12 Nm	12 Nm
	APC servo motor	/	8 Nm	/	8 Nm
Leadscrew (Taiwan)	X axis, Y axis(Diameter×Pitch)	40×12	40×12	40×12	40×12
	Z axis(Diameter×Pitch)	50×12	50×12	50×12	50×12
Rapid speed	X , Y, Z axis	24m/min	24m/min	24m/min	24m/min
	B axis	10r/min	10r/min	10r/min	10r/min
Positioning accuracy	X , Y, Z axis	0.01	0.01	0.01	0.01
	B axis	10″	10″	10″	10″
Repositioning accuracy	X , Y, Z axis	0.006	0.006	0.006	0.006
	B axis	5″	5″	5″	5″
Machine overall dimensions		3010×2690×2485	4225×2690×2485	3010×2690×2485	4225×2690×2485
Machine net weight		100000kg	11000kg	10000kg	11000kg

Standard accessories:

Fanuc 0i MF control system

24 Tool disc type ATC from Okada

Automatic chip conveyor

Nitrogen balance

Full closed cover

Automatic lubrication

Coolant system

Work lamp

Tri-color indication lamp

Air conditioner in cabinet

Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
