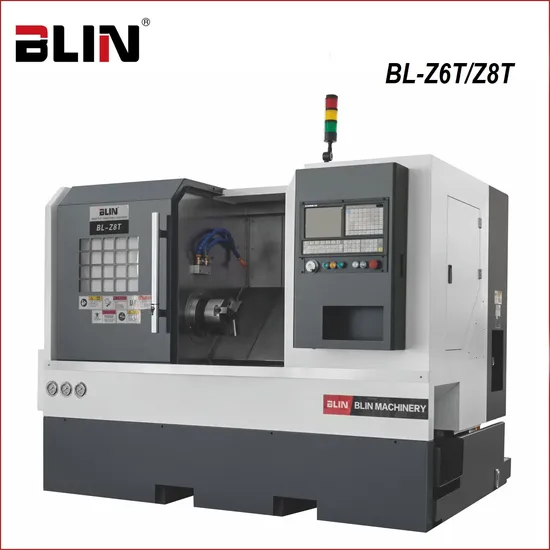

Mini Metal CNC Lathe with Turret Tailstock (BL-Z6T/Z8T)

Product Description

Mini metal cnc lathe with turret tailstock(BL-Z6T/Z8T)
-Super high performance-price ratio -Mono-block 45° slant bed -For Z8T, X,Z axes adopt ROLLER type linear guideway Details:

Item	Specification	Unit	BL-Z6T	BL-Z8T
Capacity	Chuck size	/	6''/8''*	6''/8''*		8''/10''*
	Max. swing dia. over bed	mm	Φ360	Φ500
	Max. machining dia.(disc type)	mm	Φ250	Φ400
	Max. machining dia.(shaft type)	mm	Φ180	Φ250
	Center distance	mm	350	500
	Max. turning length	mm	300	390		380
	Max. bar through dia.	mm	Φ45	Φ45		Φ51
Spindle	Spindle speed	rpm	4000	4000		4000
	Spindle bore	mm	Φ56	Φ56		Φ62
	Spindle nose	/	A2-5	A2-5		A2-6
	Spindle motor	kw	5.5(Servo)	7.5(Servo)		11(Servo)
Tool turret	Tool turret type	/	8 station Hydraulic tool turret	10 station Hydraulic tool turret
	Toolshank size	mm	25×25,Φ32	25×25,Φ32
X/Z axes	X axes travel	mm	200	220
	Z axes travel	mm	330	480
	X/Z axes servo motor	Nm	10/10(GSK)	15/15(GSK)
	X/Z axes Linear guideway width	mm	25/30	30/35(Roller type)
	X,Z axes ball srew O.D./pitch	mm	Φ32/10	Φ32/10
	X/Z axes rapid moving speed	m/min	20
	X/Z axes positioning precision	mm	+/-0.006
	X/Z axes repeatable positioning precision	mm	+/-0.005
Tailstock	Tailstock quill travel	/	80		80
	Tailstock quill taper		MT4#		MT5#
Others	Overall size	mm	2210×1660×1620		2430×1830×1680
	N.W.	kg	2500		2800	3000

Main parts list:

Item	Brand
CNC controller	CHINA-GSK
Servo motor&driver	CHINA-GSK
Spindle Unit	CHINA Top
Spindle bearing	CHINA Top-HRB
Ball screw bearing	JAPAN-THT
Linear guideway	Joint venture-HTPM
Ball screw	JAPAN-LAIEN
Tool turret	TAIWAN
Chuck&oil cylinder	TAIWAN(Opt.: CHINA brand)

Standard configuration: -GSK980TC3 CNC controller
-Hydraulic chuck
-8,10 station hydraulic tool turret
-Hydraulic tailstock Optional configuration: -Chip conveyor
-Bar feeder
