Durable and reliable aluminum clad steel wire double tension clamp for OPGW optical cable

Product Details

Product Description

Product Description

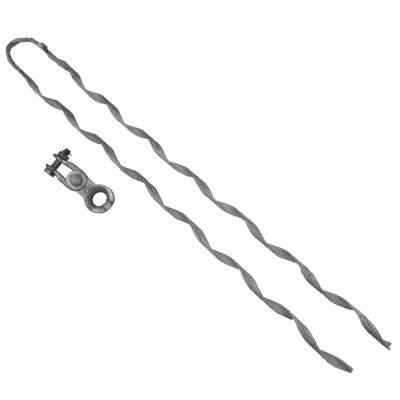

ADSS optical cable with pre-twisted tension clamp

ADSS fiber optic cable pre-twisted tension clamps are used for connecting towers and optical cables in ADSS fiber optic cable line installation. The special design of pre-twisted wire can ensure the grip strength of the product while better protecting the optical fiber of the optical cable from being crushed and damaged, ensuring that the optical fiber signal transmission does not decay.

Characteristic

① The product is easy to install with bare hands and does not require specialized installation tools. And the installation quality is guaranteed.
② On the premise of ensuring that the grip strength of the optical cable is not less than 95% of the rated tensile strength (CUTS) of the optical cable, while not damaging the optical cable.
③ The product has strong interchangeability and can be connected and matched with various fittings, increasing its applicability.
④ The product is made of aluminum clad steel wire or galvanized steel wire material, which has high mechanical properties and extremely high anti-corrosion performance.

Product Selection Notice

①The product selects the appropriate tension clamp based on the rated tensile strength (RTS), operating tension, operating span, and outer diameter of the optical cable of ADSS.
② Quantity configuration: 1 set/tower for terminal towers, and 2 sets/tower for tension towers.
③ The connectors should be reasonably matched according to the selected tension clamps.

Product Images



Product Description

Installation span: ≤ 100m
Composition: U-shaped hanging ring, TC embedded ring, pre-twisted tension clamp with outer twisted wire
Pre-twisted wire material: aluminum clad steel wire or galvanized steel wire

ADSS optical cable with small distance tension clamp product selection table


Product specification	Applicable optical cable diameter(mm)	Product reference length(mm)	Product grip(kn)	Weight(kg)	Matching fittings
LANZ-100-9.4	9.0-9.4	780	10	0.32	TC-5
LANZ-100-10.4	9.5-10.4	830	10	0.40	TC-5
LANZ-100-11.5	10.5-11.5	880	10	0.52	TC-5
LANZ-100-12.4	11.6-12.4	910	10	0.54	TC-5
LANZ-100-13.4	12.5-13.4	980	10	0.69	TC-5
LANZ-100-14.9	13.5-14.9	1020	10	0.79	TC-5
LANZ-100-15.9	15.0-15.9	1060	10	0.82	TC-5

Note: The denominator and numerical significance of the models in the table
A-ADSS optical cable, NZ - tension clamp, 100-100 meter span, suffix number - applicable cable diameter
The company's products are not listed above. If you have any needs, you can consult the company.

ADSS optical cable with medium and large distance tension clamp product selection table

Installation span: above 200m
Composition: U-shaped hanging ring, TC embedded ring, pre-twisted tension wire clamp inner layer twisted wire, outer layer twisted wire, PD hanging plate or PH/ZH hanging ring
Pre-twisted wire material: aluminum clad steel wire or galvanized steel wire

Product specification	Applicable optical cable diameter(mm)	Installation span	Product grip(kn)	Outer strand length(mm)	Inner strand length(mm)	Weight(kg)	TC thimble	PH hanging board	U-shaped hanging ring
LANZ-200-9.4	9.0-9.4	200	20	800	1200	1.06	TC-5		U-4
LANZ-200-10.4	9.0--10.4	200	20	800	1200	1.15	TC-5		U-4
LANZ-200-11.5	10.5-11.5	200	20	800	1200	1.18	TC-5		U-4
LANZ-200-12.4	11.6-12.4	200	20	850	1200	1.20	TC-5		U-4
LANZ-200-13.4	12.5-13.4	200	20	850	1200	1.30	TC-5		U-4
LANZ-200-14.9	13.5-14.9	200	20	900	1200	1.45	TC-5		U-4
LANZ-200-15.9	15.0-15.9	200	20	900	1200	1.50	TC-7		U-7
LANZ-300-9.4	9.0-9.4	300	30	1100	1400	1.30	TC-7		U-7
LANZ-300-10.4	9.5-10.4	300	30	1100	1400	1.40	TC-7		U-7
LANZ-300-11.5	10.5-11.5	300	30	1100	1400	1.45	TC-7	PH-7	U-7
LANZ-300-12.4	11.6-12.4	300	30	1100	1400	1.50	TC-7	PH-7	U-7
LANZ-300-13.4	12.5-13.4	300	30	1100	1400	1.70	TC-7	PH-7	U-7
LANZ-300-14.9	13.5-14.9	300	30	1100	1400	1.75	TC-7	PH-7	U-7
LANZ-300-15.9	15.0-15.9	300	30	1100	1400	1.80	TC-7	PH-7	U-7
LANZ-400-9.4	9.0-9.4	400	40	1260	1700	1.05	TC-7	PH-7	U-7
LANZ-400-10.4	9.5-10.4	400	40	1260	1700	1.65	TC-7	PH-7	U-7
LANZ-400-11.5	10.5-11.5	400	40	1260	1700	1.66	TC-7	PH-7	U-7
LANZ-400-12.4	11.6-12.4	400	40	1260	1700	1.72	TC-7	PH-7	U-7
LANZ-400-13.4	12.5-13.4	400	40	1260	1700	2.00	TC-7	PH-7	U-7
LANZ-400-14.2	13.5-14.2	400	40	1260	1700	2.05	TC-7	PH-7	U-7
LANZ-400-14.9	14.3-14.9	400	40	1260	1700	2.07	TC-7	PH-7	U-7
LANZ-400-15.9	15.0-15.9	400	40	1260	1700	2.10	TC-7	PH-7	U-7
LANZ-400-16.9	16.0-16.9	400	40	1260	1700	2.30	TC-7	PH-7	U-7
LANZ-500-11.5	10.5-11.5	500	50	1400	2000	2.10	TC-7	PH-7	U-7
LANZ-500-12.4	11.6-12.4	500	50	1400	2000	2.25	TC-7	PH-7	U-7
LANZ-500-13.4	12.5-13.4	500	50	1400	2000	2.52	TC-7	PH-7	U-7
LANZ-500-14.2	13.5-14.2	500	50	1400	2000	2.60	TC-7	PH-7	U-7
LANZ-500-14.9	14.3-14.9	500	50	1400	2000	2.65	TC-7	PH-7	U-7
LANZ-500-15.9	15.0-15.9	500	50	1400	2000	2.80	TC-7	PH-7	U-7
LANZ-500-16.9	16.0-16.9	500	50	1400	2000	3.15	TC-7	PH-7	U-7
LANZ-600-11.5	10.5-11.5	600	60	1560	2200	2.30	TC-7	PH-7	U-7
LANZ-600-12.4	11.6-12.4	600	60	1560	2200	2.50	TC-7	PH-7	U-7
LANZ-600-13.4	12.5-13.4	600	60	1560	2200	2.80	TC-7	PH-7	U-7
LANZ-600-14.2	13.5-14.2	600	60	1560	2200	2.90	TC-7	PH-7	U-7
LANZ-600-14.9	14.3-14.9	600	60	1560	2200	2.95	TC-7	PH-7	U-7
LANZ-600-15.9	15.0-15.9	600	60	1560	2200	3.05	TC-7	PH-7	U-7
LANZ-600-16.9	16.0-16.9	600	60	1560	2200	3.40	TC-7	PH-7	U-7
LANZ-700-12.4	11.6-12.4	700	70	1600	2400	2.62	TC-10	PH-10	U-10
LANZ-700-13.4	12.5-13.4	700	70	1600	2400	2.96	TC-10	PH-10	U-10
LANZ-700-14.2	13.5-14.2	700	70	1600	2400	3.05	TC-10	PH-10	U-10
LANZ-700-14.9	14.3-14.9	700	70	1600	2400	3.07	TC-10	PH-10	U-10
LANZ-700-15.9	15.0-15.9	700	70	1600	2400	3.25	TC-10	PH-10	U-10
LANZ-700-16.9	16.0-16.9	700	70	1600	2400	3.60	TC-10	PH-10	U-10
LANZ-700-17.9	17.0-17.9	700	70	1600	2400	3.70	TC-10	PH-10	U-10
LANZ-700-18.9	18.0-18.9	700	70	1600	2400	4.82	TC-10	PH-10	U-10
LANZ-800-12.4	11.6-12.4	800	80	2000	2800	3.20	TC-10	PH-10	U-10
LANZ-800-13.4	12.5-13.4	800	80	2000	2800	4.30	TC-10	PH-10	U-10
LANZ-800-14.2	13.5-14.2	800	80	2000	2800	4.50	TC-10	PH-10	U-10
LANZ-800-14.9	14.3-14.9	800	80	2000	2800	4.85	TC-10	PH-10	U-10
LANZ-800-15.9	15.0-15.9	800	80	2000	2800	5.00	TC-10	PH-10	U-10
LANZ-800-16.9	16.0-16.9	800	80	2000	2800	5.18	TC-10	PH-10	U-10
LANZ-800-17.9	17.0-17.9	800	80	2000	2800	5.70	TC-10	PH-10	U-10
LANZ-800-18.9	18.0-18.9	800	80	2000	2800	6.25	TC-10	PH-10	U-10

Note: Please strictly follow the selection table to choose the cable clamp model, otherwise it may cause the optical cable to slip or fail to install.


---
