Eco Friendly High Speed Automatic Food Tray Paper Board Box Forming Making Machine Paper Lunch Box Forming Machine Factory Price Chj-D60

Product Description

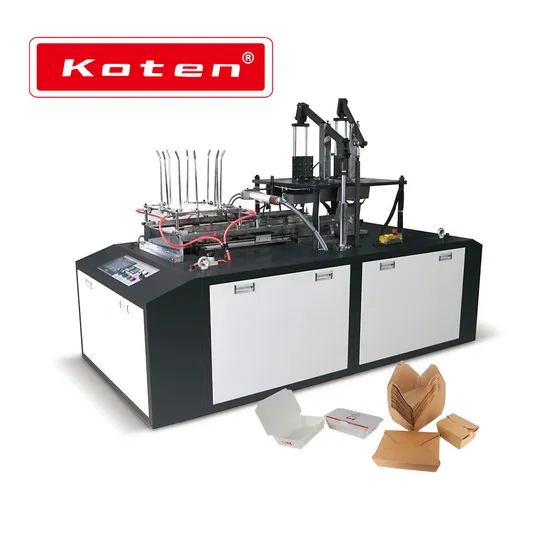

Paper Lunch Box Making Machine(Heating Seal) CHJ-D60/120
CHJ-D paper lunch box forming machine is an ideal choice which adopts mechanical driving system to produce lunch box, take away noodle box, and food trays. The main features of the new type: 1.The machine is controlled by mechanical system, no need air compressor. It saves our customer at least 6 KW power when machine is running. 2.The hot wind blow from the heating tube, it makes the PE coated papers stick together more tightly. 3.Besides the mechanical system, the machine on one line producing very fluently: paper feeding, heating, forming, pulling out and collecting. So the machine speed can be double.

Type	CHJ-D 60	CHJ-D 120
Max Forming Depth	60 mm	120 mm
Production Capacity	30-45 pcs/min	30-40 pcs/min
Suitable Material:	200 - 400gsm single or double PE coated paper
Total Power:	4 KW	6 KW
Total Weight:	1250 KGS	1750 KGS
Overall Dimension:	2200x1100x1700 mm	2800x1100x1700 mm
Power Source	380V 50HZ

Item	Brand	Origin
Touch screen	Inovance	China
Inverter	Inovance	China
Electric relay	Schneider	French
Powertransformer	Meanwell	China
Microrelay	C-lin	China
Servomotor	Inovance	China
Driver	Inovance	China
SSR	Autonics	Korea
AC contactor	Schneider	French

BOX TYPE
SAMPLE IMAGE

---
