Efficient Automatic Welding to Build a Stable Scaffold Automatic Scaffolding Standard Welding Machine Scaffolding Welding Equipment

Product Description

Product Description

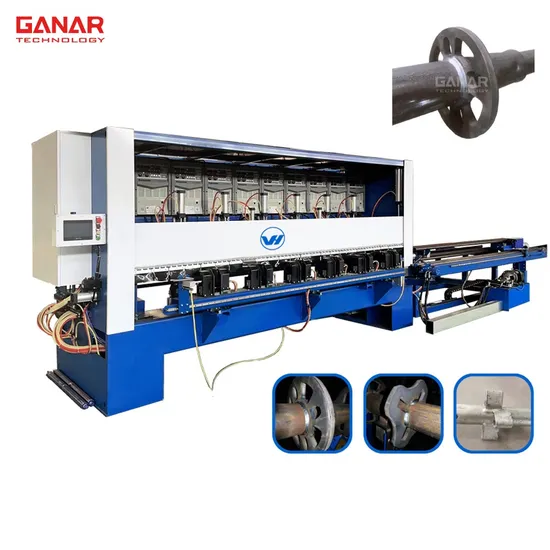

Automatic Scaffolding Standard Ringlock/ Cuplock/ Four-way Ring/ Kwistage Welding Machine
The equipment is an automatic welding machine for the production of scaffolding, which can realize automatic tube loading, automatic spot welding and automatic ring welding. Automatic drop parts and automatic transfer robot palletizing the whole process of cyclic work. Beautiful weld, save cost, improve production efficiency.
Equipment Composition:
Main engine, material bin, automatic pipe piercing rack.
Production Process:
Automatic upper tube, automatic tube piercing, automatic point fixing, manual upper plate.
Characteristic:
1.Welding process: gas shielded welding (MAG/CO2).
2.Touch screen intelligent operation panel, easy to learn and understand, without technical workers, saving high wages and cost.
3.With 13 500A digital welding inverter welding machines, 13 welding machines work at the same time, greatly improving the work efficiency.
4.Automatic cutting function, saving time and labor, greatly reducing labor intensity of workers.
5.The protective door is opened and lowered pneumatically, and the protective door will drop automatically when welding to prevent arc drilling.
6.It can adapt to the workpiece diameter of 48/60mm.
7.It can adapt to the workpiece length of 1m-3m.
8.It is equipped with large capacity steel pipe storage silo, which can save the time of laying pipe and improve the production efficiency.
Size can be customized according to customer requirements.
Detailed Photos
Automatic Scaffolding Standard Ringlock/ Cuplock/ Four-way Ring/ Kwistage Welding Machine

Welding Machine Tube Auto Feeder
Welding Machine No Need Spot Weld In Advance
Welding Machine Two Sides Welding Gun Of One Rosette
Welding Machine Rosette Fixture
Welding Machine 12pcs Panasonie Welding Machine
After Welding

Product Parameters

Machine Name	Automatic Scaffolding Standard Ringlock/ Cuplock/ Four-way Ring/ Kwistage Welding Machine
Model	VH-F12
Welder Brand	Panasonic YD-500FR2 x12pcs
Automatic Pipe Feeder	Yes
Rated Voltage	50HZ AC380V+N (customized)
Rated Power	70kw
Rated Current	180A
Volume of Hydraulic Station	108L
Hydraulic Station Oil Volume	90L
Hydraulic Oil Type	46# anti-wear hydraulic oil
Air Source Pressure	0.6-0.8 Mpa
Welding Air Source Pressure	0.4-0.6Mpa
Rotary Range	1-15rpm
Cable diameter (copper)	35mm2
Machine Overall Dimensions	L8500 X W2200 X H2100mm
Weight	3800kgs

Packaging & Shipping
Our products come with exquisite packaging that protectsthem from damage during transportation.
1. Cleaning machine.
2. Wrap all the machine and parts with bubble film and plastic film.
3. Forklift the packed machine to the container.
4. Choose the optimal routes and transportation modes according to the distance.
Company Profile

Ganar Tech is a company which founded in 2013, 400 employees, 100, 000 square meters. Our exported business started in 2020.
Driven by innovation:Our focus is on enhancing production performance for customers - most of whom are in the branded goods industry - and this will continue to be the case in the future.Whether you need first-rate production lines or machines that offer unrivaled flexibility and reliability from day one - we′ve been doing it since we established.We deliver state-of-the-art technology and peak quality - in each individual machine as well as each complete line system.Our main objective is to keep our customers′ operations running with maximum productivity. To ensure we achieve this, more than 15% of our entire workforce is deployed in the areas of Pre-Sales Engineering and After Sales Service.We keep your machines running, worldwide and around the clock!We offer the perfect synergy of experience, automation technology, and scale to advance factory automation solutions for the world′s leading manufacturers.We′re pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. Delivering excellent performance is in our DNA.
Our Advantages

Gift for you: Tool kit together will be sent together with our machine.
1.We use high-quality materials and adopt exquisitecraftsmanship to ensure the product's durability andaesthetics.
2.We prioritize user experience, with a simple and intuitiveinterface that is easy to operate.
3.This product strictly adheres to safety standards duringdesign and production,ensuringuser safety.
4.We provide regular product upgrades and maintenanceservices to ensure your product remains in optimal condition.
5.In addition to the main product, we also offer a range ofaccessories and attachments to meet your diverse needs.
6.We emphasize environmental protection and energyconservation,This product features low energy consumptionand high efficiency.
7.Our products come with exquisite packaging that protectsthem from damage during transportation.
8.We offer a variety of models and specifications for you tochoose from,catering to the needs of different customers.
After Sales Service

1. After-sales service commitment:
We promise to provide users with 24 hours of efficient, professional and caring after-sales service to ensure the performance, function, safety and stability of the equipment;
2. After-sales service system:
We have established a perfect after-sales service system, including after-sales service center, after-sales service station, after-sales service engineer, after-sales service customer service and other institutions and personnel;
3. After-sales maintenance service plan:
We have developed a reasonable after-sales maintenance service plan including warranty period, warranty scope, charging standard, maintenance criteria and other content;
4. Training program:
We have developed a professional training program, including training objectives, training content, training methods, training testing and evaluation.
FAQ
Q1:If I have some problems, what should I do?
A:-You can contact our salesman directly, our engineer will check the problem. We Provide proofing service before sale and free technical training, online technical guidance, video guidance.
Q2:How long is the warranty?
A:-We offer a 1-year warranty. We will provide detailed information as soon as possible.
Q3:Can the machine be customized in size?
A:-Of Course.You can tell us what you want to welding and the size. We will customize the machine according to your size.
If you need help, we have a professional team to help you.
If you have other mold needs technical instruction and video instruction are also provided.
RIGHT MACHINE, RIGHT COST, RIGHT NOW-- CONTACT US!!!

---
