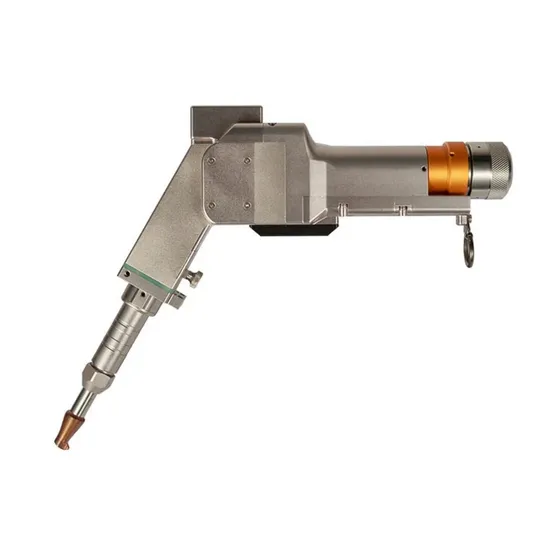

Professional and Lighter Weight Handheld Laser Welding Head

Product Description

Product Description
Handheld Laser Welding Head supports 2000W laser for long time welding, the product comes with 6 oscillating modes, 4 light output modes and the spot size can be adjusted through the system, which is suitable for different welding situations.
Ten years of iterative laser control system, so that the use of the handheld head is more stable, anti-interference ability is stronger.
Unique optical design, greatly reducing the weight of the welding head. Focusing lens drawer type, so that the after-sales cost is lower and more convenient. Fully enclosed design, built-in water and air circuit.
Ergonomic concept design, fully considering the applicability of the welding process and the comfort of long-term use.
Laser Gun Specification

Handheld Laser Gun Size	216*287 mm
Handheld Laser Gun Weight	0.7 Kg
Handheld Laser Gun Materials	Aluminium alloy & Stainless Steel
Laser Head Connection	QBH
Adopt Laser Source	1064~1080nm Fiber laser source
Laser Power	Up to 2000w
Safety Switch	Laser Button & Clip & Emergency Stop
Position	Red point guide beam
Welding Laser Beam Size	0-5mm Welding
Welding Beam Form	―,○,⊙,△,8 .
Welding Materials	Steel / Stainless Steel / Aluminium
Welding Thickness	Depend on Laser source
Welding Speed	Depend on operator control
Welding Parameter Input	Touch Screen Monitor
Language in control system	English (Support Customized)
Welding parameter storage	30 kinds of different welding parameter save
Wire Feeding Parameter	Digital Data Input in monitor
Feeding Wires	Standard type : 0.8&1.0&1.2&1.6mm wire
	Option : 2mm wire
Double Route Wire Feeder	Option (Same time double route feeding)
Cooling method	Water Cooling
Cooling water	Purified water
Gas	Argon / Nitrogen

Features and Advantages

1	Laser welding head Size small & Light weight.
2	Unique non-slip grip design for manipulating ease and comfort grip.
3	Multiple security measures .
4	Various laser beam forms for different working requirements use.
5	Drawer type mirror holder - High sealing performance and Easy to replace.
6	20*4mm Protective window. Extremely durable.
7	50&150mm standard Focus length adjustable. Output high strong laser power.
8	High performance wobble motor and motor lens set.
9	High performance QBH connection port support various laser source.
10	Touch screen digital parameter setting monitor.
11	Language in English as standard. (Support Customized Language in Controller)
12	Laser beam size adjustable 0~5mm.
13	Option: Laser beam size adjustable 0~10mm.
14	0.8&1.0&1.2&1.6mm wire feeding. (2mm wire feeding as Option).
15	Option: Double route wire feeding (Same time double route feeding).

Detailed Photos

Nozzles (7 Nozzles)
