Product Description
Product Description

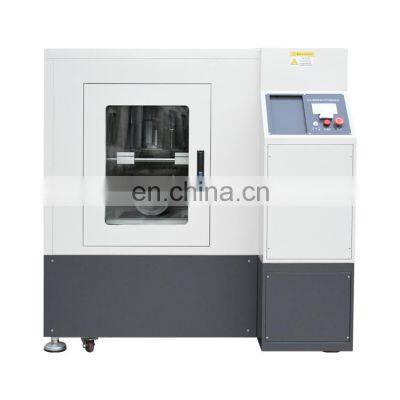

Asphalt Mixture Wheel Rutting Tester Product Usage and FeaturesUSAGE OVERVIEW:The rut meter is produced by our company using international advanced technology, and it is safe in operation. Simplicity. Durability of the instrument. Noise control. The heat dissipation and energy control have been greatlyimproved compared with similar instruments. Android tablet operation, WIFI wireless networking, inverter electric drive, and cloud server storage of test results.The rutting tester can carry out the rutting test at the test temperature of 45℃～85℃ and the wheel pressure of 0.7MPa～1.3MPa, and the standard test time is 60min.The rut meter is suitable for the plate test pieces of 300mm in length, 300mm in width and 30mm-100mm in thickness rolled by the wheel forming machine. It is also suitable for plate specimens with a length of 300mm, a width of 150mm and a thickness of 50mm, which are cut and produced on site. Specimens with a thickness of 30mm to 100mm can also be used.Detailed ImagesTechnical ParametersProductMultifunctional electric compaction apparatusDisplacement detection range0 ~ 50 mmDeformation detection resolution0.01 mmDeformation detection accuracy±0.05 mmTemperature control rangeroom temperature ~ 80 ℃Temperature detection resolution0.1 ℃Temperature control accuracy ±0.5 ℃Test wheel ground pressure0.7MPa±0.05MPaWalking frequency42 times/min ± 1 time/minTrial thickness50~100mmVoltage380V/ 220V (customize)Company informationCangzhou Lovely Technolgoy Co., Ltd is specialized in Nondestructive Test Instrument and Material testing machine over 12 years,With advanced technologies and best customer service. Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.We insisted on "Integrity-based, guests supremacy". Welcome customers from all over the world to visit us for business negotiation!The Foreign Trade Department of Cangzhou Lovely Group Co.,Ltd. was established.According to customers' requirements, there has the machine---CZY5 Rebar Weighing and Length Measuring InstrumentIndependent research and development and production of GW50 Automatic Rebar Bending Testing Machine.L800 Integrated Floor Thickness Gauge RBL+ Rebar Detector goes public.New product-- U900 Series Non-Metallic Ultrasonic Detector.HYE-2000 Series Microcomputer Servo Compression Testing Machine: Pad adjustment, Manual screw adjustment, Electric screw adjustment.WAW-B Micro Electromechanical Liquid Servo Universal Testing Machine.EV2 Static Deformation ModulusTester; EVD Dynamic Deformation Modulus Tester. ---Patented ProductThe factory was established, begin to produce more than 20 types instrument.Our ServicesPre-sale service* OEM customized service * Equipment installation and calibration * Free technical training for visiting factoriesAfter-sales service* 24-hour Online consulting support. * Training how to instal use the machine. * the professional after-sale service team will provide perfect technical support.Packing & DeliveryWe promise the delivey in time. And we support customize products for customers. Such as the voltage and package etc. All wooden box are suitable for exporting.FAQQ1:Are you a factory or trading company? A:We are a factory specializing in testing equipment used for evaluating construction and civil engineering materials. Q2:Where is the loading port? A:Qingdao port or Tianjin port. Q3:What’s the MOQ of the product? A:Different item has different MOQ.normally one set is preferred. Q4:What certificates do you have? A:We have ISO 9001. Q5:Do you have an OEM service? A:Yes.We can provide OEM and ODM services as your requirements. Q6:How long is the production cycle after ordering? A:General it is about 7-15 days. Q7:What is the payment method? A:T/T payment is preferred and other payment terms is accepted. Q8: Could you support to customize?A: Yes, we could customize the package and Voltage as request.
>>
