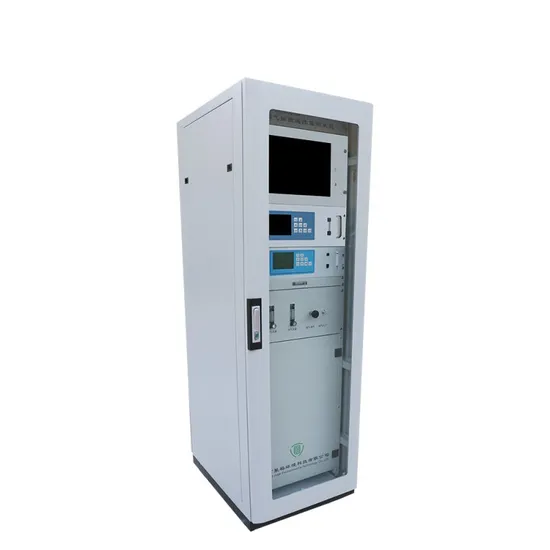

Flue Gas So2 No No2 Co CO2 Continuous Emission Monitoring System

Product Description

Product Description Flue Gas SO2 NO NO2 CO CO2 Continuous Emission Monitoring System
>>Overview It can monitor the real-time concentration of particulate matter and gaseous pollutants in the exhaust gases from fixed pollution sources (such as boilers, industrial furnaces, incinerators, etc.), enabling regulatory oversight of emissions at the source.
A CEMS typically consists of three main components: the gaseous pollutant monitoring unit (SO2, NO, NO2, CO, CO), the flue gas parameter monitoring unit (temperature, pressure, flow rate, O2, humidity), and the data acquisition and processing unit.
The sample gas is heated through a high-temperature heating pipeline, dusted by a two-stage filter, and after being dewatered by a two-stage condensation system, directly enters the gas chamber in the analyzer. The gas chamber is placed inside the analyzer and connected to the UV differential analyzer via UV fiber optics for flue gas measurement.
>>Feature
1) Secondary condensation for rapid water removal, reducing SO2 loss.
2) Long-life UV xenon lamp with high wavelength resolution ensures low detection limits, minimal temperature drift, fast response time, and accurate measurements.
3) PLC-controlled with adjustable parameters to adapt to complex working conditions.
4) Intelligent system design with traceable fault alarms for easy maintenance and troubleshooting.
5) Fully modular design, enabling flexible expansion of monitoring factors.
6) Flexible configuration: Users can choose between an NO2-NO converter or direct NO measurement as required.
>>Main technical parameters

Project			Index
Gaseous pollutant		SO2	(0~200) mg/m3, the range can be customized
		NO	(0~200) mg/m3, the range can be customized
		NO2	(0~200) mg/m3, the range can be customized
		O2	(0~25)%
		CO	(0~500) mg/m3, the range can be customized
		CO2	(0~20)%
		Repetitiveness	≤2%
		24h zero drift and range drift	≤±2%f.s.
		One-week zero-point drift and range drift	≤±3%f.s.
		Linear error	≤±2%f.s.
		Response time	≤120s
Flue gas parameters	Temperature	Measuring range	(0~300) ºC, is customizable
		Accuracy	≤±3ºC
	Pressure	Measuring range	(-10~10)kpa
		Accuracy
	Velocity of flow	Measuring range	(0~40) m/s, (0~2) kpa, the output is optional
		Accuracy
	Humidity	Measuring range	(0~40)vol%
		Accuracy
Data acquisition and processing		Data transmission module	8-way analog input
			1-channel rs485 communication interface
		IPC	6-way rs232 communication interface
			Windows7 operating system
		Operational software	Flue gas emission monitoring software monitor
Power supply			Ac 220v,50hz,≤7kw

>>System composition
AG-UVII3 Flue Gas Analyzer
>>Feature
1) Multi-pass gas chamber design for extended optical path and ultra-low gas concentration detection.
2) Low drift, high precision, low power consumption, fast response.
3) High-performance UV xenon lamp with long lifespan and vibration-resistant design.
4) Modular design for light source, detector, and core circuit, ensuring high reliability, scalability, and easy maintenance.
AG-YII2 Infrared Gas Analyzer

>>Feature
1) Long path gas cell (L-Cel) enables ultra-low gas concentration detection.
2) Low-temperature cooled infrared detector with low drift, high precision, low power consumption, and fast response.
3) High-performance infrared light source with long lifespan and special structural design to minimize vibration impact.
4) Internal self-tuning PID algorithm for precise temperature control.
5) Modular design for the light source, detector, and core circuits, ensuring high reliability, good scalability, and easy maintenance.
6) Independent gas detection module, easy to integrate into any detection or control system.
7) High-sensitivity and reliable dual-detector with infrared radiation protection blocks, compensating for gas absorption signals and less affected by external environmental factors, resulting in stable measurements and reduced need for frequent calibration. Company Profile
>>OEM Solutions & Service Advantages
We provide OEM customization services. Contact us to discuss tailored product solutions.
1) 12-hour response guarantee for all inquiries;
2) Premium quality with industry-competitive pricing;
3) Dedicated post-purchase support system;
4) OEM/ODM compatibility;
5) Certified safety equipment specialists with expert engineering team.

>>FAQ
Q: Can I request a single sample unit for quality assessment?
A: Absolutely. We strongly advise sample evaluation before mass ordering.

Q: Could I obtain your product catalog and MOQ pricing details?
A: Our complete product portfolio is available digitally. Please browse our website for model specifications or email specific requests.

Q: What pricing advantages apply for large quantity orders?
A: Submit your complete requirements (product model, quantities, quality standards, branding specifications, payment terms, and logistics details) for optimized bulk pricing.
