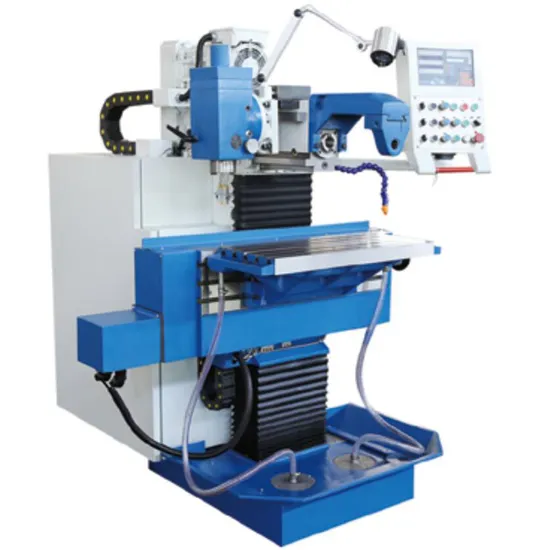

Universal Milling Machine (X8130A, X8140)

Product Description

Universal Milling Machine (X8130A, X8140)
Features:
1. Universal Tool Milling Machine;
2. Milling machine for tool construction;
3. Automatic feeds on 3 axes;
4. Digital Position Indicator.
5. Peroformance:
Powerful Tool Milling Machines;
Milling machine for tool construction;
Automatic feeds on all 3 axes;
Outer arbor supporting for horizontal milling;
Heavily ribbed cast-iron machine stand ensures maximum static and dynamic rigidity;
Steamlined arrangement of operating controls on the right side;
Vertical head quill for drilling, with hand lever feed;
Central lubrication;
Hardened guideways;
Can be enquiped with Digital Position Indicator.

Specification		Unit	X8132	X8140	X8145
Work space dimensions		Mm	750*320	800*400	850*450
Vertical table dimensions		Mm	890*225	1020*225	1190 * 250
T-slots,work table		Mm	(5)14*63	(6)14*63	(7)14*63
T-slots,vertical table		Mm	(3)14*63	(3)14*63	(3)14*63
Table load capacity		Kg	160	200	300
travels	Longitudinal(X)	Mm	405	500	600
	Transverse(Y)	Mm	305	400	450
	Vertical(Z)	Mm	400	400	450
Spindle axis-to-table surface distance	Horizontal spindle	Mm	145-545	145-545	-
	Vertical spindle	Mm	50-450	50-450	-
Speed range		Rpm	(2)40-2000	(2)40-2000	(2)40-2000
Spindle mount			ISO40	ISO40	ISO40
Feeds X Y Z axis		Mm/min	10-1000	10-1000	10-1000
Rapid feed		Mm/min	1200	1200	1200
Quill stroke		Mm	60	60	60
Main motor rating		KW	3.7	10-1000	10-1000
Feed motor rating		N.M	7.7/7.7/10	7.7/7.7/10	10/10/15
Dimensions (L*W*H)		Mm	1500*1700*1800	1500*1700*1800	1600*1800*2000
weight		Kg	1400	1500	1700

Standard Accessoires:
Complete tool
Cutter arbor (dia. Φ 16, 22, 27, 32mm)
Reducing sleeves (Morse1, 2, 3)
Spring collect (dia. Φ 2, 3, 4, 5, 6, 8, 10, 12mm)
Optional Accessories:
Dividing head
Machine vice
Universal angluar table
Rotary table
Boring head
3-axis digital position indicator

---
