6500bph Fg-4 Pet Bottle Blower

Product Description

7000BPH pet blowing machine/PET bottle blowing machine
I. Brief Introduction of PET bottle blowing machine :
FG4 series fill the gaps in the domestic high-speed linear blowing machine. Currently, domestic single-mold speed of linear blowing machine still stay around 1000BPH, while international max single mold speed has reached 1800BPH.

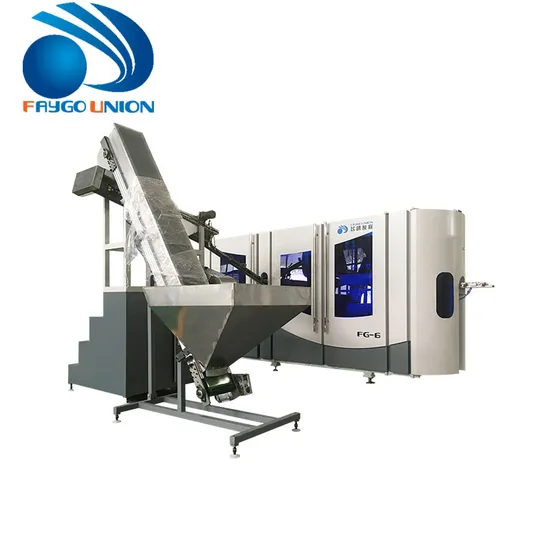

FG series blowing machine are equipped with automatic perform loading and unloading system. The machine is applicable for all shapes of drinking water bottles, carbonated bottles and hot filling bottles. FG4 is composed of three modules: prefrom elevator, perform unscrambler and host machine.
II. Technical Features of PET bottle blowing machine :
1). High Speed: 6500-8000BPH (4-cavity).
2). Less Space consumption: Machine is highly integrated, the construction is highly compact.
3). Less electricity consumption: performs intercept is shorten to the minimum, compared with common
4).blowing machine 30% electricity can be reduced.
5). High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
6). High Quality: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
7). No Contamination: Closed production zone, good self-lubrication system avoid contamination.
8). High Transparency: Easy maintenance, absolute safely, visual inspection, low noise.
III. Optional items of PET bottle blowing machine :
1. Exploded bottles ejection unit
During the blowing process, if the bottle burst, it can be automatically removed. This prevents the bad bottles into the filling machine.
2. HP air recovery system
After the bottle blowing accomplished, high-pressure air can be recycled can be used again for the pre-blowing and operational movement.
3. Oven and preform temperature detection system
Real-time detect the temperature of the oven and the temperature of the preform after heating before blowing. When the preform heating temperature does not reach the set blowing temperature blowing workstation will alarm, not blown.
IIII.Technical parameters

Type			FG4	Mark
Specifications of bottle	Mould number(piece)		4
	maxi volume (mL)		2000
	maxi height (mm)		328
	maxi diameter (mm)		105
	Square bottle for max diagonal length (mm)		115
preform Specifications	Suitable inner bottle neck (mm)		20-25
	preform max length (mm)		150
Capacity (bottles / hour) at 17 g 500mL			7200
Electricity	Install power (kw)		51
	Heating oven total power (kw)		46
	Heating oven actual power consumption (kw)		26
	Voltage / frequency (V / Hz)		380v,50hz
	Allowed voltage fluctuation		±10%
HP Air	Pressure(bar)		30
	Capacity(m³/min)		4
Cooling Water	Mold water	pressure(bar)	4-6	Water chiller 6HP
		Suitable temperature range (ºC)	6-13
		Flow (L / min)	45
	Oven water	pressure(bar)	4-6	Water chiller 3HP
		Suitable temperature range (ºC)	6-13
		Flow (L / min)	22
Machine Specification	host machine dimension (m) length × width × height		3.3*1*2.3
	Weight (Kg)		3200

Blowing Machine
Heating Oven:By rotary and soft preform loading system, the speed of preform feeding is ensured, menawhile, the preform neck is well protected.
Bottle Outlet:The machine adopts modularized design concept to make it convenient and cost-saving for the maintenance and changing changeovers.
Configuration

Item	Brand	Origin
Magnetic valve	Germany	Germany
Cylinder	Germany	Germany
Servo system	Panasonic	Japan
Frequency inverter	Mitsubishi	Japan
PLC	Mitsubishi	Japan
Touch screen	Mitsubishi	Japan
Blowing valve	Parker	USA
One-way valve	Germany	Germany
Throttle valve	Germany	Germany
Reducing valve	DURAY	Germany

It is a high-tech enterprise which is specialized in research, manufacture and marketing plastic extrusion lines.
Transportation:
It is located in the beautiful port city of Zhangjiagang with convenient traffic; it's about 150 km away from Shanghai.
Products:
PVC/HDPE/PP-R pipe extrusion line, PVC & WPC profile extruding line and plastic sheet production lines with the relative auxiliary machine, PE film/ PET bottles recycling line and pelletizing lines.
Market: Our products have been exported to Middle East, Southeast Asia, South America and Europe etc. We received the universal confirmation and trust from our customers except of the precious experience.
Idea:
Abide by the logos of "Sincerity, Development, innovation, Win-Win" constantly, we are honorable to cooperate with friends at home and abroad by providing the high quality products, technology and service!

---
