Ring Die Pelletizer for Wood Chips to Pellet Conversion Wood Pellet Machine for Efficient Wood Chip Processing

Product Description

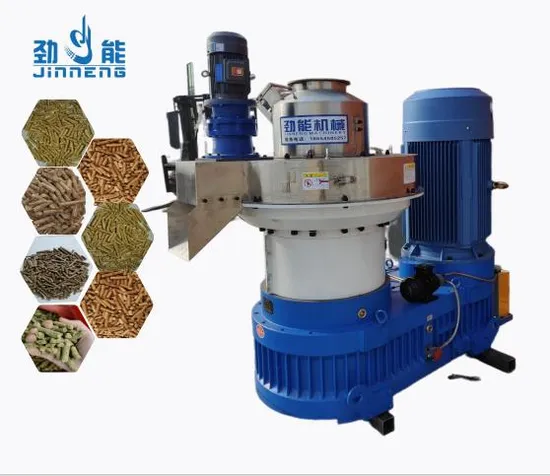

Wood Pellet Machine - JN560 The JN560 Vertical Ring Die Wood Pellet Machine is a high-efficiency equipment designed for biomass pellet making. Unlike other horizontal ring die machines, this machine features a vertical structure, making it easy to feed biomass materials, ensuring a big capacity, high pressure, and stable operation.
This wood pellet making machine is ideal for pressing low adhesive and hard molding materials, including rice husk, hard wood sawdust, sunflower seeds husk, peanut shell, wood bark, and other wood waste. It is also capable of pressing various types of straw and agricultural waste. Widely used in the biomass pellet making industry and other pellet forming industries, it offers exceptional performance and reliable results.
Specifications:
Model: JN560 Power: 132kw Capacity: 1.5-2t/h Manufacturer: Jinan Jinneng Machinery Co., LTD
MAINLY FEATURES:
1. Stainless steel double layer ring die, lifetime long, running cost low;
2. Roller shell with latest anti-wear alloy welding technology, incrase 1/3 lifetime;
3. Automatically roller lubrication system, machine can 24 hours no stop long time continaully working;
4. Strong industry gearbox inside with big modulus hard serface spiral gear strong and high efficiency, liftime gurantee period is THREE years;
5. With stainless steel pelletizing chamber cover, 304 type stainless steel, stronger and long lifetime;
6. Machine main shaft and machine main shaft bearing chamberpassed quenching and tempering treatment, best quality;
7. Gearbox oil cycline lubricating machine mainshaft bearing, high efficiency and less consumption grease.
MAINLY PARAMETERS FOR WOOD PELLET MACHINE:

Model	Power (kw)	Capacity(kgs/h)	Weight(kgs)	Dimension(mm)
XGJ560	90+2.2+0.75+0.25+3	1000-1200	4200	2300x1250x1950
XGJ560W	110+2.2+0.75+0.25+3	1200-1500	4500	2300*1250*1950
XGJ560P	132+2.2+0.75+0.25+3	1500-2000	5000	2300x1250x2100
XGJ700	160+2.2+0.75+0.25+3	2000-3000	6200	2800x1400x2100
XGJ850	220+2.2+0.75+0.25+3	2500-3500	10400	3200x1630x2300

ONE feed port

From here pour in the granulated ingredients to be made
TWO Pellet machine outlet
Baffles are arranged on both sides to prevent particles from spreading to both sides
THREE pure copper motor

All copper wire winding high horsepower high efficiency accessories complete test machine delivery
FOUR integrated design

Integrated design of motor reducer reduces transmission power consumption and improves efficiency
Jinan Jinneng Machinery Co., Ltd. is located next to the beautiful Zhangqiu ancient city, south of Jiaoji Railway Zhangqiu station, north of Jiqing Expressway, only 1 km away from Zhangqiu Station of Jiqing high-speed Railway. Covering an area of 5000 square meters, is a mechanical equipment manufacturing, research and development design, management in one of the complex modern enterprises.
Founded in 2014, the company has developed so far, with 50 employees, including 5 engineering and technical personnel. The company adopts modern scientific management mode, quoting the process technology of excellence, supporting more than 10 sets of advanced CNC precision equipment for machining, strictly controls the process and spare parts purchase channels, constantly absorbs and introduces high and new technology, vigorously promotes the technological innovation of product improvement, and establishes and improves the quality assurance of design, manufacturing, installation and service. It realizes the independent control of the whole process from R & D design to finished products, providing a sufficient basis and reliable guarantee for the stability and durability of products.
Over the years, adhere to the "quality of survival, quality and development" quality concept, in the market and the same industry has won consistent praise and good reputation.
Jinan Jinneng Machinery Co., Ltd. main products are: a full set of pellet machine production line equipment, ring mold pellet machine, flat mold pellet machine, feed pellet machine, organic fertilizer pellet machine and crusher equipment, crushing equipment, drying equipment, screening equipment, conveying equipment, cooling equipment, packaging equipment and other granulation auxiliary equipment.
Our company has professional research and development technology knowledge, with high quality products, good reputation, quality service, the products produced by our company sell well all over the country, and exported to Asia, Southeast Asia, Africa and other countries, the market prospect is broad, and strive to provide customers with better quality, fast service.
Over the years, the company has pursued the purpose of "professional management, honest service, customer first" sales and after-sales service, product sales and after-sales service throughout the country. The company strives to create superior performance, smooth operation of the products dedicated to our customers, sincerely hope in your sincere cooperation, a beautiful chapter together!

---
