Customized Specialist Warehouse Storage Rack Adjustable Cantilever Racking System

Product Description

Customized specialist warehouse storage racks adjustable cantilever racking system
Welfor cantilever rack is a type of racking that is used for storage of irregular or long items. This is achieved by eliminating obstructions and providing a clear opening in the front of the rack in lengths as long as desired. These rackings can also be decked for storage of items smaller than the spacing between towers. Tower spacing, upright capacity, and arm capacity are critical for a safe and proper system. This racking is available in roll form and structural styles. It is widely used in mechanical manufacture and architecture material supermarket enterprises.
The cantilever rack is suitable for storing long or circular material, flat products, tubes and irregular goods.

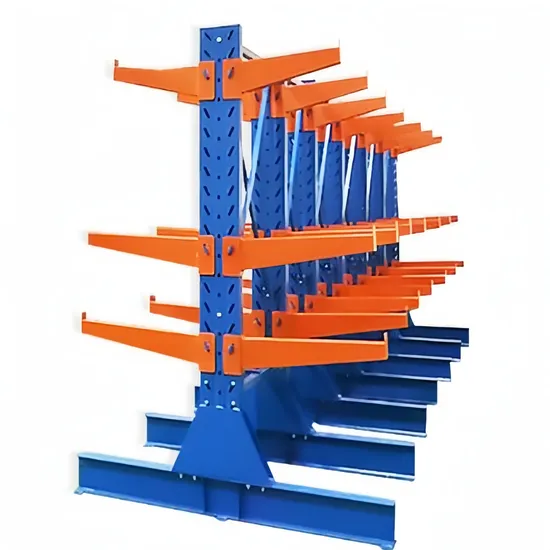

Detailed Photos
Features Designed for effective storage and handling of items such as lumber, pipes, bar stocks, timbers or other similar items This rack can be divided into a single sided or double sided cantilever rack Available with light, medium, and heavy loading capacities

Advantage
1. A big scale of output allows us in a good position to control lower product costs on a basis of same high quality level.
2. A wide range of different racking types to suit different storage needs,maximum the utilization of your space.
3. Assemble and disassemble easily and conveniently, so it can be recyclable.
4. Free but expert advice & proposed racking solutions for your kind reference.
5. We pride ourselves on short lead times and FAST delivery so you can get back to business!
6.We commitment to provide a detailed quotation and product information; promise to tailor your required products in the shortest time.
Technicial data for cantilever rack

Length (mm)	Height (mm)	Max Beaming Capacity (kg)
400	60	500
500	60	400
500	75	750
600	60	350
600	100	1000
750	70	500
750	110	1000
1000	90	500
1000	135	1000
1250	100	500
1250	155	1000
1500	110	500
1500	180	1000
1750	160	500
1750	200	1000
2000	180	500
2000	220	1000

Our Products
Please provide information for quick quotation
- Drawing (if available) of rack; if not, we can offer CAD design service for you
- Size of your warehouse (Length x Width x Clear height)
- Storage requirement on the cargo(temperature etc)
- Size (W*D*H) & weight of pallet (after loading)

- How many pallets each layer you would like
- How many layers you would like

-Parameter of your forklift ( to decide the width of aisle between racking).
-The color you want
FAQ
1, What is MOQ limitation for rack system?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.
2, What is the lead time
++ As per 20FT container loading, manufacture time is about 10-15 days; Regarding some customized items 20-25 days will be covered.
3, What is payments methods you can accept?
++ T/T and L/C are welcomed.
4, How about your sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.
5, What is warranty for your rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.

---
