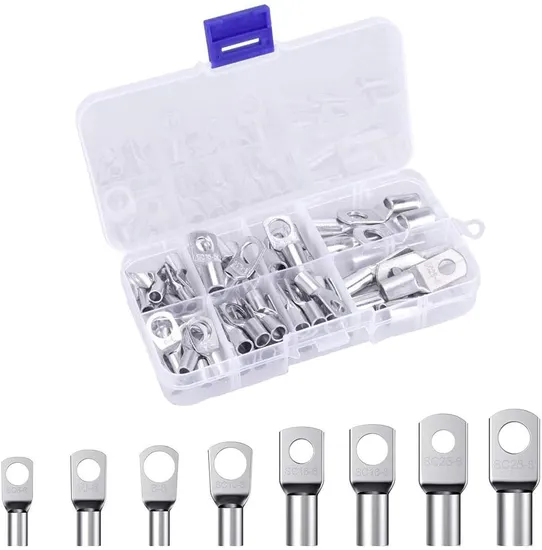

Copper Crimp Type Connectors Terminals Lugs

Product Description

UNINSULATED RING TERMINAL

WIRE RANGE	STUD SIZE		ITEM NO.	DIMENSION mm
mm2 (A.W.G.)	mm	inch		d2	W	L	F	E	d1	T	D
0.5-1.5 (22-16)	3	#4	HP-UIT-R1-3(BS)	3.2	5.7	12.5	4.8	4.8	1.7	0.75	3.4
	3.5	#6	HP-UIT-R1-3.5S(BS)	3.7
	3.5	#6	HP-UIT-R1-3.5M(BS)		6.6	14.4	6.3
	3.5	#6	HP-UIT-R1-3.5L(BS)		8.0	15.8	7.0
	4	#8	HP-UIT-R1-4S(BS)	4.3	6.6	14.4	6.3
	4	#8	HP-UIT-R1-4L(BS)		8.0	15.8	7.0
	5	#10	HP-UIT-R1-5(BS)	5.3	8.0
	5	#10	HP-UIT-R1-5L(BS)		9.8	18.0	8.5
	6	1/4"	HP-UIT-R1-6S(BS)	6.4	9.8
	6	1/4"	HP-UIT-R1-6(BS)		11.6	21.8	11.1
	8	5/16"	HP-UIT-R1-8(BS)	8.4
	10	3/8"	HP-UIT-R1-10(BS)	10.5	13.6	25.5	13.9
	12	1/2"	HP-UIT-R1-12(BS)	13.0	19.2	31.0	16.5
1.5-2.5 (16-14)	3	#4	HP-UIT-R2-3(BS)	3.2	6.6	12.5	4.5	4.8	2.3	0.8	4.0
	3.5	#6	HP-UIT-R2-3.5S(BS)	3.7			4.5
	3.5	#6	HP-UIT-R2-3.5M(BS)	3.7		16.0	7.0
	3.5	#6	HP-UIT-R2-3.5L(BS)	3.7	8.5	16.8	7.5
	4	#8	HP-UIT-R2-4S(BS)	4.3	6.6	16.0	7.0
	4	#8	HP-UIT-R2-4L(BS)	4.3	8.5	16.8	7.8
	5	#10	HP-UIT-R2-5S(BS)	5.3
	5	#10	HP-UIT-R2-5L(BS)	5.3	9.5		7.3
	6	1/4"	HP-UIT-R2-6(BS)	6.4	12.0	21.9	11.0
	8	5/16"	HP-UIT-R2-8(BS)	8.4
	10	3/8"	HP-UIT-R2-10(BS)	10.5	13.6	25.5	13.6
	12	1/2"	HP-UIT-R2-12(BS)	13.0	19.2	31.0	16.5
2.5-4 (14-12)	4	#8	HP-UIT-R3-4(BS)	4.3	8.0	18.0	7.7	6.0	3.0	1.0	5.0
	5	#10	HP-UIT-R3-5S(BS)	5.3
	5	#10	HP-UIT-R3-5L(BS)	5.3	12.0	21.4
	6	1/4"	HP-UIT-R3-6(BS)	6.4
	8	5/16"	HP-UIT-R3-8(BS)	8.4	15.0	27.5	14
	10	3/8"	HP-UIT-R3-10 (BS)	10.5
	12	1/2"	HP-UIT-R3-12(BS)	13.0	19.2	31.6	16
4-6 (12-10)	3.5	#6	HP-UIT-R5-3.5(BS)	3.7	7.2	15.7	6.0	6.0	3.4	1.0	5.5
	4	#8	HP-UIT-R5-4S(BS)	4.3
	4	#8	HP-UIT-R5-4L(BS)	5.3	9.5	19.5	8.3
	5	#10	HP-UIT-R5-5(BS)	5.3
	6	1/4"	HP-UIT-R5-6(BS)	6.4	12.0	22.5	10.5
	8	5/16"	HP-UIT-R5-8(BS)	8.4	15.0	27.0	13.5
	10	3/8"	HP-UIT-R5-10(BS)	10.5
	12	1/2"	HP-UIT-R5-12(BS)	13.0	19.2	31.6	16.0

About Factory
Shanghai Hampool Enterprise is a professional team with more than 20 years' experience in heat shrink area, dedicating to provide cable insulation products and systematic cable protection solutions. With high quality products and competitive price, Hampool has established long-term cooperation with many multinational business partners.Hampool products have been exported to more than 60 countries and regions including Europe, North America, Southeast Asia, Africa and South America.Hampool mainly provides 7 series of cable insulation and protection products: heat shrink tube both single wall and dual wall, heat shrink and pre-insulated terminals, heat shrink solder sleeves, non-shrink products, customized package, crimping and stripping tools, and other special products.Our comprehensive production lines ensure both capacity and quality.
FAQ1. How to buy your ideal products?A: You can provide us your drawings, and we will produce it as per your drawings. Or we can design it if you do not have a clear plan.2. How to pay?A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.3. What is the delivery time?A: It depends on order quantity.Generally, the delivery time will be within 15 to 30 days.4. Package informationA:For inner box and master carton are made as per international standards,and we can make special designed for you if need.And if necessary,will be packed in pallet to avoid any damage.B:Not more than 35kg per carton box,about 1000kg per pallet5.How long to make a sample?Is it free?A:7 days depending on the sample's complexity.Normally,our sample is free6.How to cantact us?A:Send your inquiry details in the below,Click "send"

---
