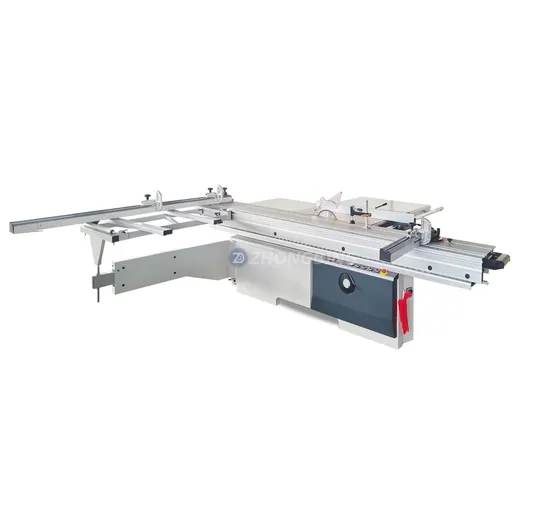

High Precision Sliding Table Panel Saw Wood Cutting Machine with Heavy Structure

Product Description

High Precision Sliding Table Saw Electronic Panel Saw Wood Cutting Machine Cutter Machine
ZDV8D
This kind of sliding table saw of our company is completely competitive.We use the Odento structure to improve machine quality.The quality of our raw materials is high.Fuselage with the national standard widening 6mm steel laser cutting, the corner at the end of the whole plate bending treatment, reduce welding, solid and beautiful without burr. Product Parameters

Dimension of sliding table	3200x388/395 mm
Gross cut capacity	3200 mm
Width of cut between saw blade and rip fence	1250 mm
Tilting saw group	0-45°
Diameter of main saw blade	350 mm
Max cutting height 90°/45°	80 mm / 55mm.
Speed of main saw spindle	4000/6000 r.p.m
Main saw motor power	5.5 kw
Main spindle diameter	30 mm
Diameter of scoring saw blade	120 mm
Speed of scoring saw spindle	8000 r.p.m
Scoring saw motor power	1.1 kw
Scoring saw spindle diameter	20 mm
Gross weight	830 kgs
Overall dimension	3250x3150x900 mm

Product Effect
With our machines, we can make high quality products.
Detailed Photos
High quality accessories
Our products has a plenty of advantages.
1.Cast iron table flatness less than 0.3mm.
2.The perpendicularity between the ruler and the table is less than 0.2mm.
3.The perpendicularity between the ruler and the table is less than 0.2mm.
4.The depth of parallelism between the ruler and the workbench is 0.6m, friction smooth and without resistance.
5.The altitude difference between the moving table and the fixed table is 0.5mm.
We have more than just these benefits, if you are interested, please contact me directly.
We can also add Panel saw optional parts. After Sales Service
Packaging & Shipping
Company Profile
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years.We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance,spare parts and technical advice.
