Ici Fabric Piling and Snagging Tester Roll Box Pilling Tester

Product Description

Product Description

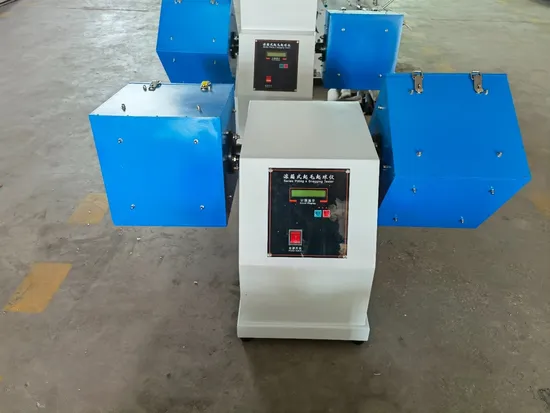

XHF-03A ICI Pilling Box is used

to determine the surface fuzzes and pilling properties of both woven and knitted materials.

Standards: EN ISO 12945.1, IWS TM152, BS5811, JIS L1076., ASTM D3939.

Features:
1. Fitted with digital electronic counter, can self-verify tester by comparing readout from them;
2. Electronic counter can record accumulated number of test cycles automatically, also easy to reset the counter, auto-stop when reach set testing times.
3. Simplified designing, more convenient to operate, and easy to maintain;
4. Synchronous speed motor drives the test boxes, ensuring constant speed of rotation.
Technical Parameter

Model	XHF-03A-2	XHF-03A-4	XHF-03A-6
Number of Pilling Box	2	4	6
Rotation Speed	60+/-2 r/min
Size of Inner Box	235×235×235mm (L×W×H)
Counter	1-99999 Auto Stop
Specimen mounting tube size and weight	32×140 mm , 52.5g
Power Supply	110V/220V, 50Hz/60Hz
Machine Size	860×480×500mm	860×480×880mm	860x480x1130mm
Weight	65Kgs	95Kgs	115Kgs

Recommendend Products

Company Profile

Packaging & Shipping
FAQ
1. How About Machines Calibration?
Answer: All machines is calibrated well in house before it is out of factory, XH Instruments will provide you calibration report, if you need calibration certificate from third party, such as ISO 17025 certificate, we also can provide you with extra charge.
2. What about delivery way and delivery item?
Answer: Courier Express Delivery, Sea Delivery, Air Delivery.
EXW Works, FOB, C&F, CIF, ClP, CPT, FCA, DDU.
3. How can I pay you?
Answer:Bank TT, Western Union, L/C, Paypal.
4. How about you after service?
Answer: XH Instruments will give a feedback within 24 hours.Warranty Period is 12 Months.
For problem caused by product quality within warranty period,XH Instruments will provide product maintenance, technical support, freight out and home as well as spare parts free of charge.
Problem not caused by product quality within warranty period or maintenance beyond warranty period is only charged for replaced parts. However, freight charges home and out are at customer' side (only the replaced part is charged if transportation of instrument is unnecessary).

---
