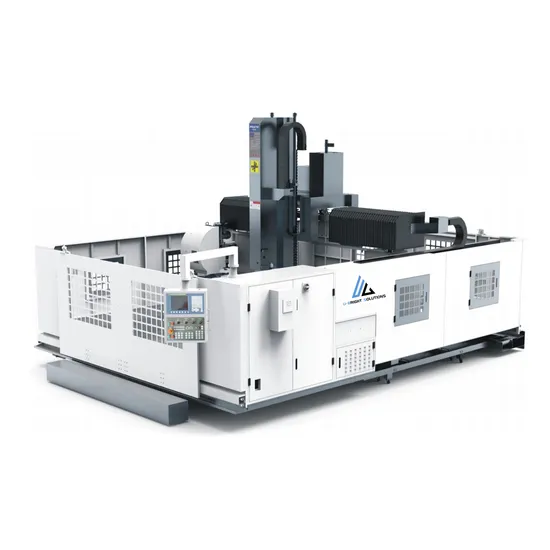

High Accuracy CNC Column Bridge Type Moving Column Beam Gantry Milling Machine Center

Product Description

Product Description

The machine for column mobile processing center, the whole machine adopts moving column, ensure the overall rigidity and compact structure, machine rigidity is good. Easy to dispose of scraps and drainage. Good precision retention, can be used for precision cutting;automotive, textile, window frame, civil aviation, motor, valve and other industries.
Applied to new energy vehicle battery trays, rail transit, mechanical manufacturing, and sheet metal processing
PHA series
PHA-CNC3000
PHA-CNC6000
(Other lengths can also be customized)
Y-axis travel 2000mm
Z-axis travel 800mm
The entire series adopts BT40 spindle tapered holes, with a spindle outer diameter of 140mm
Equipped with a disc type 24 tool magazine capacity
Equipped with automatic chip removal system
Equipped with automatic cooling system
Product Parameters

route or distance of travel	X route or distance of travel	3000-6000 (other length)
	Y route or distance of travel	2000mm
	Z route or distance of travel	800mm
principal axis	main shaft speed	10000rpm (20000rpm electric spindle)
	taper hole of spindle	BT40 OD: 120mm
tool magazine	Knife library form	disc type
	Knife library capacity	24 pcs
	Adjacent change knife time	2 sec
translational speed	X/Y axis shift	40/50 m/min
	Z axis shift	20 m/min
	Cut into give speed	15000 mm/min
operating system	FANUC	SIEMENS
Spindle drive motor	7.5 kw	11 kw
X drive motor	3.0+3.0 KW	3.1+3.1 KW
Y / Z drive motor	3.0/3.0 KW	3.1/3.1KW
lube oil system	self-lubricate
coolant passage	injection water cooling
definition	X axis positioning is accurate	0.05 mm (Rating 0.01mm)
	The Y / Z is positioned precisely	0.03/0.02 mm
	Repeat repeat precision (X / Y / Z)	0.01mm
rating of machine	Pressure demand	6 kg/cm²
	altitude	3900 mm
	floor space	6200-20000*4400 mm
	weight	17000-40000kg
