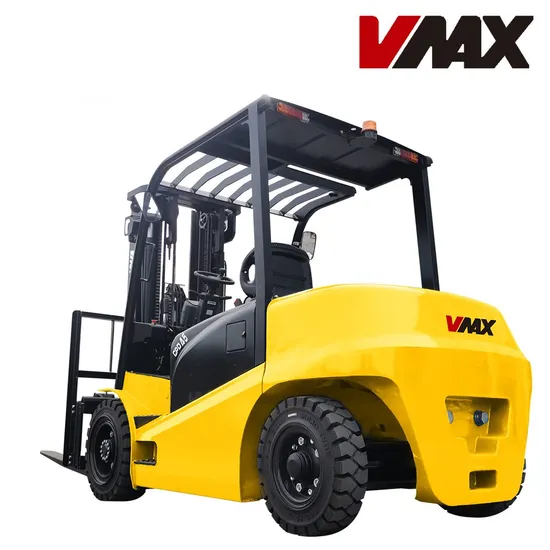

Factory Hot Sale 4.5ton Lead Acid Battery Forklift with Small Turning Radius

Product Description

Product Description Factory Hot Sale 4.5ton Lead Acid Battery Forklift with Small Turning Radius
Electric forklift driven by DC/AC power (battery), has a high energy conversion efficiency, low noise, no exhaust emissions, convenient control, in the workshop, warehouse and other places as well as food, pharmaceutical, microelectronics and instrument of environmental conditions, such as to demand higher industry widely application, be the first choice of the indoor material handling tools.
customer feedback
PRODUCT SPECIFICATIONS

NO.	Characteristics	ITEM	DATA	UNIT
1	character	Model	CPD45
2		Rated capacity	4500	kg
3		Power type	Lead Acid Battery
4		Wheel base	2050	mm
5	size	Max. lifting height	3000	mm
6		Max. height after lifting	4280	mm
7		Fork size: length×width×thickness	1070×150×50	mm
8		Overall length(fork excluded)	3135	mm
9		Overall width	1400	mm
10		Lateral fork adjustment Max./Min.	1380/300	mm
11	Performance	Travelling speed (loaded/unloaded)	13/14	km/h
12		Lifting speed (loaded/unloaded)	280/400	mm/s
13		Lowering speed	<600	mm/s
14	Weight	Total weight	6900	kg
15	Battery	Battery voltage /capacity	80/560	V/Ah
16		Battery weight	1265	Kg
17	Motor and controller	Driving motor power-60 minutes	18	Kw
18		Lifting motor power(S3 15%)	26	Kw
19		Driving motor control mode	AC
20		Service brake/parking brake	Hydraulic / Mechanical
21		Hydraulic system working pressure	20	Mpa

Product Parameters
Advantages 1.Cost-effective lead-acid battery is adopted, which has the characteristics of high-rate discharge performance, no ignitability, large temperature window, zero pollution, high recycling rate, and long service life. 2.The compact structure, small deflection, and dust-proof and water-proof design of the casting steering axleendow the forklift with long service life and working.
3.Compared with DC motor, the maximum speed of AC motor is higher, which is more compact yet more powerful. With faster start-up response, the forklift can run at full speed over short distances.
4.No need to replace the carbon brush or diverter, thus saving maintenance cost. SALES AND SERVICE NETWORK
Company Profile
Anhui Vmax Heavy Industry Co., LTD. (hereinafter referred to as "the Company") is located in Jin 'an Economic Development Zone, Lu 'an City, Anhui Province. In 2017, the Company was successfully listed in Beijing Stock Exchange with the stock code 871332. The Company offers a complete product range of material handling equipment, 1.0-18.0t internal combustion forklift, 1.0-12.0t electric counterbalance forklift, pallet truck, stacker, off-road forklift, etc.. The Company also provides customers with intelligent logistics overall solutions, as well as industrial vehicle aftermarket business which includes spare parts sales, repairing, leasing, remanufacturing, and talent training. In response to the national "Carbon Peak, Carbon Neutral" and carbon reduction "3060 target" and other major strategies, the Company has been actively committed to the new energy strategy, focusing on the development of various types of lithium and hydrogen fuel cells and other new energy products, to achieve the strategic transformation and upgrading of products and high-quality development goals.
Successful Project
Certifications
logistics mode
Customer Feedback
FAQ 1, Q: Why do you choose VMAX? A: We are stock listed company which can provide you quality and service.
2, Q: What about your quality?
A: Our parts is the top brand in China. And technology is from Japan.
3, Q: What is about your warranty?
A: One year or 2000 working hours which comes first. If during the warranty, we will send to you for free by courier.
4, Which is the port of yours?
A: Full container is to NANJING port. If LCL is to Shanghai port.
5, What about your delivery time?
A: Normally 25-30 days after receving the deposit.
6, What about your payment items?
A: 30% deposit by TT, 70% balance before shipment. We accept LC, OA, etc..

---
