Fast Galvanized Steel Roofing Sheet Press Glazed Roll Forming Machine Metal Siding

Product Description

Product Description
Shuoen's glazed tile rolling forming machine can provide a variety of surface-smooth glazed tiles for the construction of curved roofs. The steel roofing tile for construction is the latest generation of metal roofs, beautifully styled and durable, ideal for commercial buildings, tourist destinations, farmhouses, hotels, residential and residential and public and semi-public areas.

Feeding device
With handwheels for easy adjustable
Rollers
With handwheels for easy adjustable
material: grade 45# steel
treatment process: CNC precision machined, heat treatment hard chrome coated; And at last mirror-surface treatment for anti-rust, long service life and beautiful.

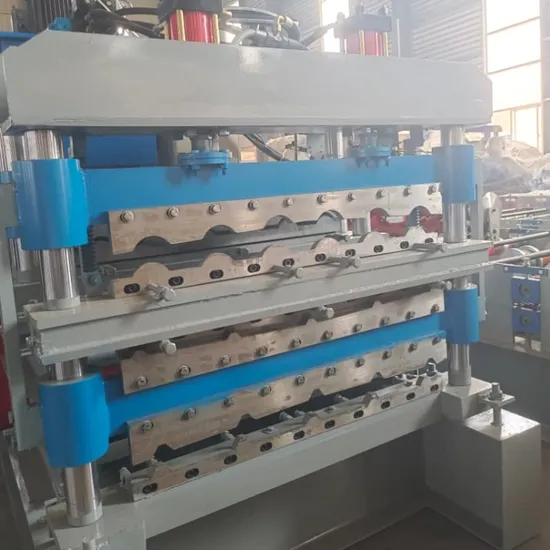

Hydraulic cutting device
Driving by hydraulic power.
With two pillars support to make the cutting processing more stable, no shake.
PLC
Adopted touch screen for easy operation.Adopted aviation plugs for easy installation.


Product Parameters

Configurations	manual decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station, PLC control system
Material	Raw material	PPGI, GI Sheet
	Coil width	1000mm/1200mm/1220mm/1250mm
	Thickness	0.20mm-0.60mm
Manual Decoiler	Inner Diameter:450-550mm	Expand by manual
	Outer Diameter: max 1500mm
	Max Coil width:1000mm
	Capacity: 5T
Main Machine	Number of Forming steps	15 steps -18 steps
	Shaft diameter	70mm solid shaft
	Design type	Middle plate welded
	Machine frame	350# H steel welded
	roller material	45# steel, surface hard chromium plating.
	shaft material	45# steel
	Work speed	10-15m/min
	Transport	By chains
	Power of main machine	5.5 kw SHANGHAI LICHAO
	Type of cutting	Hydraulic guide pin cutting
	Cutting tolerance	±1mm
	Cutter	Gcr12MOV
	Cutter quantity	1 set
	Working pressure	20MPA
Hydraulic system	Hydraulic oil	46#
	Hydraulic power	3kw
	Cutting length	As required
	No distorting or wasting. High level safety factor.
Control Device	PLC control	PLC DELTA, TAIWAN
	PLC language	English and Chinese
	Transducer	7.5KW Delta, TAIWAN
	Touch screen	7 Inch large screen, DELTA, TAIWAN
	Function	Automatic length and quantity measurement
	coder	Omron, JAPAN
	Other electrical device	International brand
	Weight	About 5.5 tons
	Dimension	About 6500*1500*1700mm L*W*H
	Main body color	Yellow and blue
	Voltage	380v/50hz/3ph

Common Profile We Make
Features at a Glance
Our glazed tile rolling forming machine can be customized according to the specific requirements of our customers to ensure that they perform well in terms of stability and production efficiency. Shuoen Machinery is known for offering competitive prices and excellent product quality.
Flow chart: Decoiler--Manual prectting--Material Guiding--Roll forming M/C--Hydraulic System--Post Cutting--Exit Rack
Packaging & Shipping
1.1*40GP container for loading one set machine with roll forming machine.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope)
3. Spare parts and operating tools are loading in tooling box.
Company Profile
We, Tangshan Shuoen is a professional cold roll forming machine manufacturer, We have been focusing on this field for 10 years. Our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoiler, light keel roll forming machine, purlin machine, leveling and slitting machine, and other related construction equipment.Shuoen has employed a team of engineers for more than 10 years. At the same time, our machines use branded electrical components, raw materials from branded steel factories, strict process control, two-year warranty, installation and training services.Our customers are all over the world, such as 65 countries in Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, South Africa, Kenya and other different regions. We have extensive experience in the needs of different countries, such as profile, thickness range, use, installation, etc.Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.
Certifications

FAQ
Q1. How long is your warranty period?
Within 12 months from the date of self loading, we guarantee that no malfunctions will occur due to manufacturing defects.
Q2. How can I trust the machine to paste and test before shipment?
We have recorded a test video for your reference. Alternatively we welcome you to visit our factory and personally test the machines.
Q3: If you can customized the roofing sheet forming machine for i need?
Yes, Just share your design to us is ok, we will give you one fully quotations.
Q4: What's your after-sales service ?
We provide 24-hour online service for our customers.
And we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers' workshop if needed.

Q5: What's your delivery time ?
Normally we can finish production and testing within 45-70 days after receiving deposit. Some machines in stock, can be delivered at any time.

---
