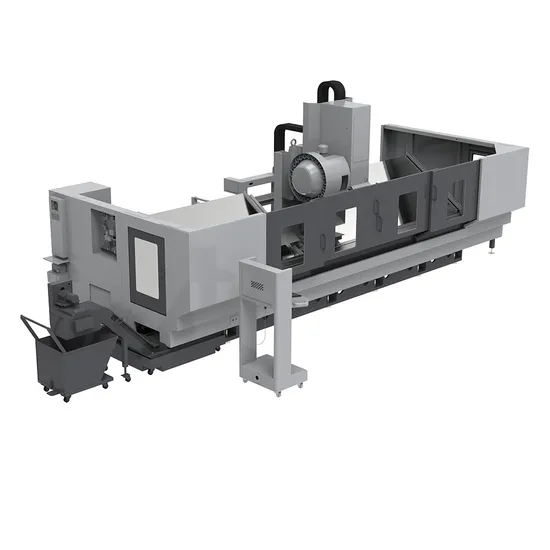

2024 Mingju Cfv5-3000 CNC Pentahedron Machining Center with Moving Column

Product Description

CFV5-3000 Pentahedron Moving Column Machining Center Product Parameters

No.	Items	Unit	Specification
1	Spindle A	°	±110
2	A-axis rotation speed	Rpm/min	25
3	Spindle speed	RPM	10-3000
4			(Can be confirmed based on user's needs)
5	B1, B2 split angle	°	0.001
6	Manual chuck parts clamping size adopted by B1 axis	MM	Φ60-700
7	B-axis speed	Rpm/min	30
8	B axis center to ground	MM	Approx. 900
Travel
9	X-axis travel	MM	3000 (tentative)
10	Y-axis travel	MM	550
11	Z-axis travel	MM	550
12	Distance from spindle nose to	MM	100-650
13	B axis center
14	Linear Guideway Width	MM	X: 55 (roller),
15			Y: 45 (six slider rollers)
16			Z: 45 (six slider rollers)
Spindle
10	Spindle taper		BT50
11	Spindle speed	R.P.M	3000rpm
			direct-connected mechanical spindle
Automatic tool exchange system
12	Tool exchange method		Disc type
13	Number of tools	set	24
14	Tool change time (TT)	sec	≤ 5
Feed speed
15	Cutting speed	MM/min	1~ 20000
16	Rapid traverse speed	MM/min	20, 24, 24
Accuracy
17	Positioning accuracy	MM	0.01\m
18	Repeat positioning accuracy	MM	X:0.005mm \ m
Spindle motor
19	Rated Power	kw	15\18.5KW
	Three-axis servo motor
Ball screw
20	Ball screw diameter/pitch	MM	X: Φ 50 / 12,
			Y: Φ 50 /12,
			Z: Φ 40 /12
21	Chip removal method		Chain plate chip removal
Other
22	Power Requirements		3Ф380V, 50HZ, 60KVA
23	Required air pressure	MPa	0.6
24	Cooling motor power	KW	≥2.0
25	weight of machine	Kg	14000
26	Machine size (length x width x height) approx.	mm	5600*3260*2900
28	Machine color (sheet metal)		Cool white (RAL9003, according to Buyer's color code)

Product Description
1. The machine is a moving column structure, which enables three-axis, four-axis, or five-axis simultaneous operation. The machine can perform drilling, milling, tapping, boring and milling and other processing of various products.
2. The whole machine is made of high-quality HT 300 castings, which are treated by secondary tempering and natural aging to eliminate internal stress.
3. The base adopts one-piece casting to provide the most stable load-bearing capacity. The water guide plate design prevents leakage of cutting fluid.
4. Oil separation device and cutting fluid filtering function.
5. Mechanical transmission spindle: The main body is assembled with P4 grade bearings to ensure low vibration at all speeds; direct-connected mechanical spindle is standard configuration, and belt drive or integrated electric spindle is optional configuration.
6. Built-in pipeline: Prevent the cutting fluid of the chip machine from corroding the pipeline.
7. Equipped with BT50 direct-connected mechanical spindle, automatic loosening, pulling, and locking of tools. The tool change can be automatic, which according to the requirement of customer, using 16-tool umbrella type tool magazine or 24-tool disc type tool magazine. The time for changing adjacent tools is less than 5 seconds.
8. The device is equipped with a three-color indicator light, which is installed in the upper front of the operation box and can be clearly seen at every position.
9. The equipment electrical control cabinet is equipped with a convection heat dissipation device to effectively carry out heat exchange.
10. The machine and fixture operation buttons are set on the external operation panel. After the operator installs the workpiece, he can operate it externally. The equipment has a safety interlock function (in automatic state).
11. The equipment operation buttons are waterproof (buttons used by operators, start, pause, emergency stop, safety door start, close), and the operation panel is cabinet-type and movable.
12. The machine has the function of travel limit alarm for each axis to prevent equipment damage.
13. All circuits must be marked with line numbers.
14. The machine structure is reasonably designed, with sufficient static, dynamic and thermal rigidity, and adopts mature advanced technology to ensure that the system has good dynamic quality as well as continuously process at high speed & stability for a long time. The selected servo drive system has high precision, good reliability, and fast response speed; the X-axis adopts precision rack and pinion drive, which enables high-speed operation, and can also adopt precision screw drive to ensure high precision. The Y-axis and Z-axis adopt precision ball screw drive.
15. Tool magazines for tool selection and tool change according to the requirement of customer, with the ability to set large and small tools and pre-select tool functions.
16. The machine base is equipped with horizontal adjustment feet, which facilitate overall adjustment of the machine horizontal.
17. The machine safety door has a door interlock safety function. The door opening is greater than 0.9 meters for easy operation, and the door is equipped with an observation window and steel grille protection; full-cover sheet metal, energy-saving LED lighting; added safety interlock.
18. The design and manufacture of this machine complies with the standard of International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC), and complies with the relevant national standards (GB, GB/T). The design concept and structure of the machine shall be subject to the manufacturer.
