US$23,000.00-30,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Certification
CE, ISO9001: 2000
Power Output
36.2kw/2100rpm
Hydraulic System
Kyb, Japan
Main Control Valves
Kyb, Japan
Max. Digging Height
5889mm
Max. Dumping Height
4201mm
Max. Digging Depth
3812mm
Max. Digging Distance
6257mm
Transport Package
Load 2 Units in One 40hq Container
Production Capacity
1200set/Year
Product Description

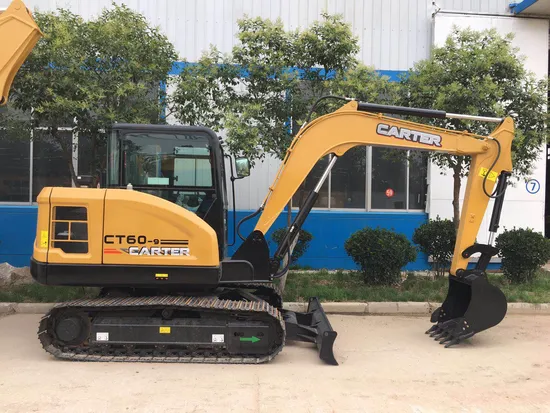

Name:Carter CT60-9 Excavator
Advantage Points:
1. Imported hydraulic system with dual pump and dual circuit, stable work performance, fast speed.
2. Guarantee for 2 yrs under normal use and maintenance
3. Imported hydraulic components, Japan made KPM main pump, Japan made KYB multi-circuit Valve, swing motor,Eaton travel motor, Japan made or South Korea made gasoline tank
4. On-line digital monitoring and control system
5. GPS satellite position and remote diagnose system(optional)
6. Cold&warm air conditioner supply under different kinds of weather conditions
7. Light and handy pilot operating system
8. Steel pedrail
Products Pictures:
Specification:
| Engine | Travel System |
| Model | Yanmar 4TNV94L | Travel motors | KYB, Japan; |
| Type | Direct injection, 4 stroke, water cooled, natural intake | Support roller quantities | 2×5 |
| Carrier roller quantities | 2×1 |
| No. of cylinder | 4 | Travel shoes | 2X37 |
| Bore and stroke | 94X110(mm) | Travel speed | 2.5/4.0(km/h) |
| Displacement | 3.054L | Drawbar pulling force | 50.4kN |
| Power output | 36.2kw/2100rpm | Gradeability | 70%(300) |
| Max. torque | 193.2~210.6N.m/1260±100 rpm | Track shoes thickness | 6mm |
| Hydraulic System | Cab & Electrical System |
| Pump | KYB, Japan | Cab | installed with silicon oil rubber, adjustable luxurious seat, cold and warm air-conditioning system plus flexible pilot control system |
| Type | axial piston pump+ gear pump |
| Max. discharge flow | 160 (L/min) |
| Max. discharge pressure |
| Boom, arm and bucket | 24.5 MPa | Voltage | 12V |
| Travel circuit | 18.6 MPa | Batteries | 1x12V |
| Swing circuit | 20.5 MPa | Battery capacity | 80Ah |
| Control circuit | 3.9 MPa | Boom, Arm & Bucket |
| Pilot control pump | Gear type | Boom cylinder | Φ110xΦ65xS720-L1095 |
| Main control valves | KYB, Japan | Arm cylinder | Φ85xΦ55xS880-L1280 |
| Oil cooler | Air cooled type | Bucket cylinder | Φ80xΦ50xS600-L925 |
| Swing System | Refilling Capacity & lubrication |
| Swing motor | KYB, Japan | Fuel tank | 125 L |
| Swing motor type | Axial-piston motor | Cooling system | 15 L |
| Brake | Hydraulic oil released | Engine oil | 10.5 L |
| Parking brake | Hydraulic disc brake | Hydraulic oil tank | 78 L Tank Oil Level |
| Swing speed | 10 r/min | 100 L Hydraulic System |
| Bucket |
| Type | Backhoe bucket |
| Bucket capacity | 0.22m3 (SAE) |
| Bucket Capacity scope | 0.072-0.25m3 |
| Number of bucket teeth | 5 |
| Bucket width | 750 mm |
| Working Ranges |
|
| Boom length | 3050mm |
| A | Max. digging height | 5889mm |
| B | Max. dumping height | 4201mm |
| C | Max. digging depth | 3812mm |
| D | Max. vertical digging depth | 3008mm |
| F | Max. digging distance | 6257mm |
| G | Max. digging reach at ground level | 6102mm |
| H | Min swing radius of work equipment | 2585mm |
| Digging Force (ISO6015) |
| Arm length | 1580mm |
| A | Bucket digging force | 36.7 KN |
| B | Arm digging force | 26.1 KN |
| Overall Dimensions |
| A | Overall length | 5943mm | I | Track grounding length | 2000mm |
| B | Ground contact length | 3375mm | J | Track length | 2665mm |
| C | Overall height(to top of boom) | 1995mm | K | Track gauge | 1600mm |
| D | Overall width | 2000mm | L | Track width | 2000mm |
| E | Overall height(to top of cab) | 2619mm | M | Track Shoe width | 400mm |
| F | Counter weight ground clearance | 740mm | O | Counter weight height | 1062mm |
| G | Min Ground clearance | 360mm | P | Revolving frame width | 1790mm |
| H | Tail swing radius | 1745mm | Q | Distance from swing center to tail | 1745mm |
|
| Operating Weight and Ground Pressure |
| Operating weight includes basic machine; |
| Operating weight | 5820 Kg |
| Ground pressure | 34 KPa |
>>
