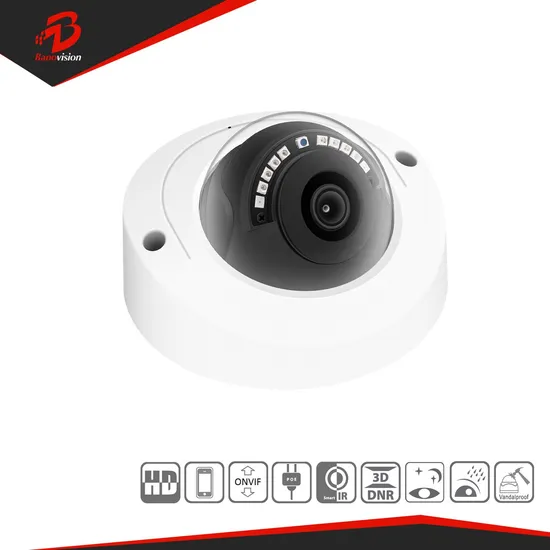

2MP Security Surveillance CCTV IP Network Vandal Proof Mini Dome Camera

Product Description

Features • 1/2.8" SONY IMX307 CMOS sensor
• Max. 2MP resolution 1920x 1080 output
• low illumination 0.1Lux
• Day/Night (ICR),AWB, 2D/3D-DNR, IR-CUT
• D-WDR, Motion Detection,Human Body Detection,Privacy Mask, Mirror, rotate
• RTSP and Onvif 2.4 compatible
• H.265/H.264 dual-stream media server
• Easy-to-use P2P Cloud service
• Multi web browser, PC Client, mobileAPP remote access
• Optional customization Lens/Audio/POE, etc.
• Strong Vandal-proof housing, IP66
• 10PCS SMD IR Leds,IR Distance:10-15M
• 3.6mm Lens
Product Description

Model	BA-ND10A20H
Camera
Image Sensor	1/2.8" Sony IMX307 CMOS
Effective Pixels	1920(H)×1080 (V)
Electronic Shutter	AUTO, 1/25s ~ 1/100000s
Min. Illumination	0.1Lux@F1.2(AGC ON), 0Lux IR on
Day/Night	Auto/Color/(B/W)/Timing
WDR	Digital WDR
White Balance	Auto
AGC/BLC	Support
DNR	2D/3D DNR
Other	Multi-lines OSD, Motion Detection, Human Body Detection, Privacy Mask, Mirror, Rotate
Encode
Embedded Solution	SSC335+IMX307
Video Standard	H.264/H.265
Video Resolution	Main stream: 25fps /30fps@1080P/720P
	Sub Stream: VGA(640x480)/360P/QVGA@25fps, etc.
Video Bitrates	32Kbps ‐ 8Mbps, VBR/CBR
Audio Standard	G.711‐u
OSD Overlay	Title and Time overlay
IR Led
IR Led	10PCS SMD IR Leds
IR Distance	10-15 M
Lens
Focal length	3.6mm Lens
Optional Function
POE, Audio, etc.
Network Services
Protocol	HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.
P2P	Yes
Web	IE , Firefox esr.
Media	CMS, Android, IOS
ONVIF	2.4 compatible
General
Network Port	1-RJ45, 100Mbps, POE optional
Power Supply	12 VDC ± 10%
Power Consumption	< 5 W
Operating Temp.	-30ºC-(+60)ºC, 10%-90%RH

Our Service
OEM Service:
We offer OEM and ODM services for our clients.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
How to oder from us?
1) Please confirm the model numbers and quantities that you would like to purchase to our sales person,
or email to us.
2) We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges
once you confirm the order.
3) After you arrange the payment and send us your bank slip, we will put your order down to production,
and let you know the delivery date in 2 days.
4) When the goods are finished, we will send them by air express,or by sea or other available shipping method appointed by customers, and let you know the tracking number and estimated time of arrival.

---
