| US$1,000.00-60,000.00 | 1 Set (MOQ) |

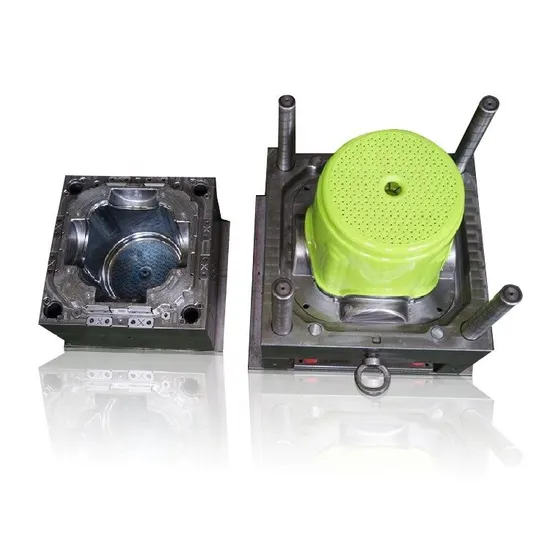

| Plastic Injection Mold | |||||||||
| Product Material | ABS, PA, PA66+30GF, PBT, PC, POM, PP, PE, MA,PVC,TPE,TPU etc | ||||||||
| Material of Steel | 738,718,NAK80,S136,P20 etc | ||||||||
| Surface Requirement | Smooth, Polishing, Painting, SandBlasting, Electroplate, Silk-screen, Laser Etching, Anodizing,Brushing | ||||||||
| Tolerance Request | UP to (±0.005mm) | ||||||||
| Mould Life | 500000-1200000 shoots | ||||||||
| Multi Injection | Single/Double/multi color | ||||||||
| Design Software | Pro/E,UG,Catia,Woodwork,Moldflow,AutoCad | ||||||||
| Injection System | Hot /Cold Runner | ||||||||
| Inserts(cavity and core) | H13, 1.2344, 1.2738, 1.2083, 1.2311, NAK80 or the material you required | ||||||||
| Mold Cavity | 1*1,1+1,1*2,1+1+1,etc | ||||||||
| Gate type | Side gate,Sub gate,Pin point gate,Edge gate etc | ||||||||
| Ejector System | Stripper plate,Lifter,Push bar,Ejection pin etc | ||||||||
| Steel Standard | FINKL,Assab,DAIDO,LKM,Buderus | ||||||||
| Cooling | Baffles/Sprin Piple/3D printing water line | ||||||||
| Standard Parts/Cylinders | DME/HASCO/PROGRESSIVE/MISUMI/Parker/HP/Merkle | ||||||||
| Design Capability | DFM,Mould flow analysis,Product optimization, Full 2D & 3D mould design,Reverse engineering,Collaborative design with customer's idea | ||||||||
| Documents / Reports Provided | Fully drawing,Weekly Processing Report, Steel Dimension report, Processing Report,Sample Dimension Report | ||||||||
| Certificate | ISO9001 ISO14001 | ||||||||
| MOQ | 1sets | ||||||||
| Lead Time | 6-10 weeks or according to the order requirement | ||||||||
| Payment | 40%Deposit, 30%Before Product Inspection, 30%Before Shipment | ||||||||
| Port of loading | SHUNDE/GUANGZHOU/SHENZHEN | ||||||||
| Cooperate with the relevant vocational and technical colleges to help their graduated students provide them internship job, during then select those who's ability is excellent(20 out of 100 people), to ensure that the technology is passed on, and the new blood in creativity. |
| Quote: According to sample, drawing and specific requirement. ↓ Discussion: Mold material, cavity number, price, runner, payment, etc. ↓ S/C Signature: Approval for all the items ↓ Advance Pay: 40% by T/T ↓ Product Design Checking: We check the product design. If some position is not perfect, or can not be done on the mould, we will send customer the report ↓ Mold Tooling: We start to make mold after mold design confirmed ↓ Mold Processing: Send report to customer once each week ↓ Mold Testing: Send trial samples and try-out report to customer for confirmation. ↓ Pay :30% by T/T on trial samples ↓ Mold Modification: According to customer's feedback ↓ Balance settlement: 30% by T/T after the customer approved the trial sample and mould quality. ↓ Delivery: Delivery by sea or air. The forwarder can be designated by your side. |
