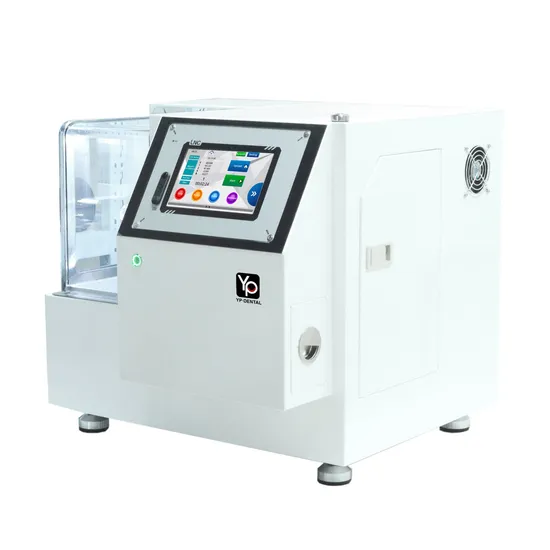

Dental CAD Cam Zirconia Cutting Machine 5 Axis Dry Milling Machine

Product Description

D500 Milling Machine: The D500 is a compact, easy-to-operate and precise dry-milling five-axis dental milling machine.
The five-axes movement is controlled by a servo motor system, enabling it to quickly and stably complete the processing of various dental soft materials in the CAD/CAM process.
The D500 highly suitable for various applications such as crowns,
bridges, inlays/onlays, zirconia veneers, zirconia abutments, full arches, PEEK frameworks. Features High-performance spindle * The maximum speed of the spindle is 60,000 rpm
* The horizontal design of the spindle provides better rigidity and stability
* Air-cooled spindle does not require a water cooling system Five-axis simultaneous for high-precision milling
* A axis:±25°
B axis:360°
* Processing accuracy can reach 0.005mm High-reliability servo motor system * Fully servo motor system * To ensure long-term precise processing
* Processing Time: Zirconia: 8min, Wax: 3min

Technical Specifications
Device Name	YP Dental D500 Miling Machine
Device Size	580mm'570mm*520mm
Device Weight	80kg
Power input	Single Phase AC 220V 5060Hz 5kW
Air-pressure input	Above 0.6Mpa
Spindle Speed	60000rpm/min
Spindle Power	500W
Spindle Cooling Method	Air Cooling
Processing Accuracy	Positioning accuracy:0.01mmRepeated accuracy: 0.005mm
Rotation AxisAngle	A axis: +25'. B axis:360'
Clamp	98.5mm diameter disc clamp
Tool Diameter	4mm
Number of Tools	5
Tool Changing Method	Automatic tool change
Processing Method	Dry miling
Processing Materials	Zirconia, Wax,Resin,PMMA,PEEK
Processing Time	Zirconia: 8min, Wax. 3min

Company Profile
Anyang Yingpai Dental Material Co.,ltd. ever been named Linzhou Chengjiao Dental Material Co.,ltd, which set up in 1998. It is located in Shangguan Town, Hua County, Anyang city, Henan province, China. In accordance with the thousand of rusic folkway of central plains.
Honest, specialization and high-grade ae our operation object. We specialize in the production and development of the synthetic resin teeth with the precise and keep-high quality, good reputation, best service. We have make a long time business relations with the customers from the Europe market, Asia market, USA market, Africa market and latin America market.
The manufacturing and R&D of the production. Through choosing the international advanced production principle and technology, we can make each kind synthetic resin teeth. W have 28kinds regular anterior teeth and posterior teeth, of course, we can make the special teeth for you as your order.
Through choosing the international advanced CAD/CAM and vacuum-filling manufacturing process, we make our product to reachthe internation advanced level on the shape, wear-resistance and the shade. Our products are famous for the vivid shape, compact tissue, perfect articulation, strong chew and the clear pronunciation.
FAQ
1. who are we? We are based in Henan, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(5.00%),Mid East(5.00%),Africa(5.00%),Eastern Europe(3.00%),South Asia(3.00%),Eastern Asia(3.00%),South America(3.00%),Central America(3.00%),Western Europe(2.00%),North America(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Oceania(2.00%). There are total about 101-200 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Resin Teeth,Dental Material,Dental Consumables 4. why should you buy from us not from other suppliers? Through choosing the international advanced production principle and technology, we can make each kind synthetic resin teeth. W have 28kinds regular anterior teeth and posterior teeth, of course, we can make the special teeth for you as your order. 5. what services can we provide? Accepted Delivery Terms: FOB,CIF,EXW; Accepted Payment Currency:USD; Accepted Payment Type: T/T,Western Union; Language Spoken:English,Chinese

---
