Ec-770 Portable Digital Plated Layer Paint Coating Thickness Gauge

Product Description

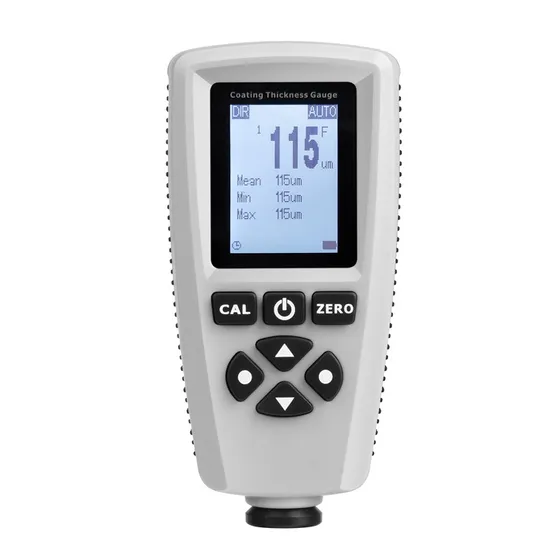

EC-770 Standard Measuring Coating Thickness Gauge
Product Description
Specifications DESCRIPTION:
EC-770 series of thickness gauges support non-destructive measurement of metal surface non-conductive coating, as well as ferromagnetic metal (such as iron, nickel, cobalt) surface non-ferromagnetic metal coating thickness, specific uses include measuring iron, stainless steel surface paint or galvanized layer thickness, measuring aluminum, copper surface paint plastic film thickness.

FEATURES: • Ruby probe • Resolution up to 0.1μm • Measuring range 0~2000μm • Display minimum, maximum, average • Red backlight over-limit alarm • Standardized menu interface • Record data and transfer to computers • Support user calibration • Maximum measurement speed 2 readings/sec • Manually rotate the screen • Display with backlight • Automatic shut-down • Battery protection

APPLICATION: • Testing of automotive paint thickness • Ship manufacturing • Metal Anti-rust Treatment • Film thickness detection • Hardware processing

Model	EC-770	EC-770S	EC-770SE
Probe position	Internal		External
Measuring principle	Fe: magnetic induction; NFe: eddy current effect
Measuring range	0~2000μm
Accuracy	±(2.5%+1μm)	±(2%+1μm)
Resolution	0.1μm (0~99.9μm ); 1μm (≥100μm)
Unit	μm, mm, mils
Calibration	Zero calibration, point calibration
Statistics	Number of data, maximum, minimum, mean, standard variance
USB data transmittion	Support
Storage capacity	320 measurements	2000 measurements
Probe triggering force	0.3~0.8N
Minimum radius of curvature of substrate	Convex 5mm
	Concave 25mm
Minimum measurement area	Diameter 15mm	Diameter 10mm
Minimum substrate thickness	Fe: 0.30mm; NFe: 0.05mm	Fe: 0.20mm; NFe: 0.03mm
Maximum measuring speed	2 readings/sec
Display	Dot Display
Operating environment	Temperature: -10~+50ºC; Humidity: 20~90% RH (non-condensing)
Storage environment	Temperature: -20~+60ºC; Humidity: 20~90% RH (non-condensing)
Power supply	2 AAA 1.5V alkaline batteries
	2 AAA 1.2V rechargeable batteries
Protection class	IP40
Dimension	114*53*25mm		Host:114*53*25 mm
			Line:Φ3.5*1000mm
			Probe:Φ17*67mm
Material	ABS		Host: ABS
			Probe: stainless steel
Weight	About 80g(without batteries)		About 140g(without batteries)
Standard	CE, ROHS, ISO 2178, 2360, GB/T 4956-2003, 4957-2003, JJG-818-2005

Product Display

Packing List
Application
Company Profile
FAQ
Q. Do you make custom products?
A. Yes, we offer OEM/ODM solutions for our clients.

Q. How long is your lead time for samples?
A. 5-7 days. For bulk orders, 10-30 days depending on the quantity.

Q. What is your terms of payment?
A. 100% for small orders. 30% in advance as deposit and 70% balance before the delivery.

Q. How can we pay?
A. You can pay via T/T, PayPal and Western Union.

---
