Waste Tire Recycling Machine/ Waste Tire Cutting Machine Price

Product Description

waste tire recycling machine/ waste tire cutting machine price my friend
we have tire recycling machine

thanks to add me

this is auto line
the below is semi line
GENERAL
This production line including main machine and accessorial equipment, it is used for recycling scrap-tire (steel tyre and textile tyre), the final product is rubber powder or reclaimed rubber
we also have semi-automatic tire recycling machine


*6: there is 3 types of rubber crusher, you can choice the suitable one ,it is depend on the output!
#9: you donot need Granulator Grinder if your final rubber powder bigger than 30 mesh. but we need it if the powder less than 30 mesh and the number of this machine depend on the output!
3. Analysis for output
30-40mesh: 2500-4500kg/24 hour
40-60mesh: 2000-3500kg/24 hour
60-80mesh: 1500-2600kg/24 hour
XKP400 rubber crusher:
Output: 4500-6000kg/24 hour for about 20 mesh granule.
XKP450 rubber crusher:
Output :7000-12000kg/24 hour for about 20 mesh granule.
XKP560 rubber crusher:
Output : 10000-17000kg/24 hour for about 20 mesh granule.
4. XMF330 Rubber refine grinder
We give one year quality guarantee and long-term technical support. We can also train your workers for free. If you need, we can install and assemble the machine in your workshop.
1.Main working process
2.Debeader ( oil hydraulic type)
Model: LS 1200
Capacity:20-40 tires/hour
Pulling force(T): 13
Max.tire diameter 1200mm
Power(KW): 11KW
Stroke distance: 1300mm
Dimension(L*W*H): 3.6*0.78*1.02
Weight: 2500KG
3.Whole tire cutter(used for bigger than 1200MM tyres , if the diameter of your tyre is smaller than 1200mm, no need this )
Model :WTC1200
Capacity:3500kg/h
Motor power:5.5kw
Tire range:Max 1200mm

Dimension:2080*1000*2130mm
4.Whole tyre shredder

Model	ZPS-900	ZPS-1200
Production capacity	0.8-2 Ton/hour	1.5-3 T/h
Size of feeding	≤900 mm whole tyre	≤1200 mm whole tyre
Discharging particles	≤50*50mm	≤60*60mm
Motor powder	45 kw	155 kw
Discharging motor	2.2 kw	4 kw
Cutter rotate speed	16 r/min	31 r/min
Screener rotate speed	6 r/min	8 r/min
Dimension (L*W*H)	2.8*2.1*2.4 m	5.2*2.8*3.5 m
Weight	9.2 T	14.8 T

Details :
Knives material: H3 , Germany standard, forged, heat treatment by high frequency, some factory only use 45# steel, the Price is more cheaper(only 1/3 of H3 ), but the life is more shorter! The life of the knives is the most important for the shredder machine.
r machine.
5.Final Products(50x50mm tire blocks):
6.tyre crusher

Type	XKP-400	XKP-450	XKP-560
Front roll diameter(mm)	400	450	560
Rear roll diameter (mm)	400(grove roller)	450 (grove roller)	510 (grove roller)
Working length of rolls(mm)	600	650	800
Front roll surface speed(m/min)	17.32	23.2	25.56
Friction ratio	1:1.38	1:1.38	1:1.30
Max.nip(mm)	8	8	15
Production capacity(kg/h)	200-300	600-800	-1500
Motor power(kw)	45	55	75
Overall dimension(mm)	3950*1800*1780	4770*1846*1835	5064*2284*1978
Weight(kg)	7000	12000	18000

7.Fiber separator
Capacity:500-1000kg/h
Motor power:5.5*2+0.75 kw
Dimension:1.5*1.5*3.4(m)
Weight:about 1.5T

No	Name	model	quantity	Power
whole tire pre-processing , you will get < 50*50MM rubber crumb
1	Ring cutter	QQJ-20	1	5.5 KW
2	Strip cutter	QTJ-380	1	5.5 KW
3	Loop machine	YQJ-285	1	15KW
4	Block cutter	QKJ-45		11KW
Rubber powder processing: you will get 3-8 MM rubber powder,at the same time, separate the fiber and steel wire
5	Tyre crusher	XK560	1	75 KW

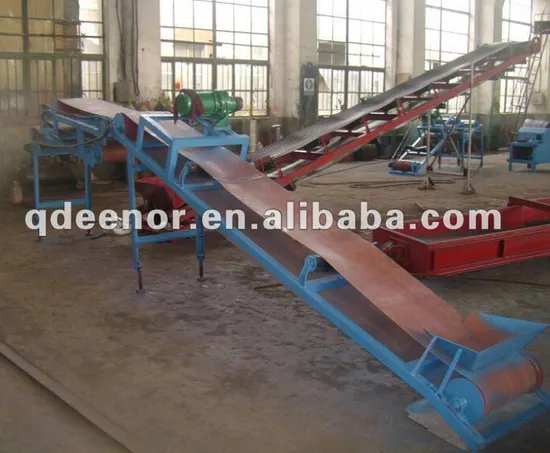

6	Big conveyor equipment	BCL-8	2	2 KW
7	Small conveyor equipment	BCL-3	1	1.1 KW
8	Big Magnet separator	BMS22	1	2.2 KW
9	Small Magnet separator	SMS-1	1	1.1 KW
10	Big Shaking screen	BSS-8	1	7.5 KW
11	Small Shaking screen	SSS-3	1	3 KW
12	Fiber separator	FS110	1	11 KW
13	Fine grinder	XMF420	1	32.4 kw
14	Circle shaking screen	DIA600	1	2.2 kw

---
