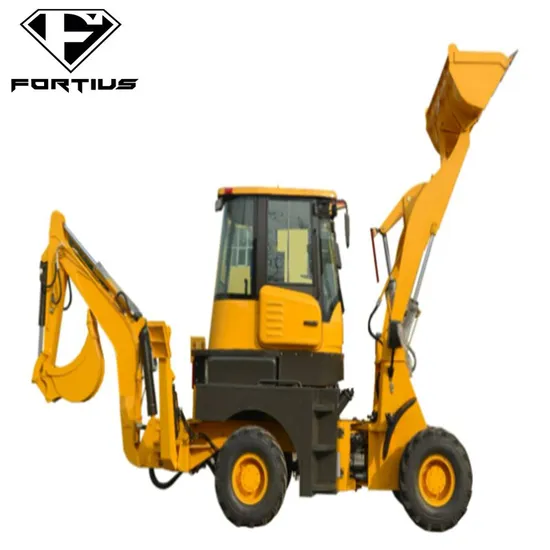

China Factory Backhoe Capacity 50HP 80HP 0.3cbm 1cbm Bucket 500kg 600kg 1000kg Mini /Small Tractor Excavator Digger Backhoe Loader with Low Price

Product Description

Product Description
China Factory Backhoe Capacity 50HP 80HP 0.3cbm 1cbm Bucket 500kg 600kg 1000kg Mini /Small Tractor Excavator Digger Backhoe Loader With Low Price
1. Luxury enlarged cabin, luxury seat , Cabin with hydraulic forward tilting function, easy maintenance.
2. The top canopy of the cabin can be removed for container delivery.
3. Streamline enlarged fuel tank with tilting oil port, easy to refill
4. Hydraulic componentes use famous brand , with long working life and stable performance; oversize water tank,high-temperature resistant;
5. Large radiator suitable for very hot area.
6. Hydraulic steering system , easy to control
7. Hydraulic walking, with Chinese best torque converter,contiuously variable transmission;Service brake is air over hudraulic discc brake on 4 wheels, with blast pump
8. It have all the functions of 180°wheel excavator and the same wheel loader.
9. Excellent operating performance with high working efficiency
Product Parameters

China Factory Backhoe Capacity 50HP 80HP 0.3cbm 1cbm Bucket 500kg 600kg 1000kg Mini /Small Tractor Excavator Digger Backhoe Loader With Low Price

Overall size	Unit
Dimensions	mm	7000*2200*2900
Wheelbase	mm	2720
Wheel track	mm	1700
Minimum ground clearance	mm	320
Performance parameters
System pressure	Mpa	28
Total Weight	kg	8000
Top speed	Km/h	35
Maximum gradeability	°	35
Minimum turning radius	mm	4300
Mining parameters
Maximum excavation depth	mm	3000
Excavation unloading height	mm	4100
Maximum digging radius	mm	4800
Bucket width	mm	60
Bucket	m³	0.25
Dig max height	mm	5600
Excavator rotation angle	°	360
Load parameters
Maximum unloading height	mm	3600
Maximum unloading distance	mm	900
Bucket width	mm	2200
Bucket	m³	1.2
Load maximum lift height	mm	4750
Engine
Model		Guosanyudong 4105 supercharged
Type		Turbocharged high pressure common rail
Rated power	KW	110
Rated speed	r/min	2400
Number of cylinders - inner diameter		4-105
Transmission system
Gearbox		Power shift
Number of gears		Before 2 After 2
Torque converter		280 split high and low speed
Steering system
Type		Articulated full hydraulic steering
Steering angle	°	38
Axle
Type		large wheel side axle
Tire
Specification		16/70-24
Service brake		Air top oil caliper disc brake
Parking brake		Air brake
Oil Capacity
Fuel tank	L	70
Hydraulic tank	L	140
Other
Drive type		Four-wheel drive
Transmission type		Hydraulic shifting
Braking distance	mm	7500
Operating system		Electromagnetic hydraulic pilot control

Detailed Photos

Company Profile

JINAN FORTIUS INTERNATIONAL TRADING CO.,LTD which is located in the capital city of Shandong Province-Jinan,is a group company established by few 10-years working experienced experts for SINOTRUK trucks, trailers and spare parts. construction machine , new energy vehicles .We have dealt with many projects in China and abroad, such as TANZANIA STRATEGIC CITIES PROJECT, Uganda CITIES Sewage engineering, Guinea city electric project, Brunei Port project, Fiji logging transportation, Philippines mining project and so on.We have "heavy duty fans" from all over the world now, hope you may joint us, and let start a good and pleasant business


Packaging & Shipping
Confirm ordering quantity so that we use wooden box or load into container. Make it clear how the quantity each container could load according to size of each model Decide how to transport according to our trade terms With the detailed address, deliver through custom to the right place

FAQ
Q1. What is the delivery period? After receiving the initial payment, the goods will be ready for delivery within 30 days. The rest time depends on the distance and transport method which need to be negotiated. Q2. What is the payment terms can you accept? 30% initial payment, 70% balance payment when the goods are ready for delivery by T/T.Q3. How long is the product guarantee or warranty? We provide 18 months quality guarantee, and lifelong technical support.Q4. What kind of service could you provide? 1) Pre-sale service: we could assist you finding the suitable equipment according to your requirement. 2) On-sale service: we strictly follow the commercial rules, contract signing, following the production process, controlling the goods quality, tracking the goods delivery, guaranteeing you receive the qualified goods safely. 3)After-sale service: we provide some consumables with the equipment; We have operation manual for instructing the basic installation and operation; video guidance for trouble shooting; engineers ready for field maintenance and repairing when necessary.Q5. Can we have the special order like specification change, logo making?Yes, we accept the customization. We can make it clear in the contract and then our technical start design and production as per your requirement.

---
