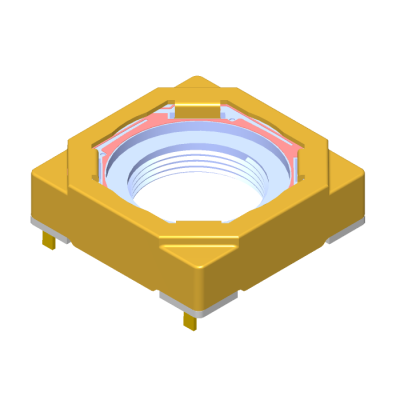

8.5× 8.5× 2.6mm M5.0× P0.25 5MP Voice Coil Motor for Auto Focus

Product Details

Product Description

Product Description

Technical Parameter of Voice Coil Motor
No.	Model No.	03-006-001	03-006-002	03-006-011	03-006-012	03-006-031
1	Dimension	8.5×8.5×2.6mm	8.5×8.5×2.82mm	8.5×8.5×2.8mm	8.5×8.5×2.9mm	8.5×8.5×2.9mm
2	Match Lens	M5.0xP0.25		M5.5xP0.25		M6.0xP0.25
3	Resolution	5MP
4	Weight	0.5g
5	Weight of Lens	0.12g Max.
6	Rated Current	80mA
7	Max. Current	100mA
8	Insulation Resistance	1MΩ Min.
9	Resistance Between Terminals	14~25Ω
10	Torque	20~120gf-cm
11	Rated Stroke	200μm Min. (@90mA)
12	Starting Current	20~40mA
13	Sensitivity	3~8μm/mA
14	Hysteresis	10μm Max.
15	Dynamic Tilt	15' Max.
16	Posture Deviation	50μm Max.
17	Linearity	15μm Max.
18	AF Current	10μm Max.

Technical Parameter of Voice Coil Motor
No.	Model No.	03-006-064	03-006-065	03-006-066	03-006-067
1	Dimension	8.5×8.5×2.6mm	8.5×8.5×2.8mm	8.5×8.5×2.9mm	8.5×8.5×3.3mm
2	Match Lens	M6.0xP0.25
3	Resolution	8MP
4	Weight	0.5g
5	Weight of Lens	0.12g Max.
6	Rated Current	80mA
7	Max. Current	100mA
8	Insulation Resistance	1MΩ Min.
9	Resistance Between Terminals	12~20Ω			15~25Ω
10	Torque	20~120gf-cm
11	Rated Stroke	200μm Min. (@90mA)
12	Starting Current	20~40mA
13	Sensitivity	3~8μm/mA
14	Hysteresis	10μm Max.
15	Dynamic Tilt	12' Max.
16	Posture Deviation	50μm Max.
17	Linearity	/			15μm Max.
18	AF Current	10μm Max.

Technical Parameter of Voice Coil Motor
No.	Model No.	03-006-072	03-006-073	03-006-074
1	Dimension	8.5×8.5×2.6mm	8.5×8.5×2.8mm	8.5×8.5×2.9mm
2	Match Lens	M6.5xP0.25
3	Resolution	13MP
4	Weight	0.5g
5	Weight of Lens	0.12g Max.
6	Rated Current	80mA
7	Max. Current	100mA
8	Insulation Resistance	1MΩ Min.
9	Resistance Between Terminals	12~23Ω	10~20Ω
10	Torque	20~120gf-cm
11	Rated Stroke	200μm Min. (@90mA)
12	Starting Current	20~40mA
13	Sensitivity	3~8μm/mA
14	Hysteresis	10μm Max.	±10μm
15	Dynamic Tilt	10' Max.	9' Max.
16	Posture Deviation	50μm Max.	±50μm
17	Linearity	15μm Max.	/
18	AF Current	10μm Max.	/

---
