Paper Machine Coating Cleaning Polyethylene Ceramic Stainless Carbon Steel Bronze Dryer Carbon Glass Epoxy Fiber Dst K35 Doctor Blade

Product Description

Paper Machine Doctor Blade
Doctor blade is an important element in paper machine functionality, sheet quality and productivity. Doctors are basically scraping equipment required in many positions on a paper machine and coater to remove contaminants or water from the rolls and for special functions like creping and coating.

Function of Doctor Blade
1. Removal sheet from the surfaces of cylinders and rolls.
2. Cleaning the surface of the rolls and dryer cylinders.
3.It adapts to the different characteristics of paper and the operating conditions of the paper machine, thus ensuring the quality of paper and production efficiency.

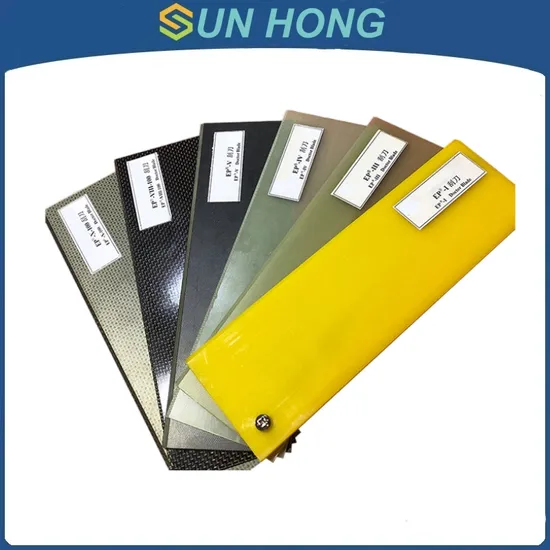

Different Section of Paper Machine Use Different Material Doctor Blade
Forming Section
Fiberglass: microfiber combined with flexible expoy resin,excellent adhesion to roll surface , excellent chemical property, 185 degree temperature resistence.
HDPE : 80 degree temperature resistence.
Expoy Resin:excellent chemical resistance expoy resin, excellent wear resistance, 160 degree temperature resistence.
Press Section
Glass Fiber: Microfiber combined with flexible expoy resin, excellent adhesion to roll surface, excellent chemical property, 185 degree temperature resistence.
Carbon Fiber:We have 20%,40%,60%,100% carbon fiber doctor blade. Blades and roll surface have excellent adhesion, 185 degree temperature resistence.
Stainless Steel: Quenched stainless steel (containing 13% chromium), hardness HRC 42-46, standard thickness 1.2mm, also can customized.
Expoy Resin:Microfiber combined with epoxy resin ,excellent chemical properties,185 degree temperature resistence.

Dryer Section
Expoy Resin:Microfiber combined with epoxy resin ,excellent chemical properties,185 degree temperature resistence.
Phosphor-bronze:Softest in all metal blades, better removing dirt, less damaging rolls.
Carbon Fiber:We have 20%,40%,60%,100% carbon fiber doctor blade. Blades and roll surface have excellent adhesion, 185 degree temperature resistence.
Stainless Steel: Quenched stainless steel (containing 13% chromium), hardness HRC 42-46, standard thickness 1.2mm, also can customized.
Carbon Steel: Quenched carbon steel ( carbon content 0.75%)
Reels & Calender Roll
Glass Fiber: Microfiber combined with flexible expoy resin, excellent adhesion to roll surface, excellent chemical property, 185 degree temperature resistence.
Carbon Fiber:We have 20%,40%,60%,100% carbon fiber doctor blade. Blades and roll surface have excellent adhesion, 185 degree temperature resistence.
Phosphor-bronze:Softest in all metal blades, better removing dirt, less damaging rolls.
Stainless Steel: Quenched stainless steel (containing 13% chromium), hardness HRC 42-46, standard thickness 1.2mm, also can customized.
Carbon Steel: Quenched carbon steel ( carbon content 0.75%)
Coating Blade: Hard copper with ceramic pattern, coating hardness HV1050-1150. standard thickness 1.25mm
Packing & Shipping
Bubble Film with cardboard box or wooden case by air or by sea.
Sun Hong Group
Sun Hong Group is a company specializing in serving the pulp and paper industry by manufacturing quality equipment and provide technical support to help customers solve various problems in production. Our aimis to help our customer improve production efficiency and reduce energy consumption. Own factory equipped with high-precision CNC machine tools and machining centers, advanced equipments and instruments, which can fully guarantee the stability and reliability of the products. There we can offer you the best quality at the most competitive prices.

---
