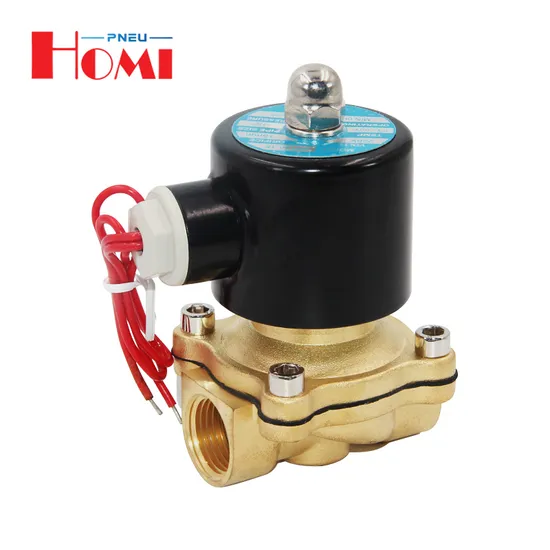

2W-160-15 Normally Closed Brass Air Water Flow Control Solenoid Valve

Product Description

Product Information
Brand	HOMIPNEU	Action Mode	Normally Close (open when power on, close when power off)
Product Description	Water and gas general solenoid valve	Using fluid	Water, gas, oil (non-corrosive)
Model Number	2W Series	Working Temperature	-5ºC~90ºC
Body material	Brass	Working Pressure	0-1.0MPA
Product type	Straight through	Voltage	AC220V DC24V DC12V

Thread diameter: 58mm
Sales Specifications: 1 Pcs
Model A: AC 220V
Model B: DC 12V
Model C:DC 24V
Product Name:Normally closed electromagnetic valve
Model: 2W: Two-position two-pass-through
Form: normally closed
Working method: direct-acting
Working medium: air, water, oil (2W025-08, 2W040-10, 2W160-15.2W200-20, can work in other gas)
Fluid viscosity: 25CST or less.
Guaranteed pressure: 1.0Mpa
Working temperature: -5~80 degrees Celsius
Seal material :NBP/EPDM or VITON
Pressure range: air 0~0.7Mpa, water 0~0.5Mpa, oil 0~0.5Mpa
Body material: 2W zinc alloy, copper coil.
Installation method: The direction of the water flow is shown above the valve body, and the installation will not be able to be used in reverse. The outlet water flow will also lead to no use.

---
