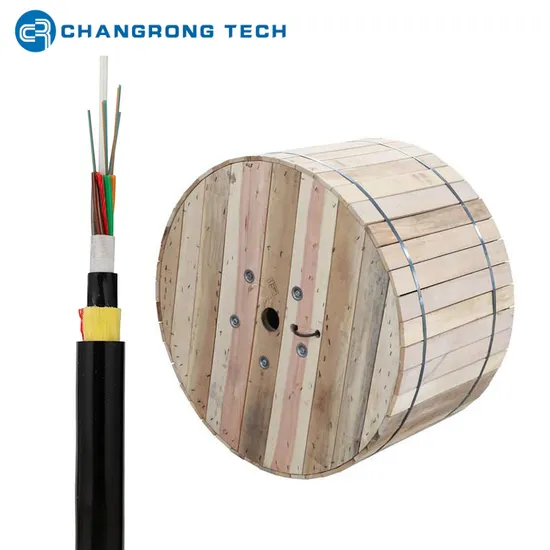

Monomodo Fibra Optica 48hilos Span100 Autoportante Aereo Cable De Fibra Optica (ADSS)

Product Description

ADSS (All Dielectric Self Supporting) Aerial Overhead Outdoor Fiber Optic CableFiber counts: up to 288 coreFiber type: Single mode fiber G652.DCentral Strength Member: FRP
Additional Strength Member: Kevlar Aramid YarnOuter Jacket: MDPE/ HDPEApplication: Self-supporting overhead laying, Electric no power off installation
Moisture Resistance: Water-blocking Yarn & Water-blocking TapeSpan customized: 80/100/120/150/200/300/400m etc.
Additional Function Option:
1. Anti Rodent with Glass Yarn reinforced
2. Anti Rodent with Flat FRP reinforced
Product Parameters

Fiber Counts	2-30	32-36	38-60	62-72	74-96	98-120	122-144	146-216	218-288
Max.fiber counts per tube	6	6	12	12	12	12	12	12	12
Units(Tubes or Fillers)	6	6	6	6	8	10	12	18	24
Cable Diameter (mm)	9.7	9.7	9.7	9.7	11.2	12.3	13.5	13.7	16.3
Cable Weight (Kg/km)	74	75	75	75	100	120	143	142	195
Fiber Type	G652D G655 G657 50/125 62.5/125
Tensile Strength (N)	Long/Short Term: 1900/4800
Crush Resistance (N/100mm)	Long/Short Term: 300/1000
Bending Radius (mm)	Static/Dynamic: 10D/20D
Temperature (ºC)	Storage /Operation: -40ºC~70ºC

Item	Value
Span	100m
Fiber Counts	12	24	48	96
Tubes	2	4	4	8
Tube Material	PBT
Filling Rope	4	2	1	0
Fiber Counts/ Tube	6	6	12	12
Fiber Identification	Blue Orange Green Brown Grey White	Blue Orange Green Brown Grey White	Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua	Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua
OD of Tube	1.8±0.1 mm	1.8±0.1 mm	2.1±0.1 mm	2.1±0.1 mm
Thickness of Tube	0.30±0.05 mm	0.30±0.05 mm	0.32±0.05 mm	0.32±0.05 mm
Color of Tube	Blue Orange	Blue Orange Green Brown	Blue Orange Green Brown	Blue Orange Green Brown Grey White Red Black
FRP	1.8 mm	1.8 mm	1.8mm	2.5 mm
PE Coated FRP	-	-	-	3.5 mm
Water Blocking Material	Water Blocking Yarn and Water Blocking Tape
Peripheral Strength Member	Aramid Yarn
Ripcord	Red Polyester *1
Thickness of Sheath	Nominal 1.60 mm
Sheath Material	HDPE
OD of Cable	9.0±0.3 mm	9.0±0.3 mm	9.6±0.3 mm	11.4±0.3 mm
Cable Weight	65 kg/km	65 kg/km	75 kg/km	105 kg/km

The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member to form the cable core. Water Blocking yarn and water blocking tape used in the cable core to prevent water penetration. Then Aramid Yarn to reinforce . Finally, PE or AT outer jacket is extruded. • It can be installed without power off.
• Easy to install with light weight and small diameter
• Customized span length (up to 1000 meters) suitable for different requirements
• Excellent mechanical and environmental performance
• Good water resistance performance
• Gel-filled loose tube protects the fiber well
ADSS- Single Jacket:ADSS- Double Jacket: Our Advantages
ISO 9001, ISO14001, ISO45001 Certified FactoryOwn laboratory has passed the CNAS Certification
Cable Workshop Show:Fiber Workshop Show:Testing Equipment Show: Packaging & Shipping
Drum Packing:
Shipping:
Company Profile
Anhui Changrong Optical Fiber & Cable Technology Co., Ltd, with total area of 230,000 Sqm, is one of the professional manufacturers of optical fibers and cables. ISO9001, ISO14001, ISO45001 certified.
Equipped with 9 cutting-edge fiber drawing towers and 18 production lines (for both fiber & cable), an annual production capacity of 15 million Fiber Kilometers, own lab certified by CNAS with advanced equipment imported from France, Japan and United States, Anhui Changrong is devoted to achieving the best solutions for customers.
Catalogue
Optical Fiber: G652D, G657A1, G657A2
Air Blown Micro duct Cable: GYCFTY
All Dielectric Cable: ADSS, ASU, GYFTY
Duct Installation Cable: GYTA, GYFTA, GYTS, GYFTS
Aerial Installation Cable: GYTC8Y, GYTC8S, GYTC8A, GYFTC8Y, GYFTC8S
Direct Burial Installation Cable: GYTY53, GYTA53, GYFTY53, GYTS53
Central Uni-tube Cable: GYXTW, GYFXTY, GYFXTS, GYXTC8S
FTTH Drop Cable: GJXH, GJXFH, GJYXCH, GJYXFCH Welcome to contact for more information!
