Hot Cutting Type Plastic Machine for Recycle Graunle

Product Description

Hot Cutting Type Plastic Machine for Recycle Graunle
Product Description

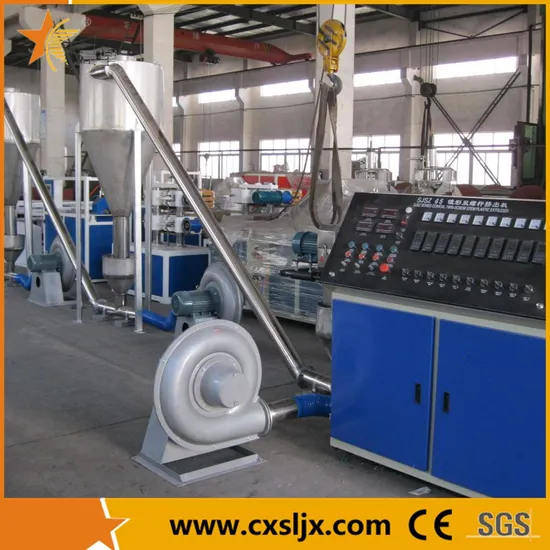

This hard PVC/CPVC hot-cutting pelletizing line consists of SJSZ series conical twin-screw extruder and corresponding pelletizing auxiliary machines.
Process flow:
Mixer→Spring loader→Conical twin-screw extruder→Mould & Cutter→Air-conveying system→Silo
Features and application
-Saving power: the electrical part adopts advanced frequency conversion technology;
-High effiency: the fast net-changing device may help remove impurities from ganules quickly and effiently;
-Broad application: the conical twin-screw extruder is suitable for various hard PVC & CPVC recipes;
-Zero pollution: all parts of the granules contact are made of stainless steel.
Technical parameters

Extruder model	Screw diameter	Pellet size	Main motor power	Output
SJSZ55	55/110 mm	Φ3-Φ4 mm	22 kw	100-120 kg/h
SJSZ65	65/132 mm	Φ3-Φ4 mm	37 kw	220-260 kg/h
SJSZ80	80/156 mm	Φ3-Φ4 mm	55 kw	320-450 kg/h
SJSZ92	92/188 mm	Φ3-Φ4 mm	110 kw	650-800 kg/h

Remarks: all information above is only for reference; please gather the exact data by contacting us.
Picture For Reference
1.Machine Display:
(1)Finished granules
(2) Extruder:
(3)Mould
(4) Air-conveying system&Silo
2.Factory Display:
3.Other Hot Sale Product Display:
1.Pet plastic bottle cleaning line is suitable for PET bottles (such as mineral water bottles, cola and other kinds of plastic bottles), such as de-labelling, crushing, washing, drying and other complete sets of production equipment, waste PET plastic bottles will be processed into bottle flakes and then granulation programme
2. According to the production capacity and cleaning requirements, our company has different standards of PET bottle recycling production line. The output of this PET bottle cleaning and recycling is between 200-2Tkg/h (for reference only)
3. You can choose the right PET bottle recycling washing line to produce high quality PET plastic, which can be used for selling, producing PET pellets or blowing bottles.
4. The water content of the final product is 3%-5% and in order to ensure good quality and long-term use of the line, the materials in contact with water are made of stainless steel 304.
5. The whole line has CE certificate.

The pp/pe film cleaning and recycling line is a recycling line that can crush, clean to dry the film woven bags tonne bags, it has high efficiency, stable work, large capacity and so on.
High level of automation to minimise your human costs and ensure high processing capacity: 500-2000kg/h.
Therefore, in order to ensure the durability of the machine and equipment and reduce the secondary pollution of the flakes, the equipment and water contact parts are made of 304 stainless steel.

Company Profile
Zhangjiagang City Chenxing Machinery Ltd. CO. was established in 2002, its predecessor is Zhangjiagang City Samsung Machinery Plastic Factory, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one.
The main products include: pipe, profile, sheet and pelletizing extrusion machinery, waste plastic recycling production machinery, and all kinds of auxiliary machines necessary in the process of plastic production, such as loading machines, mixers, formulators, grinding machines, mould temperature machines, chillers, etc.
We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company.
Chenxing is willing to work with you to create a future together.


Packing&Shipping

FAQ
Our service:
1.Ability to provide the customized plastic extrusion solutions;
2.Complete sales system covering the pre-sales, sales and after service jobs;
3.Commissioning & installation service in customer plant .
FAQ:
Q. After-sales service
A: Send engineers to install, test the machines and offer technology guidance and worker training at customers' factory.
Q: Your company is a trading company or an industrial manufacture factory?
A: Our company is an integrated industrial and trade company
Q:what can you buy from us?
A:extruders, mixers, crushers, shredders, grinders and dispensers; all kinds of plastic pipe, profile, sheet and board extrusion line; pelletizing line; waste plastic recycling line; etc.
Q:What is the voltage?
A: 380V 50hz 3 phase or any other voltage according to client's requirement.
Q:what services can we provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,CNY
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
CONTACT US:If you need to know more information about our company or our product,welcome to contact me and visit our factory!
Our company hope to cooperate with you to create a better future! ! !

---
