US$22,000.00-28,000.00
|
1 SET
(MOQ)
|
Basic Info.
Max Cutting Length
2200mm
Max. Cutting Width
2200mm
Max. Cutting Height
1250mm
Max. Cutting Speed
15m/Min.(Related with Cutting Raw Material)
Blade Size
0.5mm*3.0mm*2300mm
) Vibrating Tool Linear Speed
3000mm/S
) Total Motor Power
5.0kw
Transport Package
Well Protected Package
Trademark
BCD bedding machinery
Production Capacity
30 Sets/Month
Product Description

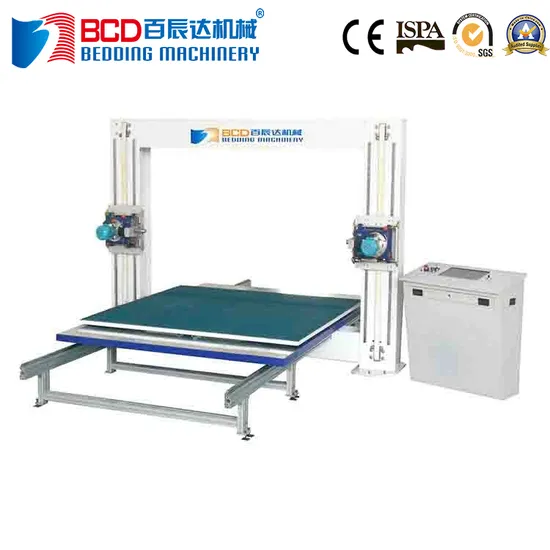

FOAM HORIZONTAL CUTTER MACHINE
(Rotate worktable H3)
H3 Application area: It can cleanly cutting any ideal
geometric profile.
It can be used in Automotive industry, Furniture industry, Packing industry, Building industry, Daily commodity and so on.
Cutting material: Foam,PU soft foam,sticky foam,latex,Rebond
foam, Polyethylene foam.
Performance overview:
The automation of this equipment is highly , it is able to complete some of the basic cutting requirements,The Rotate worktable can rotate without limit .
Cutting graphics:
It is suitable for cutting block product ;it can cutting Pyramid-shaped with the rotate worktable;wavilness;irregular shape ;and any two dimensions and the simple three dimensions geometric profile .
H3 Technical date:
| | Standard | Option |
| Length of the foam block | 2200mm | 2300mm |
| Height of the foam block | 1250mm | 1500mm |
| Width of the foam block | 2200mm | 2300mm |
| Work table | Rotating work table |
| AC power | 380V 3phase 4 wire |
| Total power | 5KW |
| Cutting precision | ±0.5mm |
| Cutlery | -Pressure of the knife is 6 bar -Itinery of the knife is 48mm50Hz -Size of the knife is 0.5mm*3mm*2300mm -Vibrating speed is 3000t/minute |
| Operatiing option | -modulator demodulator(can do remote diagnosis and maintenance) -man controlled rotating work table -automatic programming software -computer console -Absolute value of the system -Automatic adjusting the angle -Hanging control panel (optional) |
| Max cutting speed | Depending on different materials, the max cutting speed is 15m/minute |
| Delivery date | 25Days After receipt of prepayment. |
The FOB Price above is not including the Engineer's A round-trip ticket and accommodation, to your factory to install the machine.
After-sale service:
Our foam cutting machine warranty period of one year.
In guarantee period, wearing parts can be provided free of charge, but shipping from the buyer.
We can also provide on-site technical services, personnel costs, travel by the buyer.
>>
