Superior Industrial Leader Factory Price Mold Dehumidifier Plastic Drying Equipment for PVC PP PC PET PE ABS

Product Description

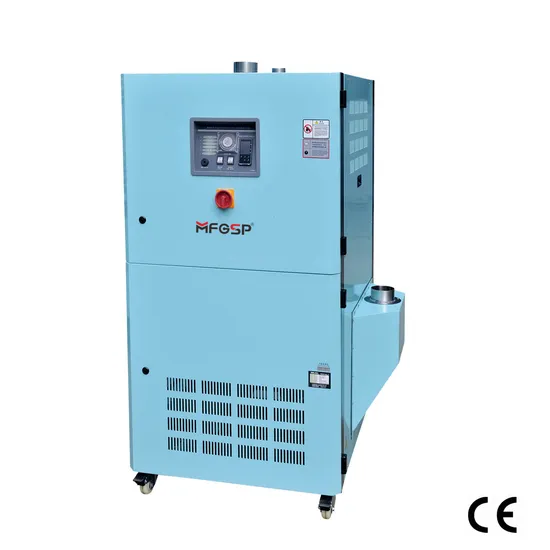

Mold Dehumidifying Dryer

Performance characteristic:
1.The device operational principle:the air passes rotating honeycomb then blows off the dew on the mold to keep the mold clean.
2.Our Mold Dehumidifying Dryer adopts imported rotating honeycomb,can provide the steady dew piont around -10ºC,make the injection mold far away from condensation of moisture,improve the products' quality effectively.
Specifications:

Model	Dry Blower (m³/hr)	Power of Dry Blower (kw)	Power of Regenerating Blower (kw)	power of Regenerating Heater (kw)	Pipe Diameter (inch)	External Dimensions LxWxH(mm)	Weight (kg)
SMD-500	500	0.9	0.37	4	4"	1220x980x1740	240
SMD-1000	1000	1.5	0.55	6	5"	1220x980x1740	290
SMD-1500	1500	2.2	1.1	7	6"	1560x1100x1930	320
SMD-2000	2000	3	1.1	9	8"	1560x1100x1930	400

Structure:

1	Honeycomb	6	Condenser
2	Regeneration blower	7	Heater
3	Drying blower	8	Humidity outlet
4	Control panel	9	To hopper
5	Filter	10	From hopper

Diagram of installation:
