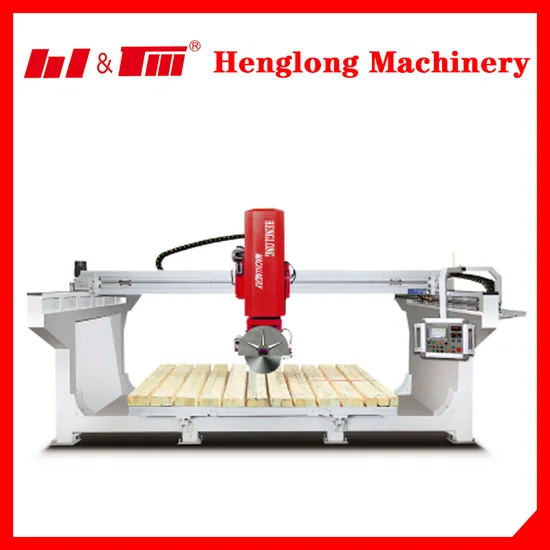

5100X2800X2600mm Cement Brick Henglong Granite CNC 3 Axis Stone Machine

Product Description

Product Description
1.The machine adopts a bridge-type integrated structure, the machine bed is strong and stable, and has good stability.
2.The three-axis adopts high-precision linear square rail, which has high precision, wear resistance and long service life3.The machine head can be rotated in parallel at an angle of 0-90 degrees, and can be cut horizontally and vertically.4.The machine head can automatically perform 45-degree chamfer cutting, with high precision and high efficiency.5.The system adopts independent research and development PLC programming system, touch screen operation interface, convenient operation and strong humanity.6.One-piece structure, no need to disassemble, easy to install and easy to move. 7.The platform can be tilted from 0 to 85 degrees, which is convenient for placing large stones.

Machine details

Technical Parameters:

Max blade diameter	Φ400 MM
Working table size(L*W)	3200*2000 MM
Max. working dimension(L*W*H)	3200*2000*80MM
Working table tilting degree	85°
Cutting head tilting degree	45°
Cutting head rotating degree	0°-90°
Main motor power	11 KW
Water consumption	4 m³/h
Weight	3500 KG
Dimension(L*W*H)	5100*2800*2600 MM

About Us
Fujian Henglong Machinery Co., Ltd. was founded in 2003, the company is located in "China Stone City" Shuitou Town, Nan'an City, is an international enterprise specializing in the manufacture of stone machinery and equipment, integrating R&D, production and sales. It is one of the star enterprises in the field of stone equipment manufacturing in China. In order to provide customers with higher performance and high added value products, Henglong has gathered a large number of Representing industry-leading engineers and skilled production teams. They are skilled and determined to make progress and research and development. The main products are HL&TM brand automatic granite polishing machine,Automatic marble polishing machine, gang saw and bridge cutting machine. , multi-head calibrating machine, automatic waxing machine, automatic bush hammering machine and other stone processing equipment, and provide quality solutions. Henglong has passed the national quality system certification and the stone machinery industry standard certification. The products are exported to United States, Mexico, India, Egypt, Turkey, Vietnam, Thailand and other countries and regions, and established multi-dimensional sales at home and abroad. Channels and technical service systems are improving day by day.

---
