Manufacture in China 32 Ton Mini Manual Screw Hydraulic Jack for Lifting

Product Description

Product Description
Screw Jack Details & Function:
Screw jack, also known as mechanical jack, is driven by manpower through the screw pair, screw or nut sleeve as a lifting part. Ordinary screw jack supports heavy objects by thread self-locking. It has simple structure, but low transmission efficiency and slow return trip. The screw of the self-descending screw jack has no self-locking effect and is equipped with a brake. Loosen the brake, the weight can descend quickly, shorten the return time, but this kind of jack structure is more complex. Screw jacks can support heavy loads for a long time, the maximum lifting weight has reached 100 tons, widely used. The lower part of the horizontal screw installed, but also to make the weight for a small distance transverse movement.

Product Name	Factory Direct Price ASAKA High Quality Floor Lifting Screw Jack for Hand Operated
Raw Material	Steel alloy
Lifting Range	110-250mm
Weight	4.1-268kg
Color	Green/ Customized
Certifications	CE /ISO
Packaging	Carton/ Wooden Case
Use	Lifting Tools
OEM/ ODM	Customization Service Provided

Model	Capacity (T)	Lif.H (mm)	Min.H (mm)	N.W (kg)	Packing (pcs/ ctn)	Measurement (cm)
ZXQL3.2	3.2T	110	220	4.1	4	675*270*175
ZXQL5	5T	130	250	5.7	4	580*300*190
ZXQL8	8T	140	260	5.9	4	640*335*190
ZXQL10	10T	150	280	7.8	4	640*335*190
ZXQL10D	10T	75	200	6.5	4	675*270*175
ZXQL16	16T	180	320	9.8	3	365*360*200
ZXQL20	20T	180	325	10.9	3	365*360*200
ZXQL20D	20T	90	225	9	3	365*360*200
ZXQL25	25T	130	275	10	3	365*360*200
ZXQL32	32T	200	400	17.3	2	435*425*230
ZXQL32D	32T	150	320	15.4	2	430*380*215
ZXQL50	50T	250	452	30	1	495*340*265
ZXQL50D	50T	150	310	25.4	1	495*340*265
ZXQL100	100T	200	452	63.5	1	525*375*385
ZXQL200	200T	180	510	183	1
ZXQL300	300T	250	575	268	1

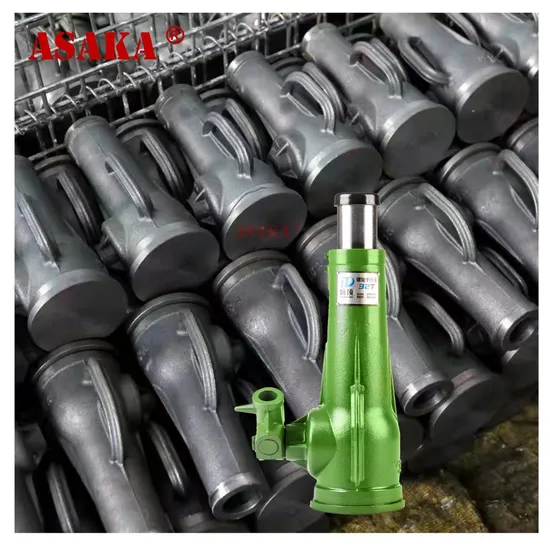

Raw Materials
Customized service support
1.We can custom the color what you want. Only need you to provide the color number or we can supply the popular color for you to choose.

2.Package, manuals, certificates can be customized according to your requirement, meet your Individual requirements.

3.Green is our regular color, there are in stock. We can delivery fast when your quantities and models are same as ours. You can consult our sales team.
Certifications
ASAKA related certificate of screw jack
Screw jack sellers must conduct safety tests and obtain relevant safety certificates to ensure the safe use of screw jack. ASAKA screw jack in terms of product quality, we will strictly check each product to ensure that it absolutely meets safety standards.
Packaging & Shipping
Packaging Details
42 cartons/pallet, 20 pallets/container
850 pcs/container
The specific model packaging details are shown in the figure above:
Case Show & Feedback
Company & Factory
ZHI XING MACHINERY (HANGZHOU) CO., LTD.
Which is a professional enterprise integrating R&D, design, manufacturing and export. It produces and exports various small lifting tools such as jacks, lifting slings, manual and electric hoists. The company is located in the beautiful Hangzhou, China, close to the ports of NINGBO and SHANGHAI, with convenient transportation, our products with stable quality, complete certificates and qualifications, our company with more than 20 years of industry experience and rich export experience in more than 50 countries around the world. Customers and friends from all over the world are welcome to consult and cooperate.
Why Choose Us?
Why choose ASAKA?
1.Annual production of jacks over one million, exported to more than 50 countries.
2.The factory area is 18,000 square meters.
3.The factory has passed ISO 9001 and BSCI.
4.The product complies with GS/ ANSI/ ASME standards.
5.We have own R&D team.
6.Complete quality inspection system.
FAQ
Q1: Are your factory or trade company?
A1: We are factory with over 20 years of experience. We support visit factory on line.

Q2: What is the min order quantity?
A2: We don't require MOQ. Whether you are a home customer, a project customer, or a distributor, whether your order is large or small, we will do our best to serve you.

Q3: How do you guarantee quality?
A3: We will do loading test for each jack before it shipped out.

Q4: What is the difference of between your product and other factory?
A4: Our material is ductile iron, other manufacturers are steel body, The steel body has the risk of brittle fracture.

Q5: Do you have them in stock?
A5: Yes, all capacity in stock.

Q6: What about the delivery time?
A6: For samples, it will be shipped within a week, and for large orders, it will be shipped within 15-25 days.

Q7: Can you put my logo on product?
A7: We accept OEM.

Q8: Can I have sample to check quality?
A8: Of course, we are willing to send the sample to you.

Q9: Do you have distributor/customer in our country?
A9: We exported our product to all over the world, so there are distributors/customers in most of country.

Q10: Do you have any certificate?
A10: Yes, we have CE certificate. we can send to you to check if you need.

---
