0.96 Inch DOT Matrix 80*160 Resolution Mini TFT Colorful LCD Display Screen

Product Description

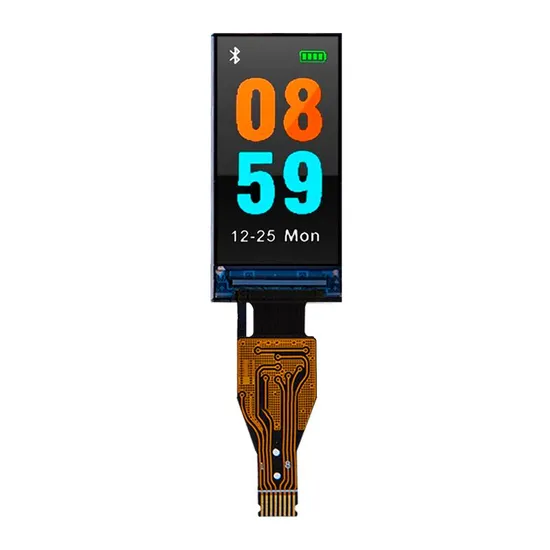

Product Description HW-096P0Z002-01 is a 0.96 inch tft lcd module in 80x160 resolution, it is 4 wire SPI interface in 8 pins, and could be customized for other pinout. Backlight brightness is 420~450 nits. It is suitable for both indoor and outdoor application, such as measuring device and control panel, hybrid recorders, timer, counter, power limiter. The backlight has 1 backlight LED, backlight current is 20mA and backlight voltage is 3.2V, which could be customized. This 0.96 inch TFT LCD module is designed with ST7735S, viewing direction is all o'clock, color depth is 262K, white LED and transmissive type.

Display Size	0.96 inch
Outline Dimension	13.6*27.95 mm
Active Area	10.8*21.7 mm
Display Type	IPS
Resolution	80*RGB*160
Screen Color	262K
Driver IC	ST7735S
Viewing Direction	ALL O'clock
Interface	SPI
Backlight Type	350cd/m2
Work Temperature	-20~+70ºC
Storage Temperature	-30~+80ºC
Driver Voltage	3.3V
Connection	COG+FPC+BL

* HW-096P0Z002-01 is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* It is 80x160 resolution TFT LCD module.
* Backlight with different brightness options from 100 - 1500cd/m2 are available.
* Specific touch panel can be designed & customized.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.

Detailed Photos

Company Profile
Hunan Sunlight Display Technology Co., Ltd. was established in May 2019. The company specializes in the design, production, and sales of LCD displays, LCD display modules, and backlights. Its products are widely used in fields such as instrumentation, healthcare, financial communication, household appliances, e-commerce, electronic digital, industrial control, and automotive systems. It is a long-term supplier to well-known enterprises such as Midea, Gree, TTI, Weisheng, Omron, etc.
Company size
The company covers an area of approximately 10000 square meters, with over 900 employees and nearly 80 technical personnel. The designed production capacity is to produce 2.4 million pairs of LCD screens and over 12 million LCD display modules annually. In 2022, the sales revenue was 120 million yuan and the tax paid was 5.97 million yuan. In 2023, it is expected to achieve sales revenue of 160 million yuan and tax payment of 8 million yuan.
Innovation capability
The company has multiple advanced LCD display screens and LCD display module production lines, mainly providing small and medium-sized LCD displays, monochrome and color LCD display modules, and has a group of high-tech, high-quality, and experienced professional talents. It always pays attention to technology and product innovation, and has close technical cooperation with the same industry in China. It has strong strength in product technology innovation and development, In the past three years, a total of 15 million yuan has been invested in scientific research. We have built the most advanced automated and intelligent production line for monochrome LCD displays and LCD display modules in China, producing products with AOI visual intelligent testing equipment. Has 1 invention patent, 2 computer software copyrights, and 7 utility model patents.
Corporate Honors
The company is not only focusing on intellectual property construction, but also continuously improving its soft power, and strictly implementing various work in accordance with the guidance of ISO/9001, ISO/14001 quality standard system documents, and IS045001 occupational health and safety management system documents; In 2022, our company was awarded the "High tech Enterprise Certificate"; Passed the audit of innovative small and medium-sized enterprises in 2023.
Factory Showcase
Certifications
FAQ
Q: What's the lead time?A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)Q: How can i find the right product?A: Please send us your requirements, we will recommend our standard products, if it's not fit, we will do the necessary adjustment & customization. Q: Where can I get the datasheet, initialization code and other technical files?A: Please contact with our sales, chat on Trade Manager or send me a email , we will send the datasheet by mail. Q: Is there a Touch Panel (Touch screen) on the display? A: We can offer you the Resistive Touch Panel or Capacitive Touch Panel if you need.

---
