Transformer tape machine

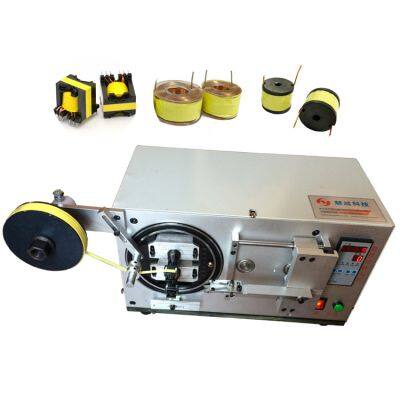

HY-B02 transformer automatic package plastic machine
Huiyue HY-B02 transformer automatic package machine used in a variety of high and low frequency transformers, inductors, relays and other core tape and insulating tape package system, the use of SCM control, stepper motor 7.5p motor operation, high-quality, High efficiency, low noise. Efficiency requirements (capacity requirements): per hour: about 3000pcs
HY-B02 transformer automatic package machine parameters:
1. Membrane range: 34mm - 77mm are applicable.
2. Winding laps: 1 - 9 laps, laps can be arbitrarily set.
3.Two axle wheelbase: film cloth axis distance from 25mm - 85mm may adjust.
4. Size: length 430x wide 300x high 260mm (including rubber tire holder length 130mm), weighing about 25KG
5. Material construction: the main part of the use of S45C steel; other A3 steel hard chrome plating.
6. Optional features: a. Automatic return material, easy to operate and improve efficiency (with product considerations);
B. Motor speed selection 7.5 or 10 (the smaller the number the faster the speed);
C. Other functions (according to customer requirements);
HY-B02 transformer automatic package machine Features:
1, any vertical, horizontal transformer can be plastic package, and the replacement of species simple, fast, suitable for a variety of operations.
2, adhesive tape position can be fine-tuned.
3, the number of packets can be arbitrarily set the number of aprons, (speed can be adjusted)
4, the body has: manual and automatic functions
5, the output is about 52-58 ? / minutes;
6, the use of man-machine interface control, easy to operate, there is a tape reminder function.
Hui Yue warm reminder: Optional automatic package plastic machine, look for the quality of Dongguan Huiyue technology manufacturers, the company has professional after-sales team, the current domestic customers accumulated more than 500, Division I will be installed and tested by the testing department after passing the test Shipping, you can also provide installation video teaching, to ensure quality, welcome to inquire!
>>
