40b IV. V. VI Universal Grinding Machine

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
40b
Feeding Size
10mm
Weigh
550kg
Type
Impact Crusher
Object
Metal
Drive
Electric
Crushing Degree
Fine Grinding Machine
Crushing Style
Grinding and Impact
Principle
Fixed Culling
Cutter Material
High-Speed Steel
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
250-300MPA
Tongs′ Features
Universal Tongs
After-sales Service
1 Year
Warranty
1 Year
Transport Package
Standard Export Wooden Cases
Specification
GMP, CE
Trademark
SPM
Origin
China
HS Code
8465990000
Production Capacity
160-1000kg/H

Product Description

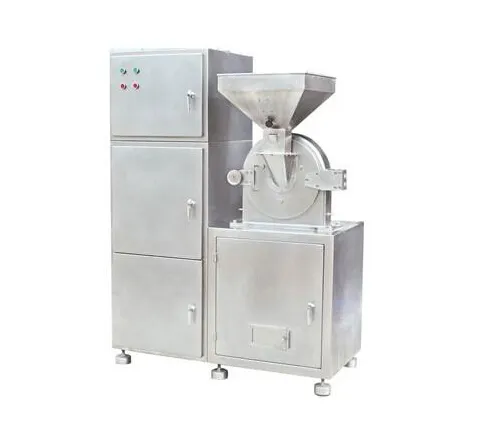

40b IV. V. VI Universal Grinding Machine
Main Application:
This machine is applied for material crushing in such trades as pharmaceutical, chemical and foodstuff etc..
Technical Parameters:
Model Production Capacity Feeding Size Crushing Fineness Spindle Speed Motor Power overall dimension weigh
15BIV.V.VI 10-50kg/h 6mm 20-120mesh 6000r/min 2.2kw 550*400*850mm 100kg
20BIV.V.VI 60-150kg/h 6mm 20-120mesh 4500r/min 4kw 550*600*1250mm 280kg
30BIV.V.VI 100-400kg/h 6mm 20-120mesh 3800r/min 5.5kw 600*700*1450mm 350kg
40BIV.V.VI 160-1000kg/h 10mm 20-120mesh 3400r/min 11kw 800*900*1550mm 550kg
60BIV.V.VI 500-2000kg/h 12mm 20-120mesh 2800r/min 18.5kw 900*900*1880mm 680kg
80BIV.V.VI 1000-5000kg/h 12mm 20-120mesh 2000r/min 37kw 1100*950*1960mm 1500kg
100BIV.V.VI 2000-8000kg/h 12mm 20-120mesh 1500r/min 55kw 1350*1000*2100mm 2500kg

Working Principle:
By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. Designed according to GMP standard and wholly made of stainless steel, with simple structure, high output and easy cleaning, this machine is the most ideal crushing equipment at present.
