1u Rack 8/16 Channels Mux Demux Drawer Type Fiber Optic ODF Distribution Frame Terminal Box DWDM

Product Description

Customize Waves 8ch 100GHZ 1G LX/SX DWDM MUX DEMUX Introducing our advanced Dual Fiber 8CH C21-C28 DWDM MUX DEMUX with 1310nm Port, designed by Fibeye.
This device operates within the wavelength range of C21 to C28 (1560.61nm~1554.94nm), adhering to the ITU-T G.694.1 100GHZ grid.
It maximizes the capacity of the C-band range while offering flexibility for customization of other wavelengths.
This compact 1U rack solution provides efficient optical communication capabilities.
Key FeaturesWavelength range: C21 to C28 (1560.61nm~1554.94nm)ITU-T G.694.1 100GHZ grid compliantLow insertion loss: Wavelength ports <2.4dB, 1310nm port <0.8dB1310nm port supports multiple protocolsMonitor Port for network link monitoring or power monitoringExpansion Port for future bandwidth increasingApplicationsBroadcast and TVIDCFinanceGovernmentCloudMassive data

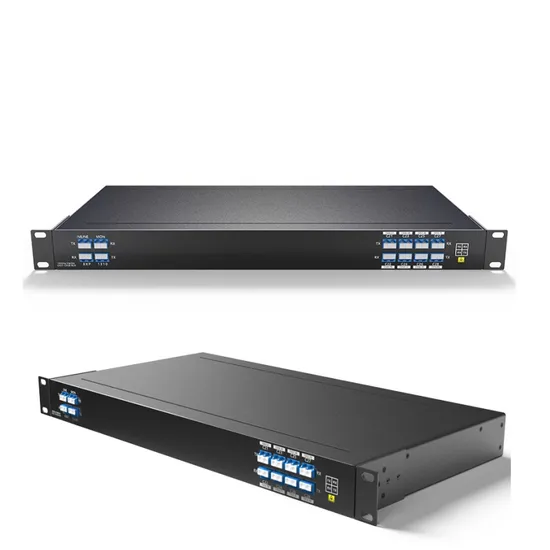

Product Panel
Product Specification

Wavelength	8channels C21-C28(or other waves)	Channel Spacing	100GHz (0.8nm)
Channel Passband	±0.11nm	Technology	TFF (Thin Film Filter)
Insertion Loss	≤ 2.4dB	Link Loss	≤ 3.2dB
1310nm Port Pass Band Width	1260nm~1360nm	Center Wavelength Accuracy	±0.05nm
Insertion Loss @ 1310 port	≤ 0.8dB	Insertion Loss @ 1% Mon	≤ 26dB
Return Loss	≥ 45dB	Directivity	≥ 45dB
Polarization Mode Dispersion	≤ 0.1ps	Polarization Dependent Loss	≤ 0.3dB
Channel Isolation	Adjacent ≥30dB Non-adjacent ≥ 45dB	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Net Weight	1.5KG	Dimensions (HxWxD)	44*440*230mm

Note: Specified with connectors.
Order Information

Product No.	Product description
DMD8-1U01-C2128-31M	DWDM MUX DEMUX 8CH (C21-C28) With EXP and 1310nm, Monitor Port, Dual fiber, LC/UPC , 1U Rack
DMD8-1U01-Cxxxx-31M	DWDM MUX DEMUX 8CH (Cxx-Cxx) With EXP and 1310nm, Monitor Port, Dual fiber, LC/UPC , 1U Rack (Customized)

Note: We Support Customized Design, please contact us by email.
FIBCONET boasts three state-of-the-art manufacturing centers covering over 10,000 sqm in Ningbo, Guizhou, and Northeast China, with a team of 800 highly skilled engineers and staff members.
With a production capacity of 300,000 PLC Splitters and 10 million fiber optical connectors per month, FIBCONET has earned a reputation as a national high-tech enterprise that excels in innovation, securing 50 patents and 15 invention patents.
Our PLC splitter, for instance, can function optimally even in extremely cold conditions of up to -50 centigrade degrees, making it an ideal solution for clients operating in harsh environments like Russia. We also offer connectors with an insert loss of just 0.1 dB, a rarity in the industry that we can deliver.
Q: The History of our factory?
A: In 2000, Fibconet entered the communications industry and began to make adapters. It accumulated funds to invest in jumper production in 2006 and increased the optical splitter workshop in 2009. Fibconet won the national high-tech industry in 2013, sold over 15 million US dollars in 2015, and began to explore foreign markets.
Q: The location of our factory?
A: Our factory is located in Ningbo, Zhejiang, and our new factory has also been put into production, located in the Northeast (Jilin Province).
Q: An occupied area for our factory?
A: The construction area of our factory is about 23,000 square meters, including 8000 square meters in Fenghua Plant and 15,000 square meters in Northeast China.
Q: Production capacity for the PLC splitter?
A: 800,000 pcs per month.
Q: What's your best price for your passive fiber optic product?
A: Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.
Q: Do you offer a guarantee for the products?
A: Yes, we offer a 1-2 years warranty on our formal products.

---
