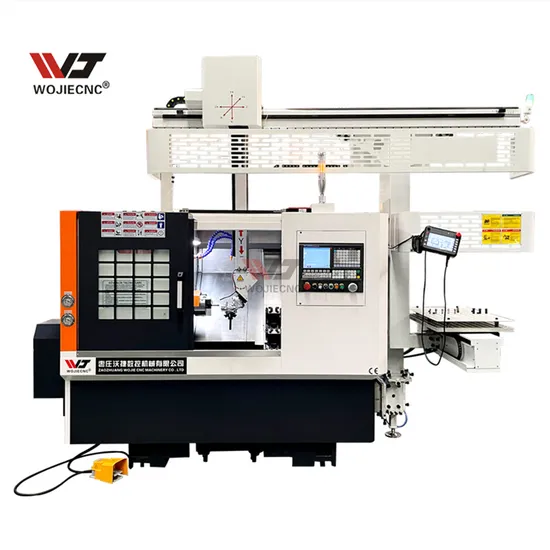

High-Quality Heavy Duty Gang Type CNC Lathe Siemens Fanuk GSK CNC Turning Center Machine Tck6340s Lower Price Automatic Slant Bed CNC Lathe

Product Description

Product Description
Machine tool description: This machine tool is a high-speed, high-precision, high-reliability inclined bed machine tool. The main components such as the bed base, bed, and headstock are all cast with high-strength materials to ensure the stability of the machine tool in long-term use.
The machine tool adopts a 45° integral inclined bed structure, equipped with a high-precision preloaded Taiwan linear rolling guide, and uses a servo motor to directly connect with the lead screw through a large torque and low inertia elastic coupling. The lead screw support adopts a pre-stretching structure, which can eliminate the transmission backlash and pre-compensate for the influence of thermal deformation on the accuracy during long-term operation of the machine tool, ensuring positioning accuracy and repeat positioning accuracy; the machine tool has high position accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining.
The high-speed, high-precision, high-rigidity cartridge spindle unit and servo spindle motor can achieve higher spindle speeds. The spindle unit is assembled in a constant temperature room, and after assembly, it is run in a constant temperature for 72 hours continuously. After being installed on the machine, it is tested for 72 hours continuously to ensure the reliability of high-speed and high-precision performance.
The tool arrangement method is selected, with fast tool change speed and high positioning accuracy.
The machine tool protection adopts a full protection design, which is highly user-friendly, beautiful and unique, reliable in waterproofing and chip prevention, and easy to maintain.
Product Parameters

SPECIFICATIONS	Units	TCK6340	TCK6340S
Swing over bed	mm	400	400
Swing over cross slide	mm	140	140
Distance between centers	mm	200(gang type tools)	400(gang type tools)
Spindle bore	mm	56	56
Spindle nose type	-	A2-5	A2-5
Spindle speed steps	-	Stepless	Stepless
Spindle speed range	rpm	3500	3500
Turret/tool post	-	Gang type	Gang type
X axis travel	mm	400	400
Z axis travel	mm	300	500
X axis rapid traverse	mm/min	24000	24000
Z axis rapid traverse	mm/min	24000	24000
Main spindle motor	kw	5.5	5.5
Guide rail type	-	Linear rail	Linear rail
Machine weight	kg	2300	2500
Overall dimension	mm	2200x1600x1780	2400x1650x1800

Detailed Photos

Control system Standard configuration: GSK Optional configuration: Siemens/ Fanuc/ Syntec/ Mitsubisin	Hydraulic chuck Standard configuration:6" hydraulic chuck Optional configuration: 8" hydraulic chuck
Tool holder Standard:4-station gang type tool holder Optional: 6-station turret 8-station turret	Automatic feeder The machine tool can be equipped with an automatic feeder to achieve fully automated processing, saving time and labor costs
2-axis linear guide Using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.	Lead screw 2-axis lead screw, using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.
Lubrication system The centralized lubrication system can be used in a timely, quantitative, accurate, efficient, convenient and reliable manner, and is conductive to increasing the service life of the machine tool.	Electrical part Standard configuration: DELIXI

Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months Certifications
FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.

---
