Veneer Working Glue Spreader Plywood Machine Made in China

Product Description

Product Description

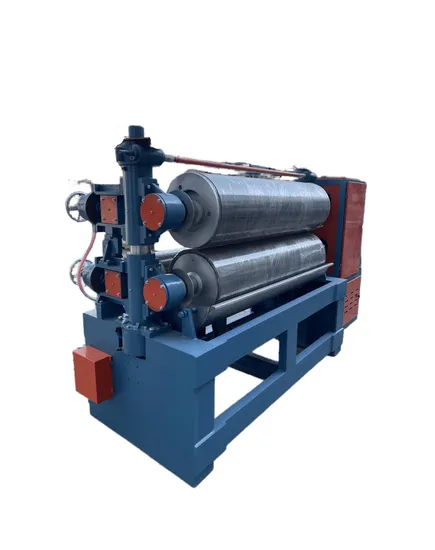

Hot Sale Glue Spreader For Plywood Machine
Plywood machine Double Sides Air piston Heavy Duty Glue Spreader machine for Plywood/ CNC Glue Coating Machine, CNC Gluing Machine Air piston Heavy Duty Glue Spreader machine veneer glue spreader applies to plywood, multilayer board, veneer,core-board for single-side or double-side glue, using the purely natural rubber, Precision machining by lathe and grinding machine, The utility model has the advantages of uniform glueing, simple operation, an adjustable amount of glue spreader etc. Diameter 4ft glue spreader has the features of glueing, no marking and simple operation. It is also the preferred equipment for the decorative panel.
Product Parameters

1	Installation style	front back , up bottom
2	Spreading form	double face
3	Driving method	gear drive
4	Rubber roller diameter	Φ415 mm with ropiness
5	Rubber roller length	1400 mm
6	Steel roller diameter	Φ296 mm electroplating
7	Main motor	7.5 KW
8	Electricity standard	380 V, 60 HZ, 3 phases
9	Reducer model	4#
10	Main inverter	7.5 KW
11	Main machine weight	3600
12	Machine size	2900*1700*1900 mm
13	Delivery time	60 days

Detailed Photos
Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine,plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood, other related material and parts for wood processing industry, construction material and machine, etc.
The detail business range is as following:
1-wood veneer production machine:
Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.
2-plywood production machine, film faced plywood machine:
Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.
3-Particle board machine and MDF board machine.
4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.
Product Line
Certifications

FAQ
Frequently Asked Questions
1.Can the product be customized?
Yes, we support product customization. Customize different products according to your needs.
2.Does the product have after-sales service?
Yes, we offer both online and offline service with a one-year warranty and lifetime after-sales.
3.Why choose us?
Excellent quality and service, as well as cost-effective products.
4.How to ensure the quality of the product?
Welcome to our factory to see the production process.
5.Who is responsible for the installation and commissioning of the machine?
We have more than 15 technicians on site to guide, install and commission the equipment.

---
