Product Details
Product Description
Product Description

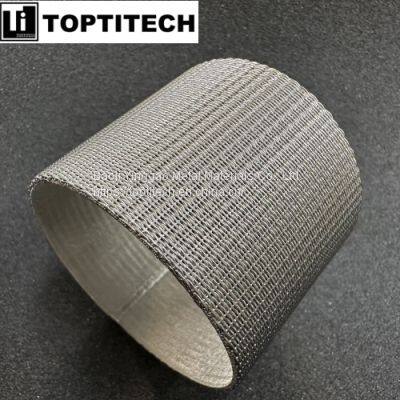

100 Micron 316 Stainless Steel Wire Mesh Filter Ring
A 316 stainless steel wire mesh filter ring refers to a filtration device made from 316-grade stainless steel wire mesh material in the form of a ring. Stainless steel wire mesh is a popular material choice for filters due to its durability, corrosion resistance, and excellent mechanical properties.
The 316 stainless steel grade is specifically known for its enhanced resistance to corrosion, particularly in environments containing chlorides, such as saltwater or marine applications. This makes it suitable for various industries where filtration is required, including chemical processing, oil and gas, food and beverage, pharmaceuticals, and wastewater treatment.
Specifications
Wire materials: SUS316L
Wire diameters: 0.5 mm
Diameters: 60mm
Length: 50mm
Weaving methods: plain weave
Layer: multiple five layers
Filtration precision: 100 µm
Features
Physical Properties: The 316 stainless steel sintered wire mesh filter ring exhibits several outstanding physical properties, including high tensile strength, high dirt holding capacity, high strength, resistance to high pressure, precise filtering accuracy, resistance to wear, excellent abrasion resistance, and high temperature resistance.
Chemical Properties: This filter ring demonstrates excellent chemical properties, with acid resistance, alkali resistance, and corrosion resistance.
Process Properties: The filter ring has a controlled and uniform porosity, long service life, precision-punched without burrs, compatibility with most fluids, weldability, ease of installation and removal, and it can be easily cleaned and reused.
Applications
Oil and Gas: The oil and gas industry effectively employs diffusion-bonded metal wire mesh to prevent sand in various types of formation sands and for various gravel packing applications.
Fluidization: Sintered wire mesh is used to fluidize bulk powders and solids under the most challenging conditions, such as extreme temperatures and highly corrosive environments.
Power Generation: Diffusion-bonded wire mesh maximizes the performance of power generation filtration systems, suitable for applications like reactor water purification and fuel pool purification. It also helps reduce operational costs for condensate water filters and polishing systems.
General Industry: General industry applications of sintered wire mesh include catalyst recovery, steam filtration, polymer filtration, desalination, and more.
>>
