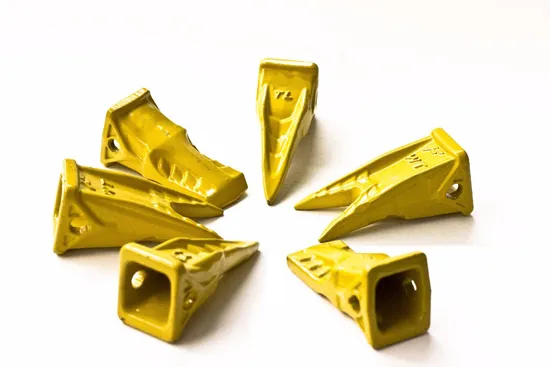

Doosan Excavator Casting Forging Bucket Tooth Point 2713-0033

Product Description

Material Specification

Material:	Carbon steel, Alloy steel,etc, such as T1,T2,T3,T4.with casting/forging process
Machine type:	Excavator, Loader,Bulldozer,etc.
Brands:	TIG / SAR
Heatment;treatmentt:	Quenching and tempering treatment
Hardness:	Teeth : HRC48-52 ,Impact value >=17J Adapters : HRC34-38 ,Impact value >=25J
Work condition:	With excellent elongation and tensile strength, suitable for many different hard working conditions.

Daewoo style standard dirt bucket tooth for an S220 series, takes a P235 pin and a 3G9549 retainer.
Quality aftermarket G.E.T. (bucket teeth) for CA-T, J-C-B, Bob-cat, Ca-se, Ko-ma-tsu, Ku-bo-ta and many others including manufacturers for all your backhoe, loader, skid steer, grader, scraper and excavator bucket tooth (teeth) needs.
STARKEA Products are Excavator bucket teeth&adapter, Grader Blades,excavator undercarriage parts, excavator buckets, slewing bearings, high strength fastners, pin&retainer, bolts&nuts, ect and customized Investment casting, die casting, sand casting, Stamping and machining parts with kinds of materials like carbon steel,Stainless steel,alloy steel, grey iron ,ductile iron ,aluminum.copper ect.
Mechanical Property

Material	Hardness	V-Norch	Tensile	Elongation	Yeild
T1	47-52HRC	akv>=16J	>=1499Mpa	>=3%	>=1040N/mm2
T2	48-52HRC	akv>=20J	>=1500Mpa	>=4%	>=1100N/mm2
T3	48-52HRC	akv>=20J	>=1550Mpa	>=5%	>=1100N/mm2

For general purpose we recommend Grade 2 which is both strong and wear long. For Grade 1 material, we reduce the alloy composition; therefore the wear life is 2/3 of Grade 2. And our Grade 3 is best material which wears 1.3 times of Grade 2.

DEAWOO BUCKET TEETH

18S/2713-9051	1.1	TEETH STANDARD	DOOSAN	DH55/S55
18S/2713-9051RC	1.1	TEETH FISH SCALE	DOOSAN	DH55/S55
2713-6052BCL/2713-1045	2.1	SIDE CUTTER	DOOSAN	2.1
2713-6052BCR/2713-1046	2.1	SIDE CUTTER	DOOSAN	2.1
2713-1221/00057/2713-1215/2713-9046	4.3	TEETH STANDARD (OLD)	DOOSAN	DH130
2713-1222/2713-9215	7.3	ADAPTOR(OLD)	DOOSAN	DH130
2713-1221A	3.7	TEETH STANDARD V	DOOSAN	DH130-5/S130
2713-1221RCL	3.8	TEETH FINSH SCALE	DOOSAN	DH130-5/S130
2713-1222	5.9	ADAPTOR	DOOSAN	5.9
2713-1228	7.8	SIDE CUTTER	DOOSAN	S130-5
2713-1229	7.8	SIDE CUTTER	DOOSAN	S130-5
2713-1217RC	6	TEETH STANDARD V	DOOSAN	DH200-5/S200/S170
2713-1217	4.6	TEETH STANDARD V	DOOSAN	DH200-5/S200/S170
2713-1217	5	TEETH STANDARD V	DOOSAN	DH200-5/S200/S170
2713-1217TL	6	TEETH TIGER V	DOOSAN	DH200-5/S200/S170
2713-9041	5.7	TEETH (OLD)	DOOSAN	DH220
2713-9041	6.45	TEETH (OLD)	DOOSAN	DH220
2713-9041RC	6.6	TEETH ROCK (OLD)	DOOSAN	DH220
2713-9041RCL	5.8	TEETH FISH SCALE OLD	DOOSAN	DH220
2713-1217RC	5.4	TEETH ROCK V	DOOSAN	DH200-5/S200/S170
2713-1217	5.8	TEETH STANDARD	DOOSAN	DH200-5/S200/S170
2713-1218	9.4	ADAPTOR	DOOSAN	DH200-5/S200/S170
2713-1218	8.75	ADAPTOR	DOOSAN	DH200-5/S200/S170
2713-9042	9.5	ADAPTOR (OLD)	DOOSAN	DH200-5/S200/S170
2713-1059	16.5	SIDE CUTTER	DOOSAN	S130 S200 S170
2713-1060	16.5	SIDE CUTTER	DOOSAN	S130 S200 S170
2713-1219	7.4	TEETH STANDARD	DOOSAN	DH290-5/S280
2713-1219-2	7	TEETH STANDARD	DOOSAN	DH290-5/S280
2713-9038/E262-3046/2713-6043	7.2	TEETH STANDARD	DOOSAN	DH280
2713-1219RC	6.9	TEETH RCOK	DOOSAN	DH290-5/S280
2713-1219RC	6.2	TEETH ROCK	DOOSAN	DH290-5/S280
2713-9038RC	8	TEETH ROCK(OLD)	DOOSAN	DH280
2713-9038RCL	6.7	TEETH FISH SCALE(OLD)	DOOSAN	DH280
2713-9037	13.5	ADAPTOR(OLD)	DOOSAN	DH280
2713-9044RC/2713-6053	8.5	TEETH ROCK(OLD)	DOOSAN	DH320
2713-9043	12.6	ADAPTOR(OLD)	DOOSAN	DH320
2713-1220	12.8	ADAPTOR	DOOSAN	DH290-5/S280
2713-1220	11	ADAPTOR	DOOSAN	DH290-5/S280
2713-1220	11	ADAPTOR	DOOSAN	DH290-5/S280
2713-1047/2713-6034	17.8	SIDE CUTTER	DOOSAN	DH290-5/S280
2713-1048/2713-6035	17.8	SIDE CUTTER	DOOSAN	DH290-5/S280
713-00032	9.6	TEETH STANDARD	DOOSAN	S330,S360
713-00032	9.2	TEETH STANDARD	DOOSAN	S330,S360
27130032RC	10.3	TEETH ROCK	DOOSAN	S330,S360
27130032RC	8.8	TEETH ROCK	DOOSAN	S330,S360
2713-1240	22	SIDE CUTTER	DOOSAN	S420
2713-1241	22	SIDE CUTTER	DOOSAN	S420
2713-0033	17.9	ADAPTOR	DOOSAN	S330,S360
2713-0033	17.1	ADAPTOR	DOOSAN	S330,S360
2713-1236RC	17.3	TEETH ROCK	DOOSAN	S420
2713-1236TL	16.2	TEETH TIGER	DOOSAN	S420
2713-1236	16.3	STANDARD TEETH	DOOSAN	S420
2713-9040/2713-6045	18.4	TEETH STANDARD(OLD)	DOOSAN	DH450
2713-9039	28	ADAPTOR(OLD)	DOOSAN	DH450
KP9005354-420	24.5	ADAPTOR	DOOSAN	S420
KP9005354/2713Y1237	24.6	ADAPTOR	DOOSAN	S420

---
