Steel C Channel Roll Forming Machine C Z U Shaped Profile Section Light Steel Keel Purlin Roll Forming Machine

Product Description

Product Description

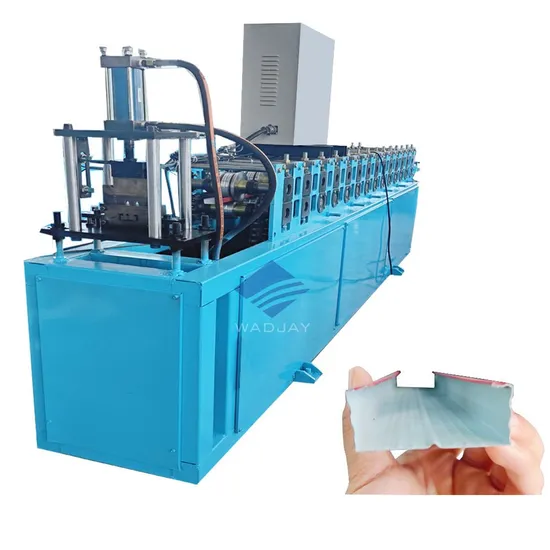

Automatic Steel C Channel CZ Light Steel Keel Roll Forming Machine
Main Specification of Steel C And U Channel Roll Forming Machine Drywall Profile Production Line

Item	Parameters
Roll stand	13
Main power (Kw)	5.5Kw
Main shaft (mm)	Ø 60
Cutter material	Cr12
Cutting accuracy	10±2mm
Punching	Optional
Hydraulic station power (Kw)	4
Control system	PLC
Size adjusting way	Spacer

Details of Steel C And U Channel Roll Forming Machine Drywall Profile Production Line
Pro-feed Coil
Frame structure: cantilever type Sheet width: less than 300mm; Coil inner diameter: φ508mm; Expansion mode: manual expansion; Inner diameter expansion range Phi 480-560 mm; Coil maximum outer diameter :φ1300mm; Carrying weight: ≤3t
Roll Forming System
Material of the roller : High grade No.45 forged steel. Roller station : 12-14 rows. Thickness of feeding material : 0.3-0.8mm
Servo Tracking Hydraulic Shear
Guillotine system developed for trouble-free and burr-free cutting made of 60 HRC hard steel.
PLC Control System
The whole line adopts PLC control, LCD display touch screen, man-machine interface
You can set any length and quantity

Packaging & Shipping

Company Profile
FAQ
Q1: How long is the warranty?
A1: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods .If needed ,we will provide free accessories Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.

Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.

Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram

Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance

Q7: How about your delivery time?
A7: Generally, It will take about 7~15 days to send goods out. The specific delivery time depends on the items and the quantity of your order

---
